F24-60 Industrial Radio Dual Joystick Crane Remote Controller
Brief introduction1.More than 10 years researching and exporting experience in radio remote control industry.
2.More than 20 people r&d working team, have the ability to research and develop new product independently.
3.Have 15 production lines.We also have many production machines such printing circuit board machine, smt
Machine, automatic wave soldering machine, automatic soldering robot, etc.Also have many testing machine.
4.Well and high quality control, all working process according to iso9001:2008.
5.Ce, fcc & iso certificates.
6.Oem acceptable
7.One year warranty
Specification
Application | Overhead cranes, hoist, chain hoist and other industrial machine. |
Frequency | 310.0325~331.165mhz |
Frequency generation: | Crystal (plug in) |
Channel | 80 |
Channel spacing | 0.2675mhz |
Control motions | 40 |
Control distance | Up to 100m |
Certificates | Ce, fcc, iso9001:2008 |
Number of push button | Dual speed joystick |
Unique code | Over 4.3billon unique id codes. |
Working temperature | -35°c ~ +80°c |
Enclosure protection class | Ip65 |
Transmitter power | Aa-size batteries |
Receiver power | Ac 380v/220v/110v/48v/ 36v/24v or ac/dc12v |
Output capacity | Full sealed relay output with 5 amperes |
Warranty | 1 year |
Material | Glass fiber |

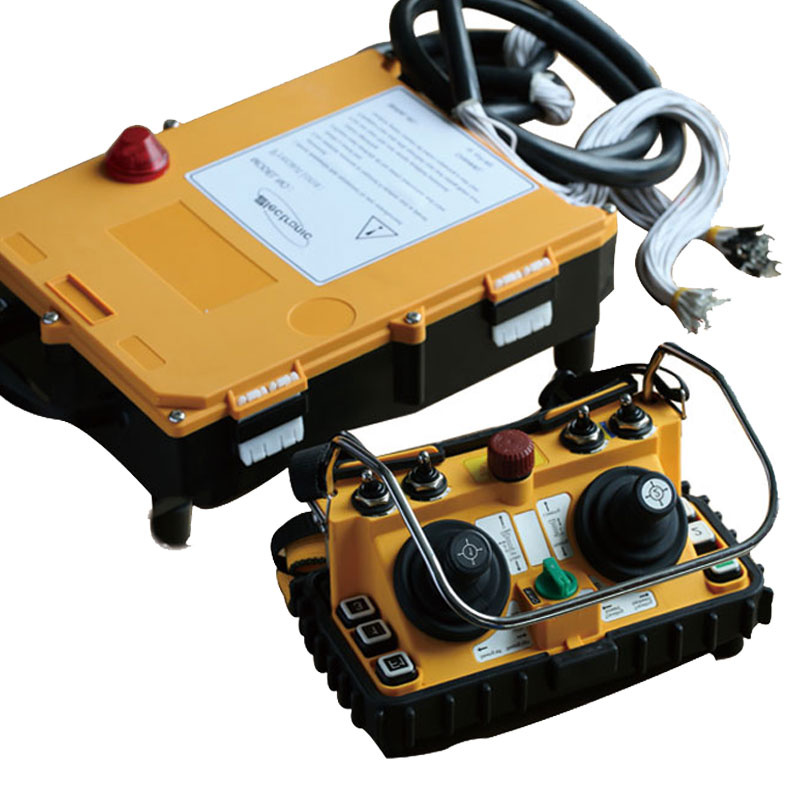

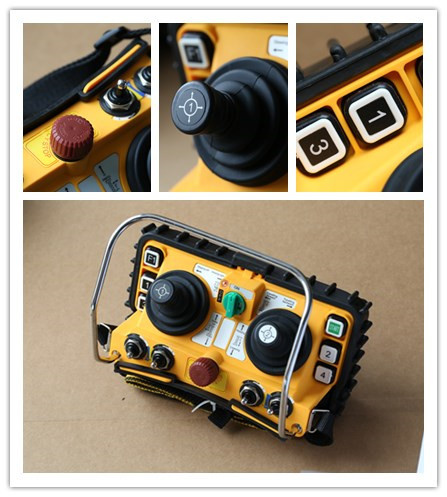

Products photos:
Standard configuration:
One transmitter;
One receiver;
One 1m cable connect with receiver
One operation and maintain manual.
application:
Widely applied for lifting equipments, construction machinery, cargo loading/unloading machines, water supply system,
Data transmission, the iron-smelting and steel-making, the automobile manufacturing, papermaking and chemical industry,
Steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipments and sites
Which can be worked by radio controls.

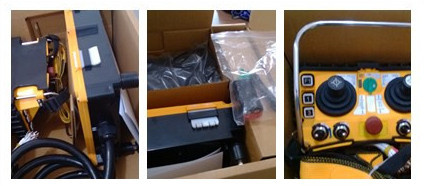

Packing:
Notes:
The led on the front of the transmitter indicates the condition of the batteries.It will flash green during operation if the battery power is sufficient, and will flash red if the battery power is low.If the led is flashing red, or if the operation becomes erratic,
Or will only work from a short distance, replace both batteries with new aa alkaline batteries.
If you are interested in our products, pls feel free to send inquiry to us
