F24-8d Telecrane Industrial Radio Remote Controls System
Price: |
US $ 300/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Money Gram |
Prod Model: |
F24-8D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Item: |
Industrial Radio Remote Controls System |
Brand Name: |
Telecrane |
Application: |
Industrial Machinery |
Signal Transmission: |
Radio Waves |
Type: |
Button |
Certification: |
CE |
Universal: |
Universal |
Transmission Distance: |
>100m |
Voltage: |
3V |
Material: |
Plastic |
Battery Type: |
AA Battery |
Product Description
F24-8D Telecrane Industrial Radio Remote Controls System Brief information:
1. More than 10 years researching and exporting experience in Radio Remote Control industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.

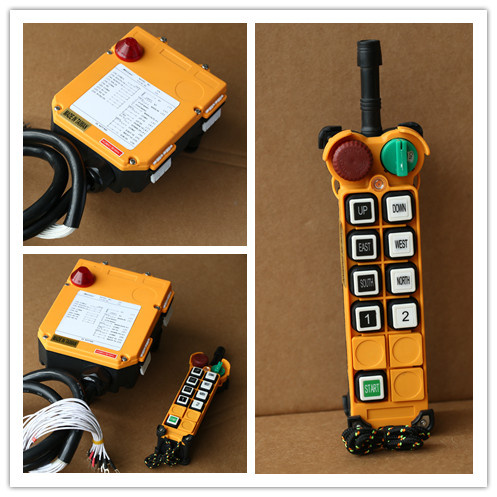

6. OEM acceptable.Photos:
Specification: Application | Overhead cranes, hoist ,chain hoist and other industrial machine. |
Frequency | 310.0325~331.165Mhz |
Frequency generation: | Crystal (plug in) |
Channel | 80 |
Channel Spacing | 0.2675MHz |
Control motions | 13 |
Control distance | Up to 100m |
Certificates | CE, FCC, ISO9001:2008 |
Number of push button | 8 Double speed push button+1 start+1 Emergency stop button. |
Unique code | Over 4.3billon unique ID codes . |
Working temperature | -35°C ~ +80°C |
Enclosure protection class | IP65 |
Transmitter power | AA-size batteries |
Receiver power | AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V |
Output capacity | Full sealed relay output with 5 amperes |
Warranty | 1 year |
Material | glass fiber |

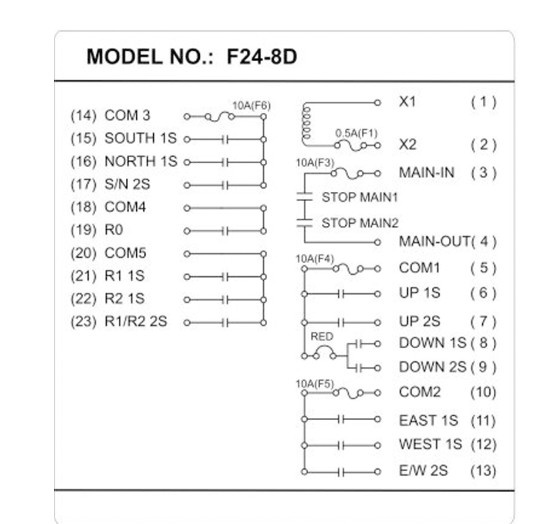

Wiring Diagram of Receiver:
Standard configuration:
One transmitter;
One receiver;
One 1.8 m cable connect with receiver;
One operation and maintain manual.
Products Features:
* 8Dual speed push button+1start button+1 Emergency stop button.
* Control points are up to 13.
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* With the Rotate key switch to guarantee the safety.
* Set the internal functions by computer interface.
* Up/down, east/west, south/ north push button can be set mutual inhibition or not.
* Power button can be set start, speed up, jump strokes, ordinary etc.

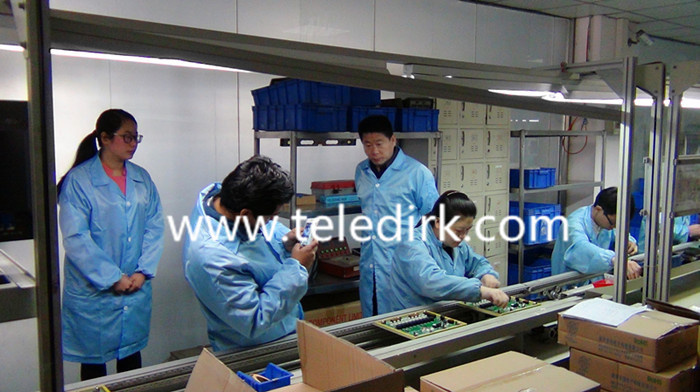

* Spare 1-2, key can be set ordinary, interlock, jump strokes, switch etc. Products Application: MD double speed electric hoist or double speed electric chain hoist with hook,monorails ,double hook /single speed hoist crane, and used for the industrial remote control which are under16 connections.Customer visit Factory:
Certificates:
If you are interest this products; please feel free to contact us
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
