Factory Customized Made Indoor DIN Standard Fuse for Motor Protection

Name: Factory Customized Made Indoor DIN Standard Fuse for Motor Protection
Brand: all-electronics-online.com
SKU: 835617885
Availability: InStock
Rating: 4.7 (43 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

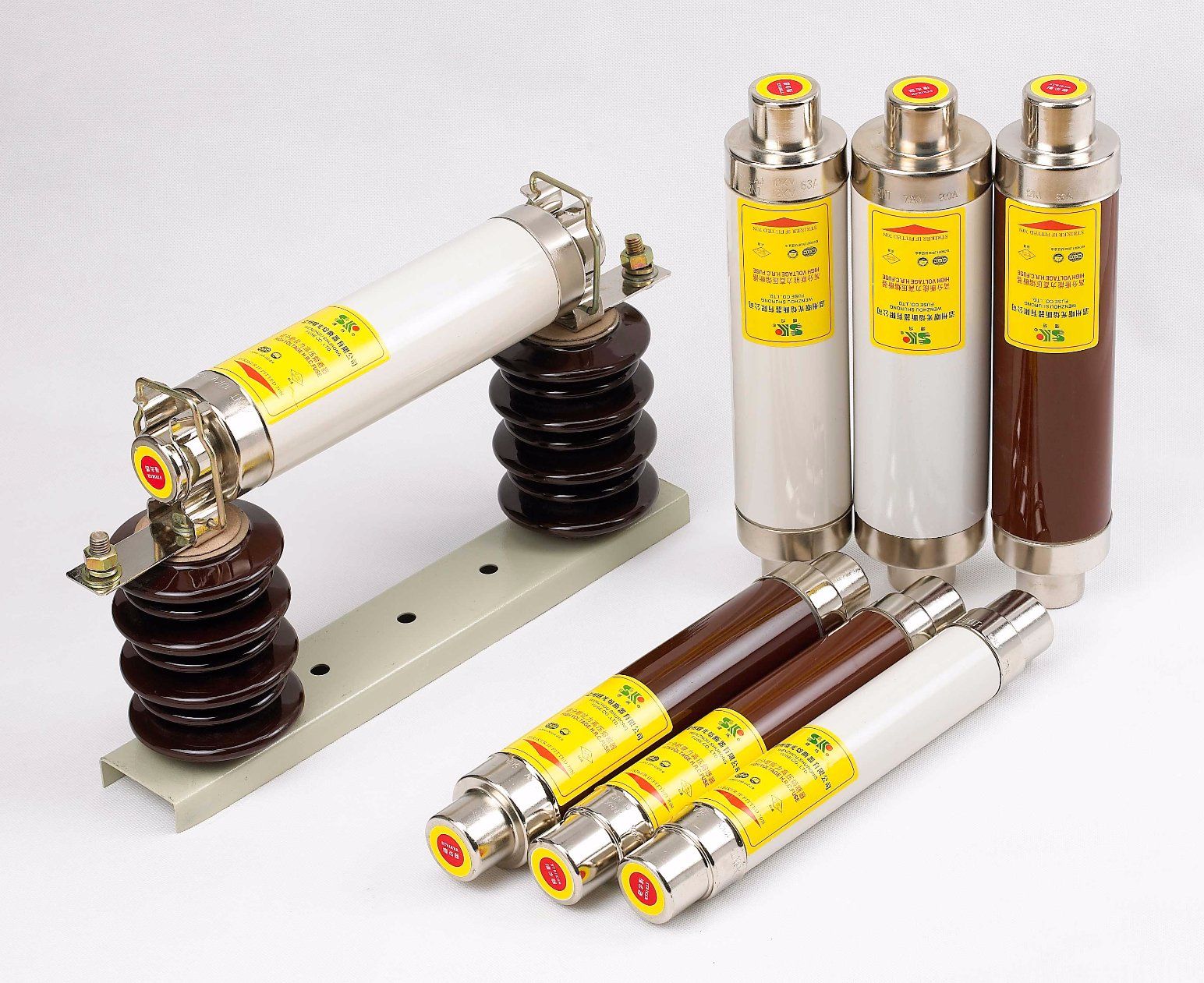

Factory customized made indoor DIN standard fuse for motor protection

Product Description

1.H.V current-limiting fuses type W is designed for protection of motors or other power equipments working under a voltage of 3.6kV, 7.2kV, 50Hz, and with a rated current up to 224A from overloading or shortcircuit. It can also be used with load switch, vaccum contact.

2.It conforms to IEC282-1, IEC 644, BS and GB 15166.2

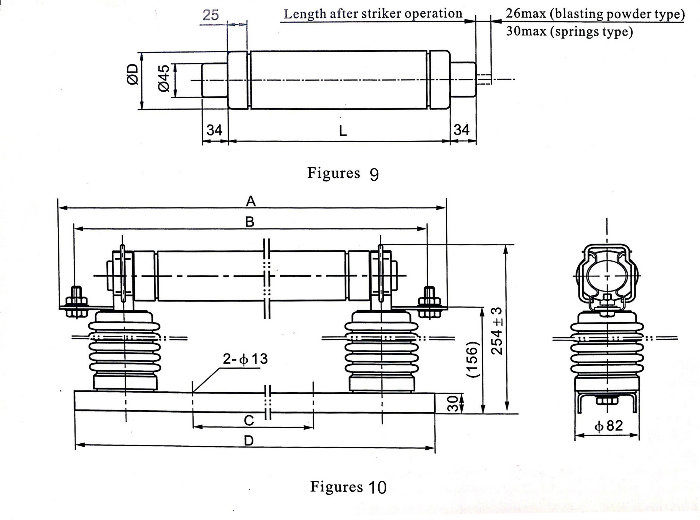

Specifications

TYPE	RATED VOLTAGE(KV)	RATED CURRENT(A)	LENGTH	DIAMETER	RATED CUTOFF CURRENT(KA)
WDL*J	7.2/12	25,31.5,40,50,63	292	51	50
WFL*J	7.2/12	50,63,80,100		76
WKL*J	7.2/12	125,160		76
WXL*J	7.2	160,200,224		88
	7.2	250,315
	12	160,200
WFN*J	7.2	25,31.5,40,50,63,80,100,125	403	76
WFN*J	12	25,31.5,40,50,63,80,100	600
WFN*J	7.2	160,200,224,250,315
WFN*J	12	125,160
WXN*J	12	200		88
WFM*J	7.2	25,31.5,40,50,63,80,100,125	442	76
WFM*J	12	25,31.5,40,50,63,80,100
WKM*J	7.2	160,200,224,250,315
WKM*J	12	125,160

Company Information

Wenzhou Shuguang Fuse Co.,ltd with ISO900 is one of the largest professional manufacturers in High voltage and Low-voltage
electrical appliances,especially specialized in different types of high & low voltage fuse, fuse cutout, arrester, insulator and so on.
With the long-term efforts of our whole employees,we have accumulated rich experience in design and production. We Beieve that
quality is the soul of an enterprise,so we always put quality as the first consideration.Professional technicists and experienced
staff make sure our quality is the best.

Trade Terms

1. Payment : Irrevocable L/C at sight or TT

2. Delivery time and method: Usually within 30 days

3. Port of loading: NINGBO, SHANGHAI (CHINA)

4. MOQ: 100PCS

5. Package: Standard export packing or as per your requirement.

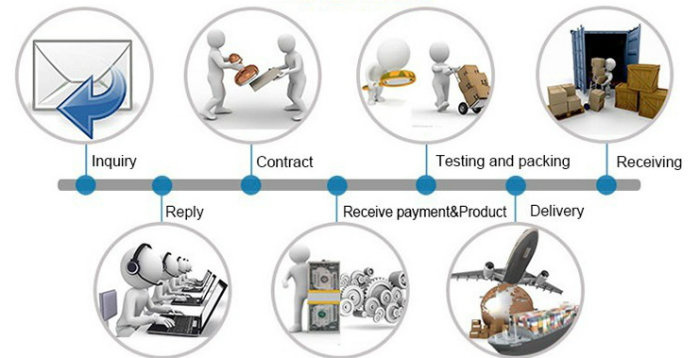

Trading Process

Contact Us

Prod Model:	WKF*O-3.6
Diameter:	76/88/51mm
Length:	292/403/600/440mm
Rated Voltage:	7.2/12kv
Rated Current:	25-315A
Rated Cutoff Current:	50ka
Breaking Capacity:	High
Usaga:	High Voltage
Type:	Current-Limiting Fuse
Standard:	GB15166.2,IEC282-1,BS
