Good price BS standard W Type busbar installation Fuse

Product Description

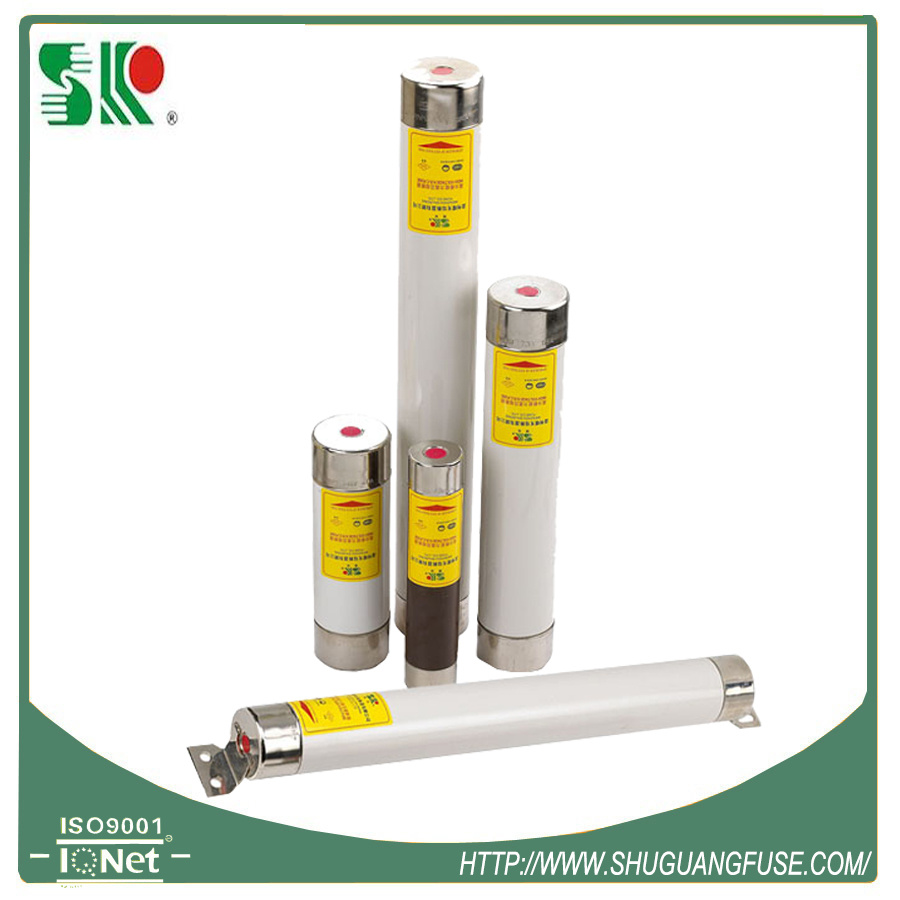

1.H.V current-limiting fuses type W is designed for protection of motors or other power equipments working under a voltage of 3.6kV, 7.2kV, 50Hz, and with a rated current up to 224A from overloading or shortcircuit. It can also be used with load switch, vaccum contact.

2.It conforms to IEC282-1, IEC 644, BS and GB 15166.2

Specifications

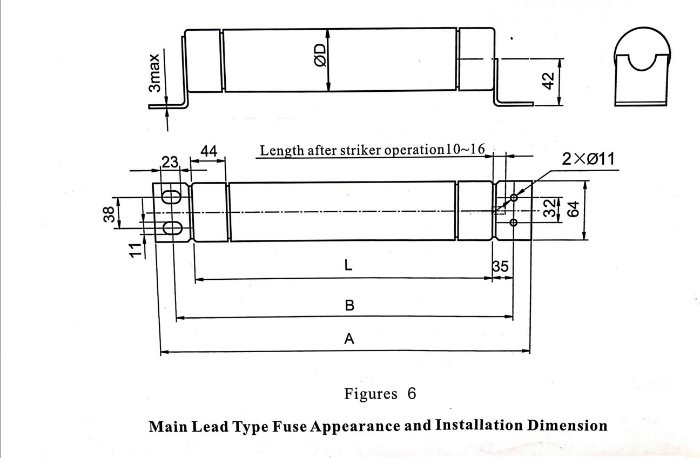

a. Main Lead Type Fuse Appearance and Installation Dimension

TYPE	RATED VOLTAGE(KV)	RATED CURRENT(A)	LENGTH	DIAMETER	RATED CUTOFF CURRENT(KA)
WDF*O	3.6	50,63,80,100,125	254	51	50
WFF*O		125,160,200		76
WKF*O		250,315		76
WJF*O		355,400		88
WFN*O	7.2	25,31.5,40,50,63,80	403	76
WFE*O		100,125,160
WFN*O		200,224,250,315,355
XRNM1-12	12	25,31.5,40,50,63,80,100	600	76
XRNM	12	125,160,200,224	600	76

A	B	L	DIMENSION	REMARKS
337	305	254	51	3.6KV/50-125A
337	305	254	76	3.6KV/125-315A
337	305	254	88	3.6KV/355-400A
486	454	403	76	7.2KV/25-355A
683	651	600	76	12KV/25-224A

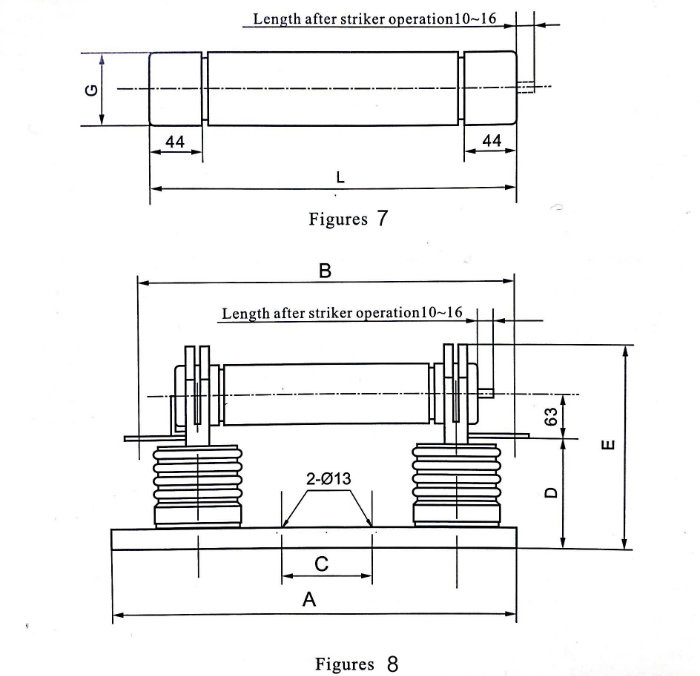

b. Plug-in Type Fuse Appearance And Installation Dimension

A	B	L	DIMENSION	REMARKS
390	312	340	140	3.6KV/50-400A
500	461	150	160	7.2KV/25-315A
690	659	350	160	12KV/63-224A

Company Information

Wenzhou Shuguang Fuse Co.,ltd with ISO900 is one of the largest professional manufacturers in High voltage and Low-voltage
electrical appliances,especially specialized in different types of high & low voltage fuse, fuse cutout, arrester, insulator and so on.
With the long-term efforts of our whole employees,we have accumulated rich experience in design and production. We Beieve that
quality is the soul of an enterprise,so we always put quality as the first consideration.Professional technicists and experienced
staff make sure our quality is the best.

Trade Terms

1. Payment : Irrevocable L/C at sight or TT

2. Delivery time and method: Usually within 30 days

3. Port of loading: NINGBO, SHANGHAI (CHINA)

4. MOQ: 100PCS

5. Package: Standard export packing or as per your requirement.

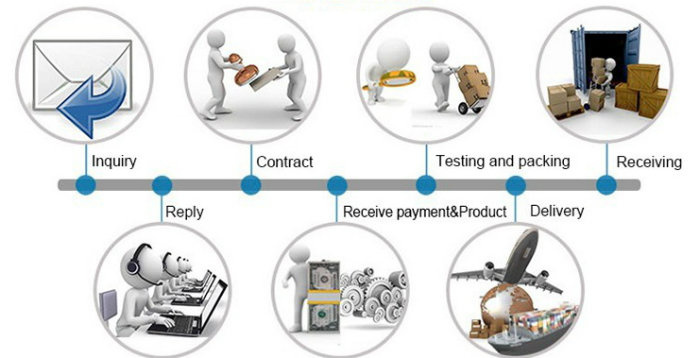

Trading Process

Contact Us

Prod Model:	WDF*O-3.6
Diameter:	76/88/51mm
Length:	254/403/600mm
Rated Voltage:	3.6/7.2/12kv
Rated Current:	50-400A
Rated Cutoff Current:	50ka
Breaking Capacity:	High
Usaga:	High Voltage
Type:	Current-Limiting Fuse
Standard:	GB15166.2,IEC282-1,BS
