| Prod Model: |
GS-LFD3015 |
| Service Provid: |
Engineers Overseas Installation Training Services |
| Product Name: |
Factory Sales Fiber Laser Cutting Machine |
Product Description

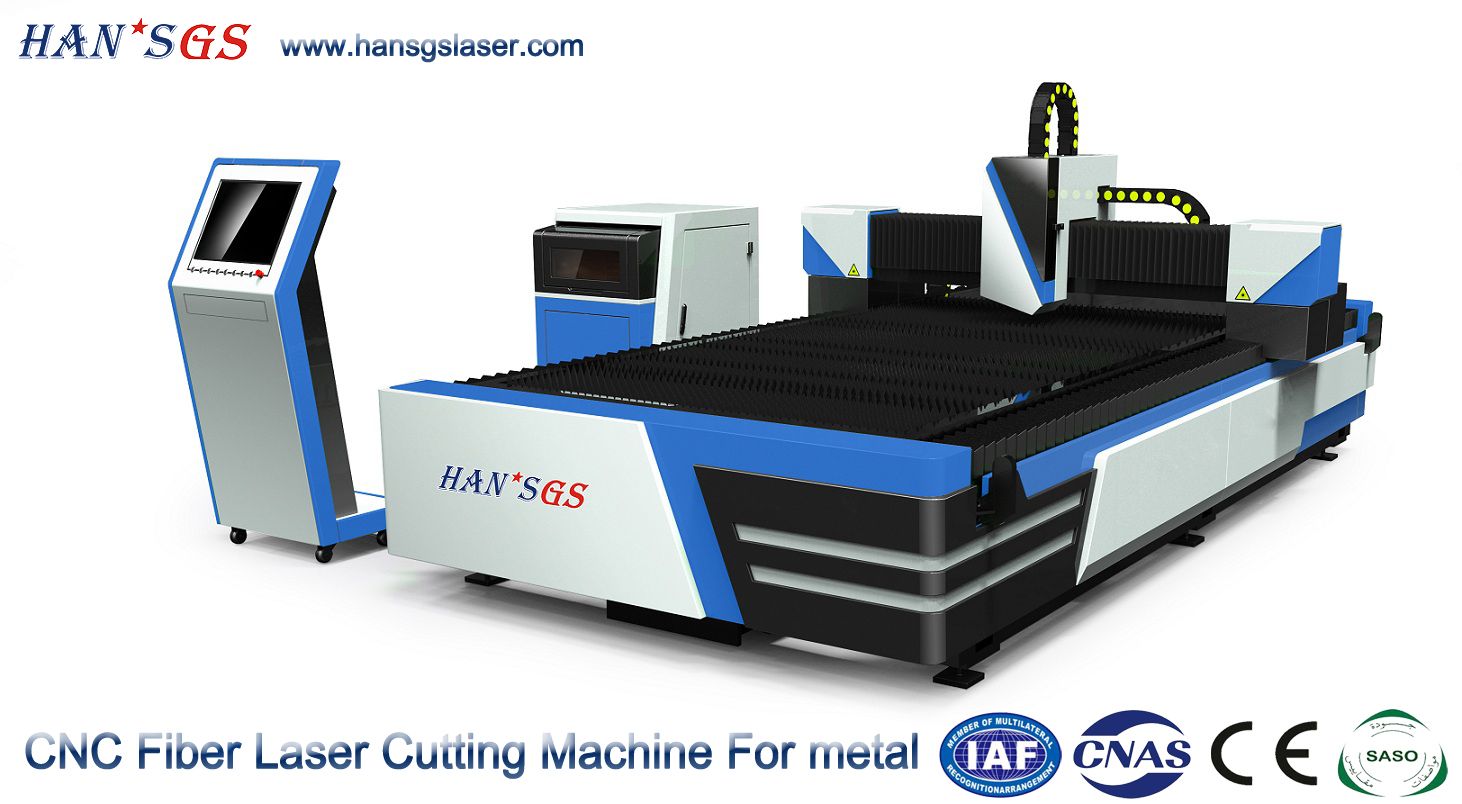

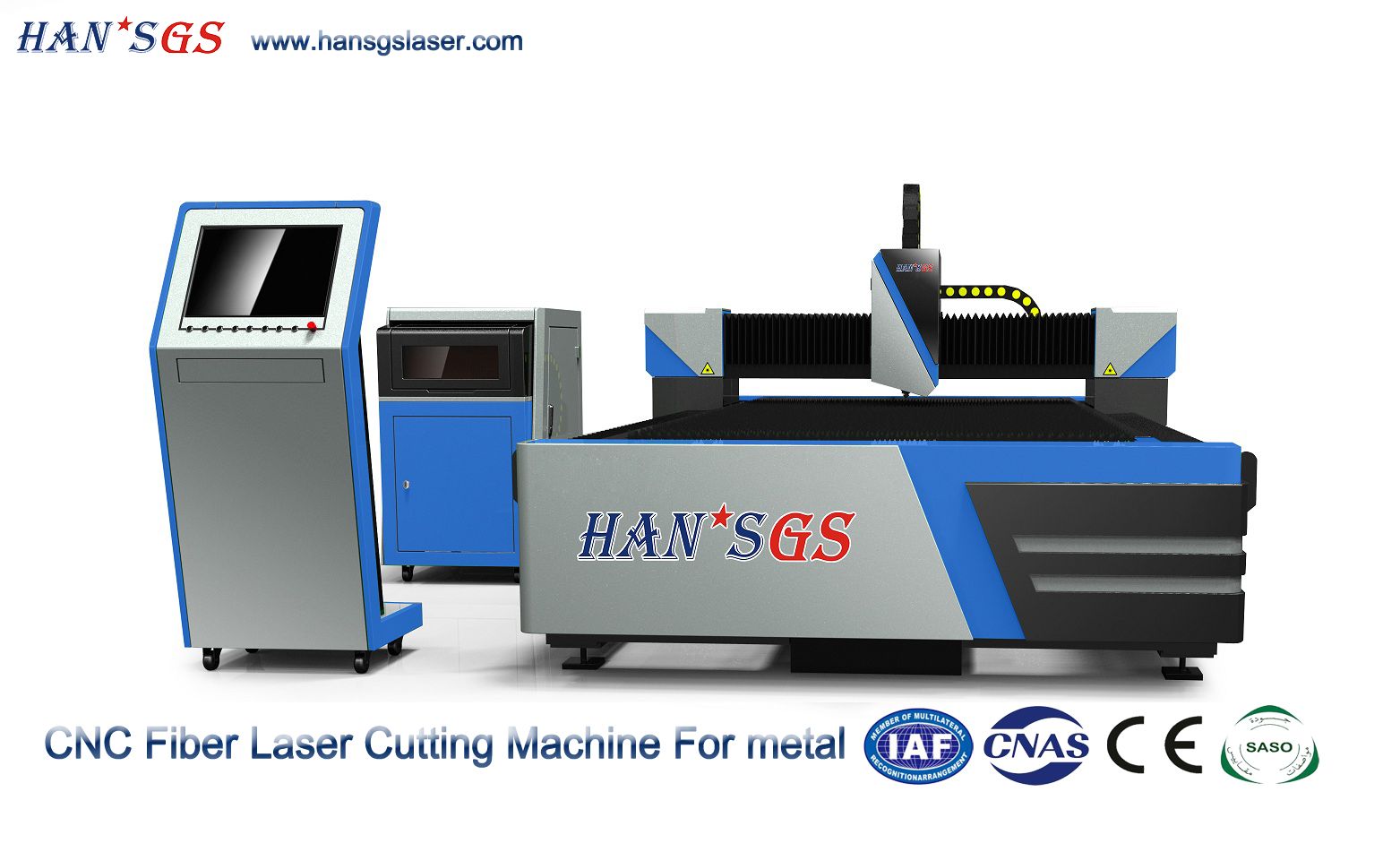

Factory Sales Fiber Laser Cutting Machine
Fiber Laser cutting machine is widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.
GS-LFD3015 laser cutting machine is Fiber Laser cutting machine.It's the best-selling products of our company,The technology of the machine is mature and stable, the design of smooth and generous, high cost performance.
GS-LFD3015 Technical Parameters(Laser Source Power/Cutting ability)
| Laser Source Power/Cutting ability | CS(mm) | SS(mm) | Alumium(mm) | Brass(mm) |
| 500W | Max cutting thickness | 8 | 4 | 2 | 2 |
| Max processing thickness | 5 | 3 | | |
| 700W | Max cutting thickness | 10 | 6 | 3 | 3 |
| Max processing thickness | 6 | 5 | | |
| 1000W | Max cutting thickness | 14 | 8 | 4 | 4 |
| Max processing thickness | 8 | 6 | | |
| 1500W | Max cutting thickness | 16 | 10 | 6 | 5 |
| Max processing thickness | 12 | 8 | | |
| 2000W | Max cutting thickness | 20 | 12 | 8 | 6 |
| Max processing thickness | 16 | 10 | | |
| 2500W | Max cutting thickness | 22 | 12 | 10 | 8 |
| Max processing thickness | 20 | 10 | | |
| 3000W | Max cutting thickness | 25 | 14 | 12 | 8 |
| Max processing thickness | 22 | 12 | | |
GS-LFD3015 Technical Specifications
| Model | GS-LFD3015 |
| Laser source medium | Fiber |
| Cutting range (L*W) | 3000 mm * 1500 mm |
| Z axle stroke | 250 mm |
| Max. positioning speed | 120 m/min |
| X, Y axle Max. accelerate speed | 1.2 G |
| Cooling form | water cooling |
| Laser wavelength | 1070nm |
Output power of laser source | 500w |
| Min. cutting gap | ≤ 0.1 mm |
| Positioning accuracy of X, Y and Z axles | ± 0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.01mm |
| Thickness of cutting material (according to material) | 0.2 - 25 mm |
| Drive model | Imported servo motor |
| Power requirement | 380 V, 50/60 Hz |
| Working temperature | 5 - 45ºC |
| Continuous working time | 24 Hours |
| Machine weight | About 5850Kgs |
| Outer dimension | 8500 mm * 3800 mm * 2000 mm |
| Total protection level of power supply | IP54 |

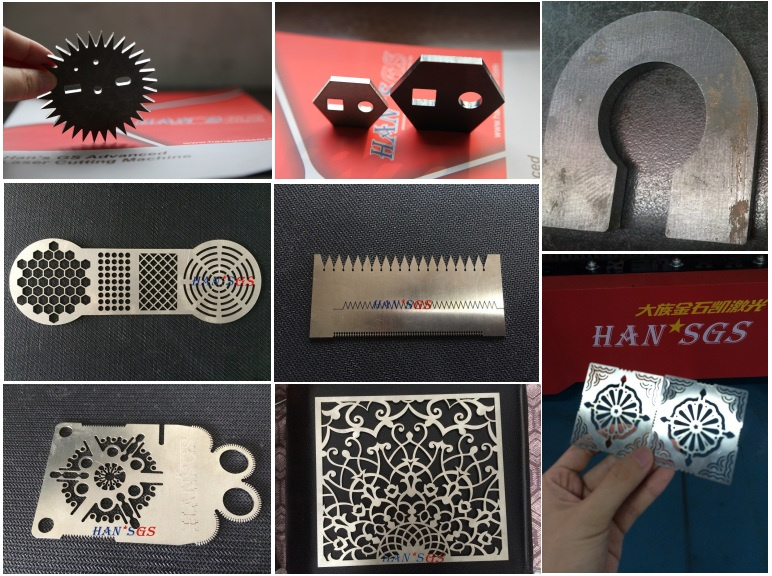

Cutting Simples
It is used to cut Metal,such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel,galvanize plate, pickled plate, copper plate, aluminum plate, etc.We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.

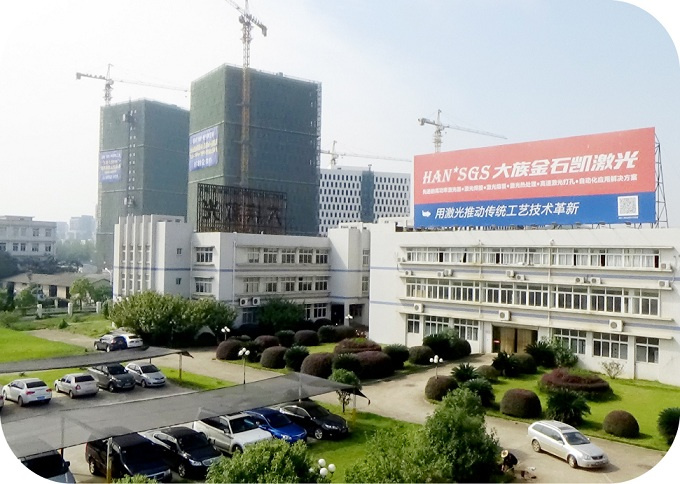

Our Company
WUHAN HANS GOLDENSKY LASER SYSTEM CO., LTD. is a subsidiary of Han's Laser, located in East Lake High-tech Development Zone, "China Optical Valley",Wuhan. It's subsidiary company of HAN'S Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
Our Team

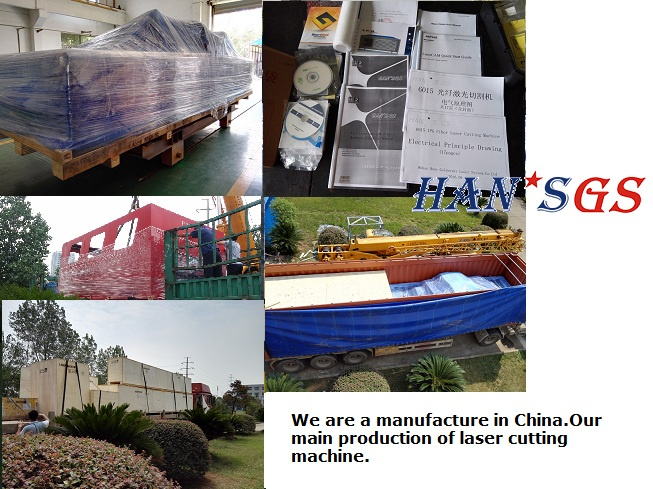

Packing & Delivery
We have 20 years of experience in laser equipment production,The main products are laser cutting machine, laser welding equipment, laser perforating equipment, laser cladding equipment.
Welcome come to our factory.
