| Prod Model: |
KA-S01B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
2 Years |
| Samples Delivery Time: |
Within 2 Days |
| Bulk Order Deliver Time: |
Within 20 Days |
| Package: |
Customized Color Box or Blister |
| Rated Load: |
1200W Max. |
| Detection Distance: |
6m |
| Delaying Time: |
10 Seconds to 7 Minutes |
| Detection Degree: |
360 Degree |
| Type: |
Infrared Sensor Switch |
| Principle: |
Infrared |
| Wires: |
PNP (',Three-Wires) |
| Standard: |
Standard |
| Certification: |
CE |
| Application: |
Corridor, Warehouse,Garage,Toilets etc. |
Product Description
KA-S01B Ceiling sensor switch specifications:1) Power source:100V/AC-130V/AC,220V/AC-240V/AC
2) Power frequency:50/60HZ
3) Rated load:800W(100-130V/AC),1200W(220-240V/AC)
4) Detection range:360 degree
5) Light control:3-2000LUX(adjustable)
6) Time delay:10sec to 7min(adjustable)
7) Detection distance:6m
8) Installation height:2m-4m
9) Detection speed:0.6-1.5m/s
Package:
1) White box or customized color box
2) Carton size: 50.5*39*38cm
3) Gross weight:15.6KGS
4) Quantity/carton:60pcs
Product introduction:
KA-S01B is a new type of energy-saving lighting switch, it adopts high sensitivity detector, integrate circuit and SMT; It gathers automatic, convenient, safe, energy-saving, practical functions; It has wide detection range made up of up and down, left and right service field; It utilizes human motion infrared rays as control signal sources, when one enters the detection field, it will start the controlled load at once; It can identify day and night automatically; It is easy to install and its usage is wide; It has the function of power indication and detection indication.
KA-S01B function:
1) Detection field: The wide detection range is made up of up and down, left and right (see the following diagram),but the moving orientation in detection field has great relation with the sensitivity;
2) Identify day and night automatically: The ambient light of KA-S01B could be adjusted according to your desire: when turn to SUN (max), it will work day and night, when turn it to MOON (min), it will only work in the ambient light less than 3LUX. As for adjustment, please refer to testing way;
3) Time-delay is added continually: When it receives the second induction signals after the first induction, it will compute time once more on the rest of the first time-delay basis (set time);
4) Time-delay is adjustable: It can be set according to your desire, the minimum is 5s±1s,the maximum is 7min±1min.

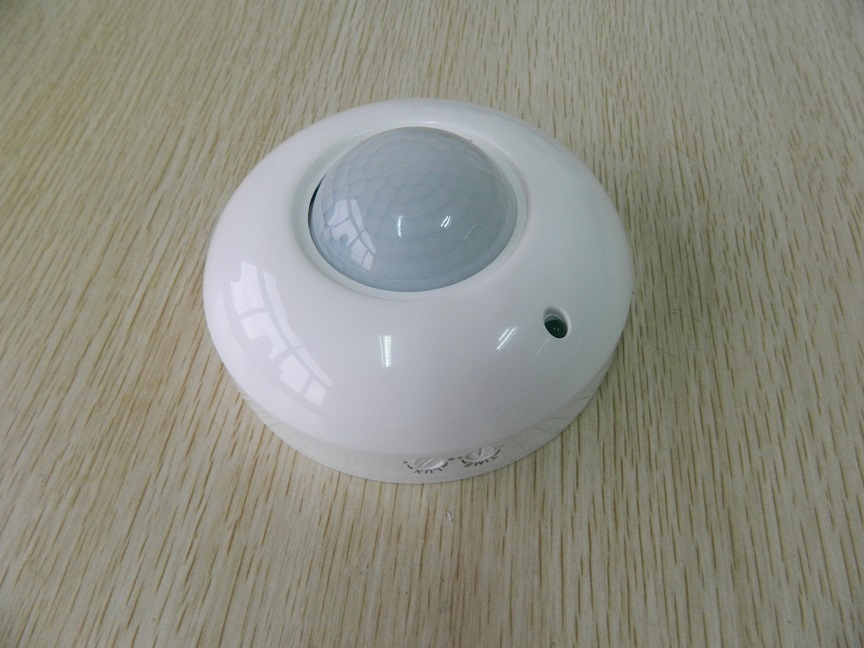

KA-S01B Actual Photo:
