Three Detectors Ceiling Mount High Quality Infrared Sensor (KA-S02B)

Name: Three Detectors Ceiling Mount High Quality Infrared Sensor (KA-S02B)
Brand: all-electronics-online.com
SKU: 707716235
Availability: InStock
Rating: 4.3 (59 reviews)

Price:	US $ 2.1-5.1/Piece
Trade Terms:	others
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

KA-S02B Three Detectors Ceiling Mount High Quality Infrared Motion Sensor Switch specifications:
1. Power source: 220V/AC-240V/AC; 100V/AC-130V/AC
2. Power frequency: 50/60Hz
3. Time delay: Min. 8± 3sec.; Max. 7± 2min
4. Detection angle: 360°
5. Ambient light: < 3LUX-daylight
6. Working temperature: -10-+40º C
7. Detection distance(22º C): Max. Diameter 16m
8. Rated load: 1200W (220-240V/AC); 800W (110V/AC); 3000W(220-240V/AC); 1500W (110V/AC)
9. Power consumption: 0.45W(static 0.1W)
10. Installation height: >3m
11. Detection motion speed: 0.6-1.5m/s
12. Working humidity: < 93%RH
13. Switch Function: Auto/Off/Manual Override
14. THREE DETECTOR INSIDE.

Product description:
Welcome to using KA-S02B infrared motion sensor switch
The product is a new saving-energy switch, it adopts good sensitivity detector, integrated circuit and SMT. It gathers automatism, convenient safe, saving-energy and practical functions. Three detectors inside compose a wide range detection field, it utilizes the infrared energy from human as control-signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely, possessing the functions of power show and detecting show.

KA-S02B Dimension:

KA-S02B Detection:

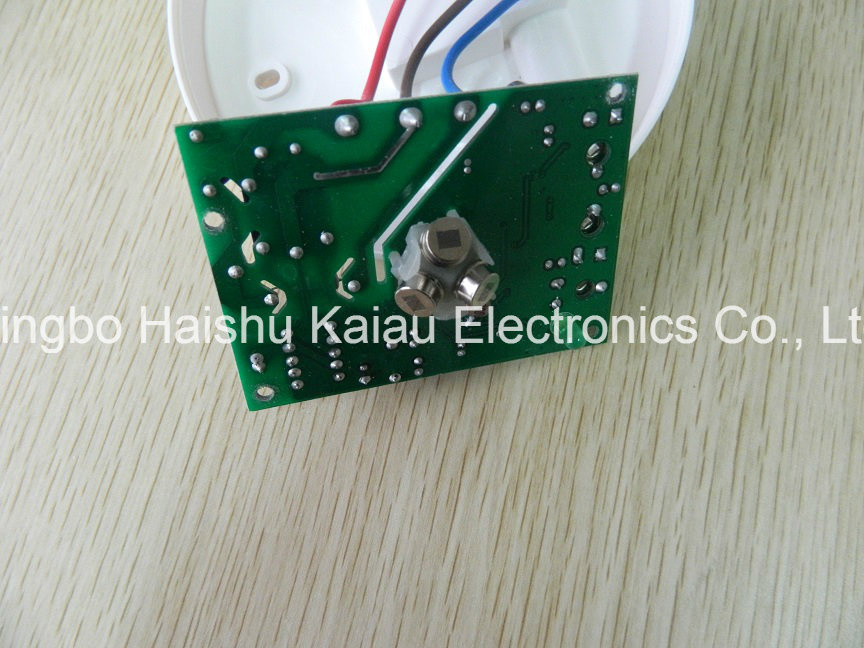

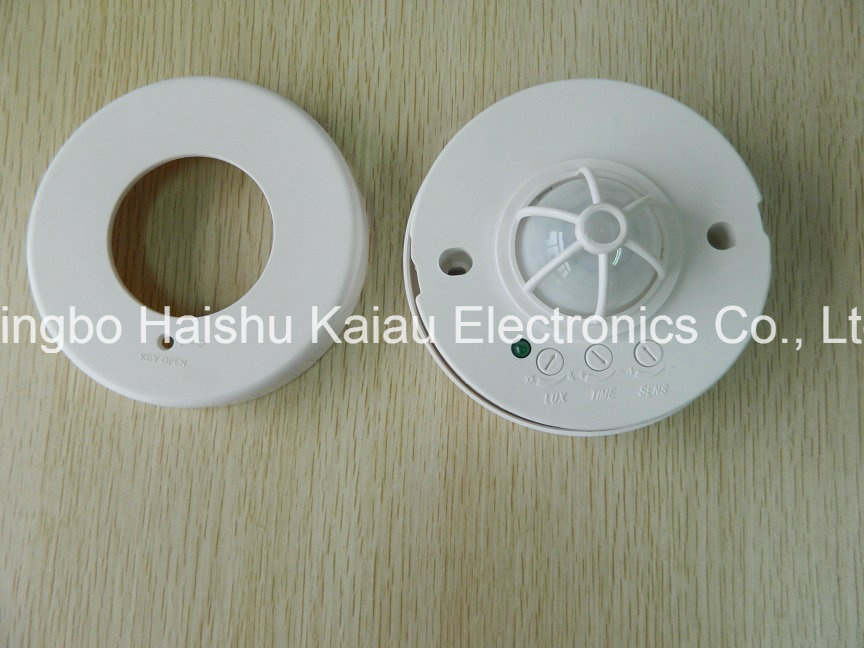

KA-S02B Actual Photos:

Prod Model:	KA-S02B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	Two Years
Samples Delivery Time:	Within 2 Days
Bulk Order Delivery Time:	Within 25 Days
Output:	Switching Sensor
Usage:	Light Sensor
Theory:	Infrared Sensor Switch
Function Type:	Infared Motion Sensor
Detection Type:	PIR Sensor
Material:	PC
Certification:	Ce, RoHS
