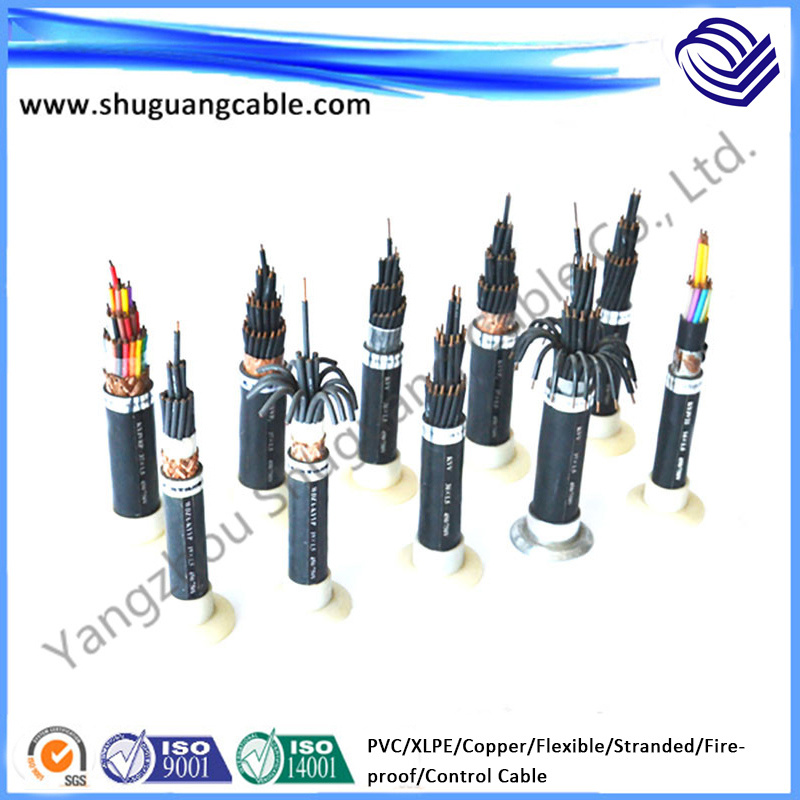

Fireproof/Flexible/XLPE Insulated/PVC Sheathed/Control Cable
| Price: |
US $ 7/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T |
Fireproof/Flexible/XLPE Insulated/PVC Sheathed/Control Cable1. Applicable Standard:
GB 9330-2008, IEC 227
2. Product Usage
Suitable for control circuit,monitored circuit and protective circuit under rated voltage U0/U of 450/750V, 0.6/1kV and below
3. Application Properties
Rated voltage U0/U:450/750V,0.6/1kV
Operating Temp:For general type,it should not exceed 70ºC
For XLPE type,it should not exceed 90ºC
The Lowest Ambient Temperature:For fixed laying -40ºC For Unfixed laying -15ºC
The Shortest Bend Radius:For cables without armor ≥ 6X outer diam.
For cables with armor≥ 12X outer diam.
4. Production Range:| Types | Conductor Section(mm2) |
| 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 |
| Core Number |
| KVV,KVVP | - | 2-61 | 2-14 | 2-10 |
| KVVP2,KVVP3 | - | 4-61 | 4-14 | 4-10 |
| KVV22 | - | 7-61 | 4-61 | 4-14 | 4-10 |
| KVVP2-22 | - | 7-61 | 4-61 | 4-14 | 4-10 |
| KVV32 | - | 19-61 | 7-61 | 4-14 | 4-10 |
| KVVR | - | 2-61 | - | - |
| KVVRP | 2-61 | 2-48 | - | - |
| Types | Conductor Section(mm2) |
| 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 |
| Core Number |
| KYJV KYJVP KYJY KYJYP | 2-61 | 2-14 | 2-10 |
| KYJVP2 KYJVP3 KYJYP2 KYJYP3 | 4-61 | 4-14 | 4-10 |
| KYJV22 KYJY23 | 7-61 | 4-61 | 4-14 | 4-10 |
| KYJVP2-22 KYJYP2-23 | 7-61 | 4-61 | 4-14 | 4-10 |
| KYJV32 KYJY33 | 19-61 | 7-61 | 4-14 | 4-10 |
5. Types & Description| Number | Types | Products Descriptions | Scope of Application |
| 1 | KVV | Cu core PVC insulated and sheathed control cable | Applicable for weak current systems or areas of intense electromagnetic interference. |
| 2 | KVVP | Cu core PVC insulated and sheathed Cu wire braid screened control cable |
| 3 | KVVP2 | Cu core PVC insulated and sheathed Cu tape screened control cable |
| 4 | KVV22 | Cu core PVC insulated and sheathed steel tape armoured control cable |
| 5 | KVVR | Cu core PVC insulated and sheathed control soft cable |
| 6 | KVVRP | Cu core PVC insulated and sheathed Cu wire braid screened control soft cable |
| 7 | KVVP2-22 | Cu core PVC insulated and sheathed Cu tape Screened steel tape armoured control cable |
| 8 | KVV-1 | Cu core PVC insulated and sheathed control cable | Mainly applied in 500kV substation,distribution equipments of power plants and areas of intense electiomagnetic interference. |
| 9 | KVV22-1 | Cu core PVC insulated and sheathed steel tape armoured control cable |
| 10 | KVVP2-22-1 | Cu core PVC insulated and sheathed Cu tape screened steel tape armoured control cable |
| 11 | KYJVP2-22-1 | Cu core XLPE insulated PVC sheathed Cu tape screened steel tape armoured control cable |
| 12 | KYJV22-1 | Cu core XLPE insulated PVC sheathed steel tape armoured control cable |
| 13 | KYJV | Cu core XLPE insulated PVC sheathed control cable | Owning an excellent electric property and being able to resist chemical corrision,these products are applicable for zones of heavy-loading and adverse enviroment. |
| 14 | KYJVP | Cu core XLPE insulated PVC sheathed Cu wire screened control cable |
| 15 | KYJVP2 | Cu core XLPE insulated PVC sheathed Cu tape screened control cable |
| 16 | KYJV22 | Cu core XLPE insulated PVC sheathed steel tape armoured control cable |
| 17 | KYJVR | Cu core XLPE insulated PVC sheathed control soft cable |
| 18 | KYJVRP | Cu core XLPE insulated PVC sheathed Cu wire screened control soft cable |
| 19 | KYJVP2-22 | Cu core XLPE insulated PVC sheathed Cu tape screened steel tape armoured control cable |
| 20 | KYV | Cu core Polythene insulated PVC sheathed control cable | Owning high insulation resistance,strong water resisting ability and good cold resistant property.Applicable for moist area and low laying temperature. |
| 21 | KYVP | Cu core Polythene insulated PVC sheathed Cu wire braid screened control cable |
| 22 | KYVP2 | Cu core Polythene insulated PVC sheathed Cu tape screened control cable |
| 23 | KYV22 | Cu core Polythene insulated PVC sheathed Steel tape armoured control cable |
| 24 | KYV32 | Cu core Polythene insulated PVC sheathed thin steel wire arnoured control cable |
| 25 | KYVR | Cu core Polythene insulated PVC sheathed control soft cable |
| 26 | KYVRP | Cu core Polythene insulated PVC sheathed Cu wire braid screened control soft cable |
| 27 | KYVP2-22 | Cu core Polythene insulated PVC sheathed Cu tape screened steel tape armoured control cable |

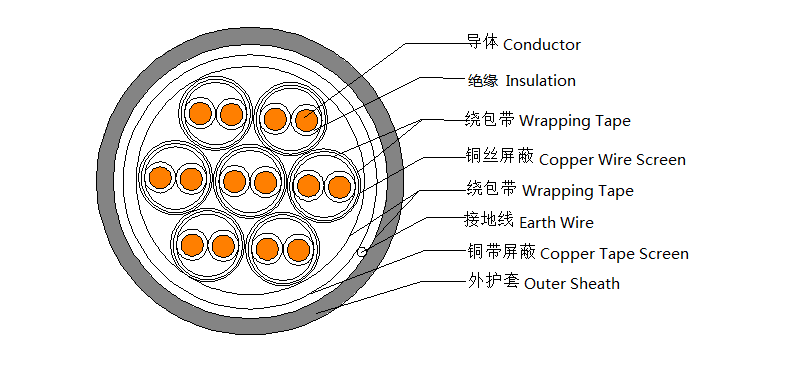

6. Cable Structure
7. Qualification for Product Material | Items | Unit | Qualification | Executive standard |
| Air temperature | ºC | 200±3 | GB/T2951.5-97 |
| Time for managing conditional load | min | 15 |
| Mechanical capability | N/cm2 | 20 |
| Max extensibility | % | 175 |
| Permanent max extensibility after being cooled | % | 15 |
8.Screening control ratio| Type | KVVP | KVVP2 | KVVRP | KVVRP2 | KVVP2-22 | KVVP3 |
| Screening control ratio≤ | 0.01 | 0.01 | 0.01 | 0.01 | 0.005 | 0.06 |
| Prod Model: |
KVV, KVVPR, KVVP2-22, KVV22, KVV32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applied Standard: |
GB/T 9330-2008,IEC 227 |
| Rated Voltage: |
450/750V,0.6/1kv |
| Insulation: |
PVC,XLPE,PE |
| Armoured: |
Steel Tape,Thin Steel Wire |
| Sheathed: |
PVC |
| Core Number: |
2-61 |
| Cross Section: |
0.75-10mm2 |
| Fire Resistance: |
Available, as Per Customer's Requirement |
| Flame Retardant: |
Available, as Per Customer's Requirement |
| Waterproof: |
Available, as Per Customer's Requirement |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
IEC |
| Application: |
Control |
| Range Of Application: |
Control |
| Brand: |
Qiangling |

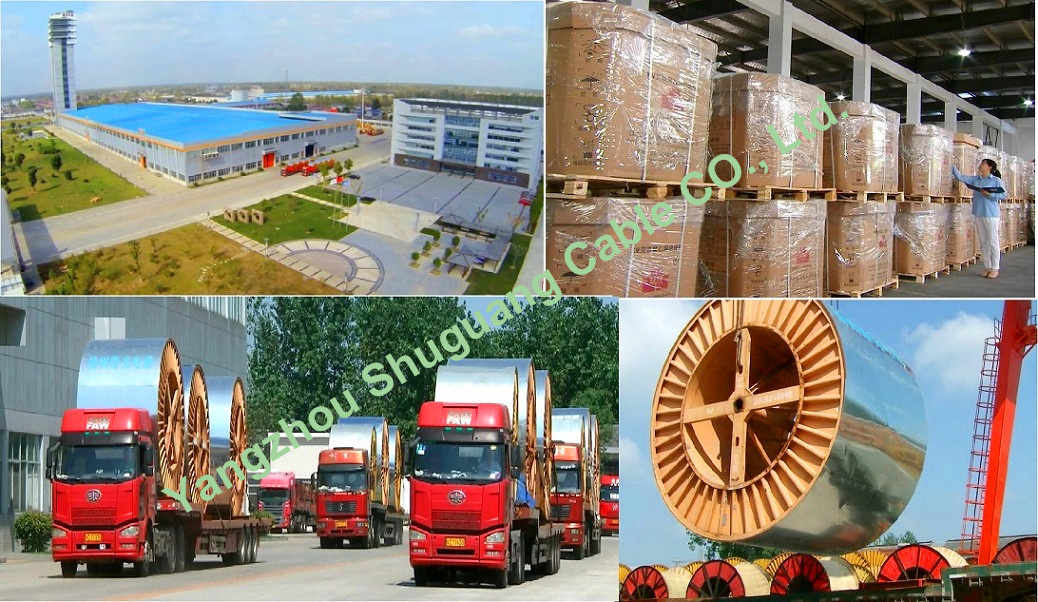

Yangzhou Shuguang Cable Co., Ltd, was founded in 1985, a specialized wire and cable manufacturer lies in the northern suburb of famous and beautiful Yangzhou city with long history and culture.It is a "State-Grade Key High-Tech Enterprise", one of the "Top Hundred Chinese Electronic Information Enterprises", "Grade AAA Credit Enterprise", one of the enterprises who "Respects Contract and Keep Faith in Jiangsu province, "Excellent Provincial Private-Owned Enterprise", "Provincial Enterprise with Harmonious Labor Relations", and it obtained the first "Mayor Quality Award" in 2010.The series of "QIANG LING" branded cable products were awarded the "State Quality Inspection Exemption" and "Jiangsu Provincial Famous Brand".
With 92,000 square meters structure area in total 280,000 facility square meters, RMB 780 million Yuan self-owned net assets and nearly 800 workers and staffs, Shuguang took lead into passing ISO9001 Quality Management System in 1996, and successively passed Products Safety Certification, ISO14001 Environmental Management System, GB/T28001 Occupation Health & Safety Management System and ISO10012 Measurement Management System.We standardized our work process by adopting ERP Management System.
We provide more than 20 series of products including:Up to 500kV and 220kV cross-linking power cables, plastic cable, overhead insulated wire, shielded control and computer cable, irradiation cross-linking cable, Grade 1E Class K3 cable for nuclear power station, mine safety cable, rubber cable, wind energy cable, direct current cable, compensation cable, high temperature resistant cable, communication optical fiber cable, etc.Which are extensively applied in power, metallurgy, petro-chemical, energy, traffic, and telecommunication systems successively served in several domestic and overseas projects such as State Grid, Southern Power Grid, Three Gorge of Yangtze River, Datang Togtoh Power Station, Qinshan Nuclear Power Station, Sanmen Nuclear Power Station, CNPC Pengzhou 1 Million Tons/Years Ethylene Project, Changqing Oilfield, Changchun Rail Transporation, Zhongnanhai Substation, railway from Beijing to Tibet, Wuhan Iron and Steel Corp., SINOPEC Wuhan 800 Thousand Tons/Years Ethylene Project, BASF-YPC, Tongli ±800kV Converting Station, Southern Anhui 1000kV Substation, Sino-Burma Oil-Gas Pipeline Project, etc.The quality and services of our products received consistent praises from the clients and market.
With 8 Ult-high & High voltage cross-linking cable production lines, 2 conductor stranding production lines and full set of inspection equipment imported from Finland, Germany, America, UK, Swiss, Austria and other developed countries, Shuguang Cable drives ahead in the industry of wire and cable manufacture.After a long period of recruitment and education, we have formed up an excellent technical and management team which can promote the sustainable development of our company.We are vigorously strengthening the ability of research and development and innovation through enhancing the relationship and cooperation with colleges, universities and scientific and research institutions.We have successively assumed 79 provincial and above science and technology projects, including 8 National Important New Products projects, 13 National Torch Program and Spark Program projects, 3 national Innovation Fund projects and we also participated in drafting and revising of 24 national and industrial standards in cable industry.
"Striving cohesively, devoting selflessly, keeping progress with times and challenging the future" has been keeping as the enterprise culture to Shuguang people for years.During the sustainable development, Shuguang will further play full role of our advantages, by "Market Orientation, Customer Satisfaction, Innovation for development and Lean Management for benefit".Forge ahead and keep surpassing, we will always make contributions positively to harmonious society construction.
