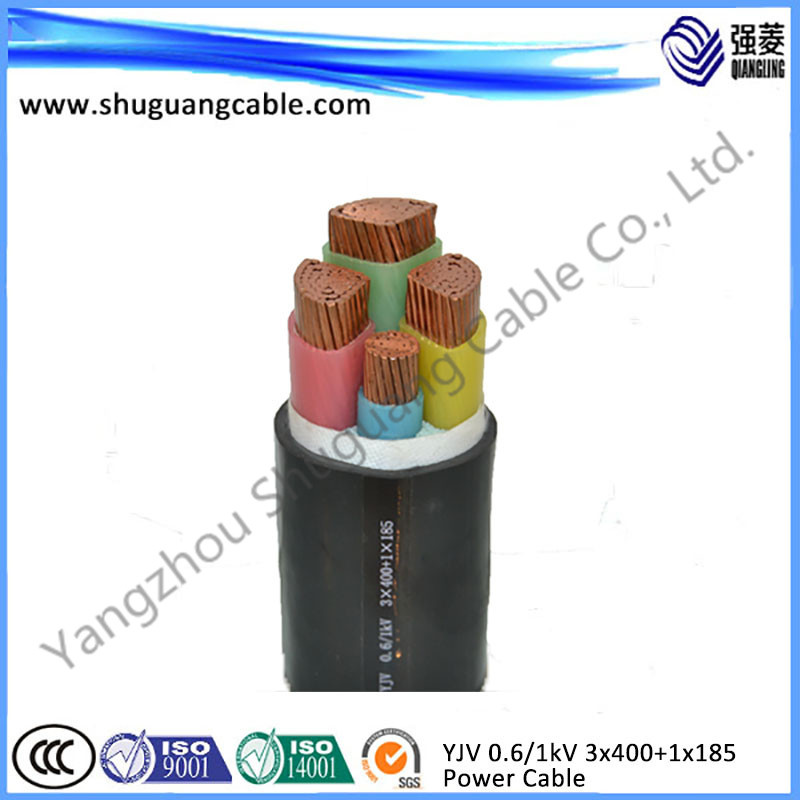

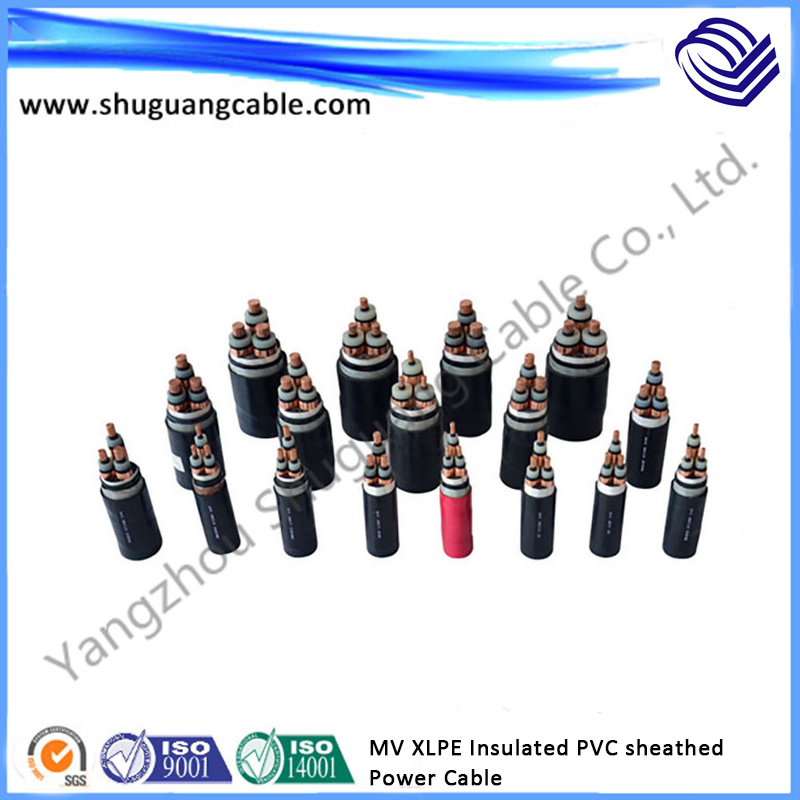

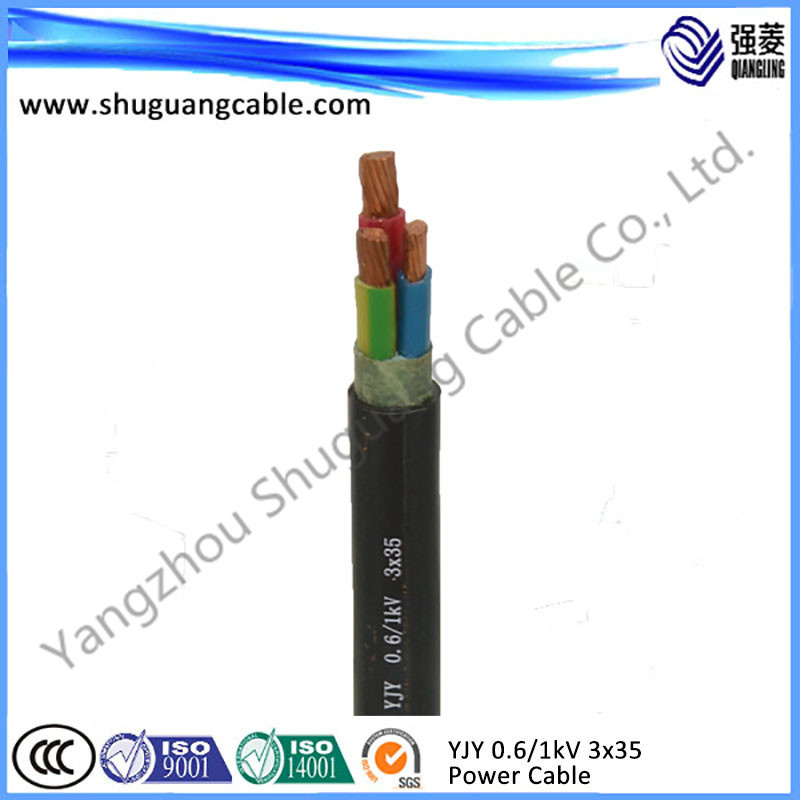

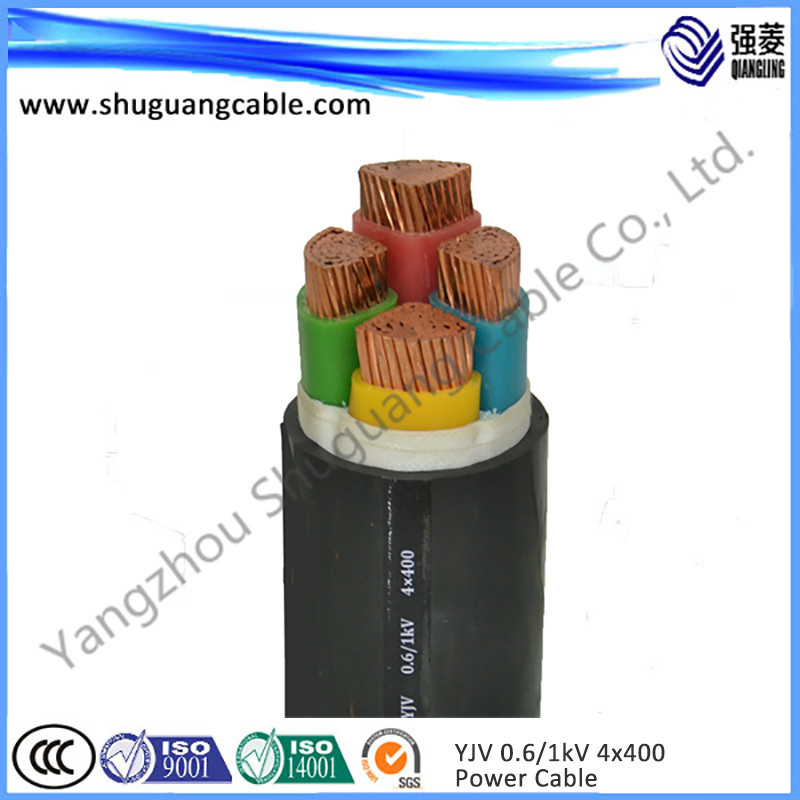

PVC Sheath Electrical/Electric Power Cable with XLPE Insulation
Price: |
US $ 16/Meter |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
100/Meter |
Pay Type: |
L/C,T/T |
PVC Sheath Electrical Power Cable with XLPE Insulation1. Applicable Standard:GB/T 12706-2008, IEC 60502-20052. Product Description:For XLPE insulated power cable, either chemical method or physical method had been employed to transform the molecular of PE from liner structure into three-dimensional network structure, i.e. thermoplastic PE and been transformed into thermosetting XLPE. After cross-linking, the mechanical performance, heating aging property and ambient stress resistance have been greatly improved, while its excellent electrical properties are still maintained.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology (peroxide, hot water and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke non-halogen and three classes of A, B, C.Maximum rated temperature of cable conductor is 90ºCMaximum short-circuit temperature of cable conductor ≤ 250ºCThe temperature when laying cable ≥ 0ºC, The minimum bending diameter of cable is stipulated as follow:For single-core cable: 20(D+d)±5% in mmFor multi-core cable: 15(D+d)±5% in mmWhere: D is the actual outer diameter of the cable d is the actual outer diameter of the conductor.3. Specification & Application AreaType | Voltage | Section | Name | Application |
YJV | 3.6/6kV-26/35kV | 25-800mm2 | XLPE insulated and PVC sheathed power cable | Can be laid indoor, outdoor, tunnels, reinforced concrete pipelines or loose soil. Cable can't bear outer mechanical force, but can bear a certain traction force. |
YJV22 | 3.6/6kV-26/35kV | 25-800mm2 | XLPE insulated, steel tape armored and PVC sheathed power cable | Laid underground, cable be bear outer mechanical force, but should not bear a large traction force. |
YJV32 | 3.6/6kV-26/35kV | 25-800mm2 | XLPE insulated, thin steel wire armored and PVC sheathed power cable | Laid indoor, tunnel or mines. Cable can bear outer mechanical force and fairly large traction force. |
YJV42 | 3.6/6kV-26/35kV | 25-800mm2 | XLPE insulated, thick steel wire armored and PVC sheathed power cable | Can be laid in vertical section, indoor, tunnels or mines. Cable can bear outer mechanical force and very large traction force. |
4. Top Ranking Manufacture Equipment for HV/MV/LV of Power cables from Professional SuppliersName | Type | Origin | Application |
35KV Cable production line | CCV | Maillefer Finland | Production of medium voltage insulation wire core |
35KV Cable production line | CCV | TROESTER Germany | Production of medium voltage insulation wire core |
110KV Cable production line | CCV | TROESTER Germany | Production of high voltage insulation wire core |
500KV Cable production line | VCV | Maillefer Finland | Production of high voltage insulation wire core |
500KV Cable production line | VCV | TROESTER Germany | Production of high voltage insulation wire core |
35KV rubber cable production line | CCV | TROESTER Germany | Production of medium voltage rubber cables |
630 Frame type stranding machine | 1+6+12+18+24+30 | Pourtier France | Production for blocks of large section conductor |
3600 Drum-twister for milliken conductor | DPTC3600 | Pourtier France | Production for blocks of large section conductor |
High voltage cable out-sheath Product Line | Φ150+90 | Germany (Shanghai) TROESTER Machinery Co., Ltd. | Production for EHV cable double sheath |
5.Carrying Capacity 3.6/6~12/20kV XLPE insulated power cable carrying capacity (contain flame retardant type)
Type | YJV,YJLV,YJV22,YJLV22(ZR-YJV,ZR-YJLV ,ZR-YJV22,ZR-YJLV22) |
Cores | Single Core | Three Cores |
Installation conditions | In air | In earth(K.m/w) | In air | In earth(K.m/w) |
Ρw | ρD | ρw | ρD |
1 | 2.5 | 1 | 2.5 |
Nominal cross-section | Carrying capacity(A) |
(mm2) | CU | AL | CU | AL | CU | AL | CU | AL | CU | AL | | AL |
| CU |
25 | 165 | 130 | 160 | 120 | 140 | 110 | 120 | 90 | 125 | 100 | 120 | 90 |
35 | 205 | 155 | 190 | 145 | 165 | 130 | 140 | 110 | 155 | 120 | 140 | 110 |
50 | 245 | 190 | 225 | 175 | 195 | 150 | 165 | 130 | 180 | 140 | 165 | 125 |
70 | 305 | 235 | 275 | 215 | 240 | 185 | 210 | 165 | 220 | 170 | 205 | 160 |
95 | 370 | 290 | 330 | 255 | 285 | 220 | 255 | 200 | 265 | 210 | 240 | 185 |
120 | 430 | 335 | 375 | 290 | 325 | 250 | 290 | 225 | 300 | 235 | 270 | 210 |
150 | 490 | 380 | 425 | 330 | 365 | 280 | 330 | 255 | 340 | 260 | 300 | 235 |
185 | 560 | 435 | 480 | 370 | 410 | 320 | 375 | 295 | 380 | 300 | 345 | 265 |
240 | 665 | 515 | 555 | 435 | 475 | 370 | 435 | 345 | 435 | 345 | 390 | 305 |
300 | 765 | 595 | 630 | 490 | 535 | 415 | 495 | 390 | 485 | 390 | 435 | 345 |
400 | 890 | 695 | 725 | 565 | 610 | 480 | 565 | 450 | 520 | 470 | 470 | 390 |
500 | 1030 | 810 | 825 | 650 | 695 | 550 | 640 | 515 | 605 | 550 | 550 | 450 |
630 | 1190 | 950 | 940 | 745 | 790 | 625 | --- | --- | --- | --- | --- | --- |
Operating temperature | 90ºC |
Ambient temperature | 40ºC | 25ºC | 40ºC | 25ºC |
18/30~26/35kV XLPE insulated power cable carrying capacity (contain flame retardant type)
Type | YJV,YJLV,YJV22,YJLV22(ZR-YJV,ZR-YJLV,ZR-YJV22,ZR-YJLV22) |
Cores | Single core | Three cores |
Installation conditions | In air | In earth(K.m/w) | In air | In earth(K.m/w) |
ρw | ρD | ρw | ρD |
1 | 2.5 | 1 | 2.5 |
Nominal cross-section (mm2) | Carrying capacity(A) |
| | | | | | | | | | | |
CU | AL | CU | AL | CU | AL | CU | AL | CU | AL | CU | AL |
35 | 195 | 145 | 180 | 135 | 160 | 120 | 150 | 115 | 190 | 150 | 170 | 135 |
50 | 245 | 190 | 225 | 175 | 200 | 155 | 180 | 140 | 225 | 175 | 205 | 155 |
70 | 305 | 235 | 275 | 215 | 245 | 190 | 220 | 170 | 275 | 215 | 245 | 190 |
95 | 370 | 285 | 330 | 255 | 295 | 225 | 265 | 205 | 335 | 260 | 295 | 230 |
120 | 425 | 330 | 375 | 290 | 335 | 260 | 305 | 235 | 380 | 295 | 335 | 260 |
150 | 485 | 375 | 420 | 325 | 375 | 290 | 345 | 270 | 425 | 330 | 375 | 290 |
185 | 555 | 430 | 475 | 370 | 420 | 325 | 390 | 305 | 485 | 375 | 425 | 330 |
240 | 650 | 505 | 555 | 430 | 485 | 380 | 455 | 355 | 565 | 435 | 490 | 380 |
300 | 745 | 580 | 630 | 490 | 550 | 425 | 525 | 410 | 635 | 495 | 550 | 430 |
400 | 870 | 680 | 720 | 565 | 630 | 490 | 600 | 470 | 730 | 570 | 630 | 495 |
500 | 1000 | 790 | 825 | 645 | 715 | 560 | --- | --- | --- | --- | --- | --- |
Operating temperature | 90ºC |
Ambient temperature | 40ºC | 25ºC | 40ºC | 25ºC |
Prod Model: |
YJV YJV22 YJV32 YJV42 YJV62 YJV72 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Voltage Range: |
3.6/6-26/35kv |
Insulation: |
XLPE |
Conductor: |
Copper or Aluminum |
Cross Section: |
25-800mm2 |
Core Number: |
1 or 3 |
Fire Resistance: |
Available, as Per Customer's Requirement |
Flame Retardant: |
Available, as Per Customer's Requirement |
Waterproof: |
Available, as Per Customer's Requirement |
Cold Proof: |
Available, as Per Customer's Requirement |
Applied Standard: |
GB/T 12706-2008, IEC 60502-2005 |
Application: |
Telecommunication |
Current: |
AC Cable |
Insulation Material: |
XLPE |
Certification: |
IEC |
Voltage: |
Medium Voltage |
Sheath Material: |
PVC or PE |
Wire Core Material: |
Copper |
Brand: |
Qiangling |
