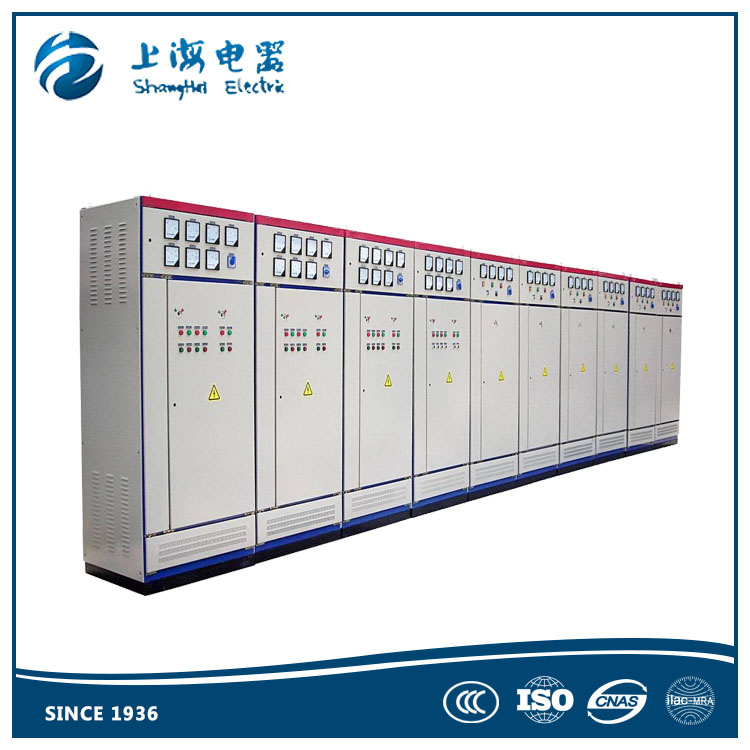

Fix Version 0.4kv Electric Power Distribution Cabinet Low Voltage Switchgear

Name: Fix Version 0.4kv Electric Power Distribution Cabinet Low Voltage Switchgear
Brand: all-electronics-online.com
SKU: 793855235
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	US $ 1000-6000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

1,Outline

GGD AC low-voltage distribution cabinet switching equipment for power plants, substations, industrial and mining enterprises and other power users as AC 50Hz, rated working voltage 380V, rated current up to 3150A of the distribution system, as power, lighting and power distribution equipment the power conversion, distribution and control purposes. The product is high breaking capacity, rated short time withstand current up to 50KA. Line program flexible combination of convenience, practical, novel structure and other characteristics.

2, Normal conditions of use

1 altitude less than 2000m;
2 does not exceed the maximum ambient temperature + 40 ºC, the minimum of not less than -5 ºC; 24-hour period the average temperature does not exceed + 35 ºC;
3 air relative humidity less than 90% (+ 20 ºC);
4 device installation and the vertical inclination angle does not exceed 5 °;
5 No fire, explosion, serious pollution, chemical corrosion and severe vibration.
Note: The special conditions of use when ordering consultation with my factory.

3, Main technical parameters

Product model	Rated voltage (V)	Rated current (A)		Rated short circuit breaking current(KA)	Rated short-time withstand current(KA)	Rated peak-value withstand current(KA)
NGGD1	380	A	1000	15	15	30
		B	600(630)
		C	400
NGGD2	380	A	1500(1600)	30	30	63
		B	1000
		C
NGGD3	380	A	3150	50	50	105
		B	2500
		C	2000

Prod Model:	GGD
Type:	Power
Form:	Partly-Welded Type
Operation Voltage:	Low Voltage
Size:	1 Uint
Application Range:	High-Rise Buildings
Shell Protection Grade:	IP23
Brand:	Shanghai Electric

Shanghai Electric Group Co., Ltd(Shanghai Electric) since 1936.

Members of goverment mechanical ministry

Key enterprises of Shanghai

We are one of the earliest manufacturer of electrical equipment in China

We used cooperate with German Stahl, Siemens and Mannesmann, American Westinghouse, Timage, turbine air systems, Wyman-Gordon forgings, France Schneider, Italian Dalmine, ABB Switzerland, Spain Tubacex, Japan Mitsubishi etc famous international company

Our company was ISO9001/ISO14001/OHSAS18001 approval

Group has sucess project for Qinshan nuclear power plant, the YANGZI RIVER project, Pudong International Airport, Baosteel Group, Shengli Oilfield, the Oriental TV Tower, Nepal conference building, Iran subway, Pakistan Chashma nuclear power plant, sugar mills in Malaysia, Royal Palace of Thailand, and other domestic and foreign key projects supporting.

After 70 years of development, group have completely R&D, production, sales, contracting, engineering branch

Covering power transmission and distribution equipment manufacturing, environmental protection and energy saving products manufacturing, power generation equipment engineering contracting, import and export trade, bio medical industry of 5 big pillar, the camp pin network throughout the world more than 30 countries and regions, the group company (including member enterprise with total assets of 11.2 billion yuan, the number of employees more than 13000 people, the total output value in 2015 reached 26.5 billion yuan.

We will be a new concept, the success of the performance, solid strength, good reputation for you to build a boutique project!
