Metal Clad Switchgear Low Voltage Switchgear

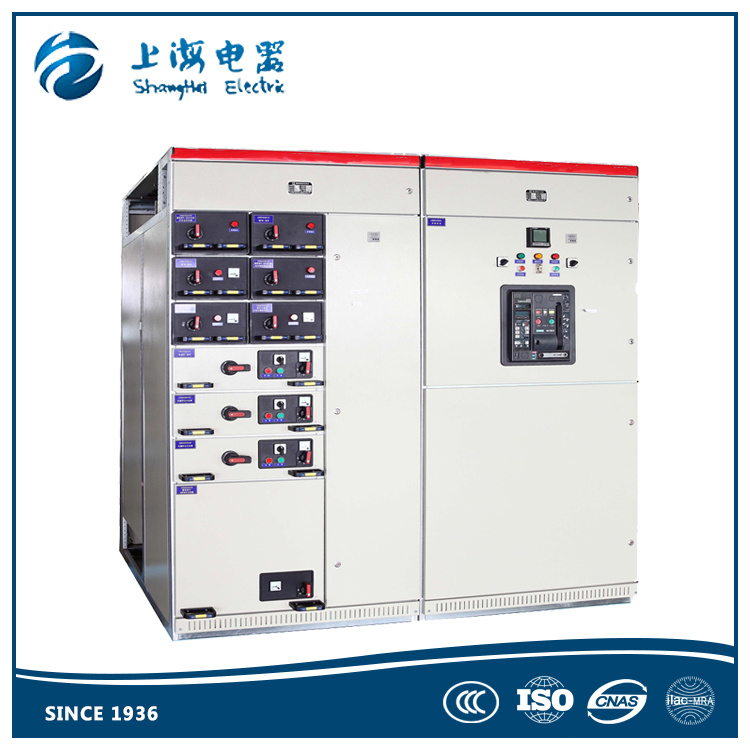

Name: Metal Clad Switchgear Low Voltage Switchgear
Brand: all-electronics-online.com
SKU: 793855865
Availability: InStock
Rating: 4.3 (51 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	MNS
Type:	Power
Form:	Partly-welded Type
Operation Voltage:	Low Voltage
Size:	1 Uint
Application Range:	High-rise Buildings
Shell Protection Grade:	IP23
Brand:	Shanghai Electric

Product Description

Product description:
MNS Low Voltage withdrawable switchgear is for AC of 50-60HZ, power system rated voltage of 660V and below. It is used to control, protection and distribution in power generation, distribution, transformation and power consumption to optimize the power system by its high technical performance. It is widely used in power plant,chemical enterprises, textile, metallurgy, petroleum, etc. Besides the usual land usage,after our technical's special treatment,it could also be used in offshore drilling platform, nuclear power plants,etc.
The MNS Low Voltage Withdrawable Switchgear is in conformity with IEC439, Part 5 of VDE0660,GB7251.1 and JB/T9661.

Technical parameters:

Parameters	Specification
Rated Insulation Voltage	AV: 690V
Rated Operational Voltage: Main Circuit	AV: 380V/690V
Rated Operational Voltage: Support Circuit	AV: 220V/380V
Rated Frequency	50HZ/60HZ
Rated Current: Horizontal Bus	630-5000A
Rated Current: Vertical Bus	800-2000A
Rated Short-time Withstand Current: Horizontal Bus(1s)	50-100KA
Rated Peak Withstand Current: Horizontal Bus	105-200KA
Rated Short-time Withstand Current: Vertical Bus(1s)	30-80KA
Rated Peak Withstand Current: Vertical Bus	63-176V
Shell frame protection level	IP40
Shell frame protection level in special condition request	IP50

Shanghai Electric Group Co., Ltd(Shanghai Electric) since 1936.

Members of goverment mechanical ministry

Key enterprises of Shanghai

We are one of the earliest manufacturer of electrical equipment in China

We used cooperate with German Stahl, Siemens and Mannesmann, American Westinghouse, Timage, turbine air systems, Wyman-Gordon forgings, France Schneider, Italian Dalmine, ABB Switzerland, Spain Tubacex, Japan Mitsubishi etc famous international company

Our company was ISO9001/ISO14001/OHSAS18001 approval

Group has sucess project for Qinshan nuclear power plant, the YANGZI RIVER project, Pudong International Airport, Baosteel Group, Shengli Oilfield, the Oriental TV Tower, Nepal conference building, Iran subway, Pakistan Chashma nuclear power plant, sugar mills in Malaysia, Royal Palace of Thailand, and other domestic and foreign key projects supporting.

After 70 years of development, group have completely R&D, production, sales, contracting, engineering branch

Covering power transmission and distribution equipment manufacturing, environmental protection and energy saving products manufacturing, power generation equipment engineering contracting, import and export trade, bio medical industry of 5 big pillar, the camp pin network throughout the world more than 30 countries and regions, the group company (including member enterprise with total assets of 11.2 billion yuan, the number of employees more than 13000 people, the total output value in 2015 reached 26.5 billion yuan.

We will be a new concept, the success of the performance, solid strength, good reputation for you to build a boutique project!
