Flat Shaft Copper Stainless Potentiometer Rotary Wirewound Potentiometers

Name: Flat Shaft Copper Stainless Potentiometer Rotary Wirewound Potentiometers
Brand: all-electronics-online.com
SKU: 721355142
Availability: InStock
Rating: 5 (73 reviews)

Price:	US $ 0.5/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Potentiometer, wirewound potentiometer, Precision potentiometer, rotary potentiometers, Trimmer Rotary potentiometer, potentiometers, audio potentiometers

Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.

We produce precision wirewound potentiometer since 2008. With very stalbe quality and good price, our annual produce amount is about 2 million pieces.

Please check below specification.

1.Electrical Characteristics for wirewound potentiometer
1.1 Total resistance range: 100Ω~100KΩ 1.2 Resistance Tolerance:±5% 1.3 Terminal resistance: ≤0.2%R or 5Ω 1.4 Voltage rating: 101.3KPaV8.5KPa 470V 1.5 Contact Noise:≤3%R or 5Ω 1.6 Residual resistance value: RR>100KΩTerminal 1~2and 2~3:Less than 0.5% of total resistance 1.7 Effective Electrical Travel: ≥3600°-10°
2.Mechanical Characteristics
2.1 Total Rotational Angle: 360°±10° 2.2 Stopper Strength: ≤36mN.m 2.3 Rotational Torque: ≥300mN.m
3.Endurance Characteristics
3.1 10000(cycles),ΔR≤±3%R
4.Environmental Characteristics
4.1 Temperature Range:-55°C~+125°C 4.2 Power rating: 2W (70°C) 4.3 Temperature Coefficient:±100ppm/°C ±1000ppm/°C(TR>100K)at-25°C~+70°C 4.4 Temperature Variation :ΔR≤±2%R,Δ(Uab/Uac)≤±1% 390m/ss,4000 Δ R≤±1%R 4.5 Collision:10~500HZ,0.75mm 98m/ss,6h Δ R≤±1%R, Δ (Uab/Uac)≤±2%R 4.6 Climate Category:ΔR≤±3%R,R1≥100MΩ 4.7 Electrical Endurance at 70°C:2W,1000h,ΔR≤±3%R 4.8 Mechanical Endurance:10000(cycles)

Prod Model:	WX030
RoHS:	100%
Certificate:	ISO9001, ISO14001, Ts16949
Resistance:	Variable Resistor
Function For Resistance:	Load Resistor
Installation:	DIP Resistor
Material:	Carbon Film Resistor
Type:	Rotary Potentiometer
Package Type:	Carton, Box
Brand:	BS

Bosin Electronics Ltd is invested by Bosin holdings which established in 2006.

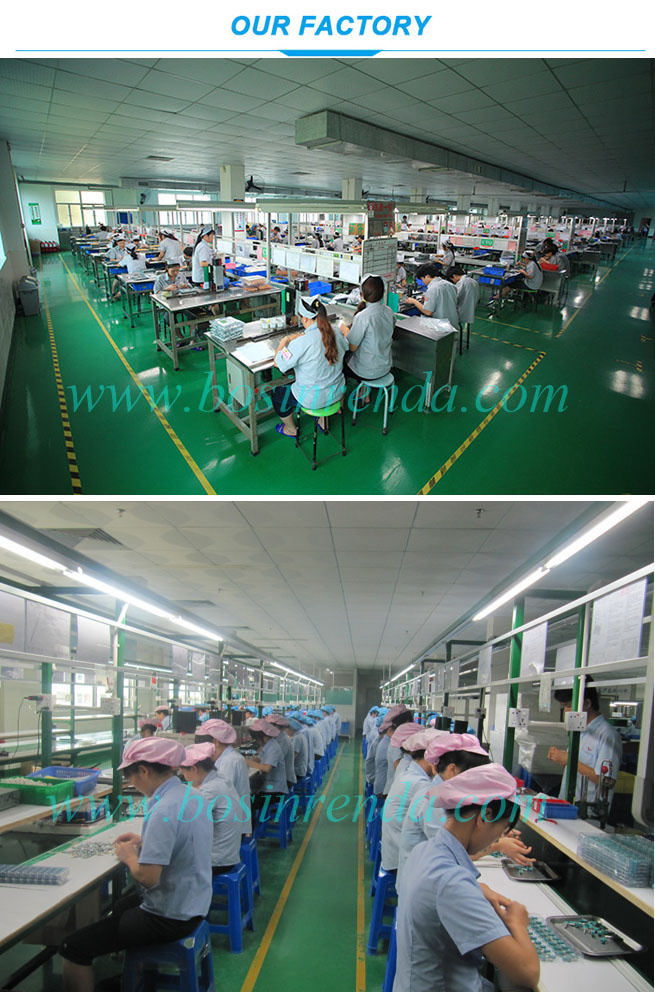

The copmany specializing in designing and manufacturing potentiometer, encoder, switch and DC motors. Now our company factory area is about 10000 m2, employees more than 600 persons and technicians more than 60 persons. And we all staffs have strived for five years to build up a set of completely production flow including of developing new product, mould manufacture, spare parts or components manufacture, finished product assembly. We build up a good image of " Bosin" in our field and the products already accepted by LG, PHILIPS, SANYO, BBK, Malata, etc. For a long time.

After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.

The Bosin has passed the certificate of ISO 9001-2000, ISO 14001-2004, TS16949, this assures to satisfy our clients with best quality of products and services. Now, the Bosin is devoting all its efforts to become the top of the potentiometer manufacturer in China.
