Prod Model: |
RVV |
Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East |
Produceing Experience: |
15 Years |
Size: |
Customized According to Your Request |
Export Experience: |
Indonesia, Malaysia,Phillipines,Australia |
Export To: |
South America, Africa,Saudi Arabia,UAE |
OEM: |
Yes |
Type: |
Insulated |
Conductor Type: |
Stranded |
Application: |
Underground |
Conductor Material: |
Copper |
Insulation Material: |
PVC |
Certification: |
CCC |
Product Description

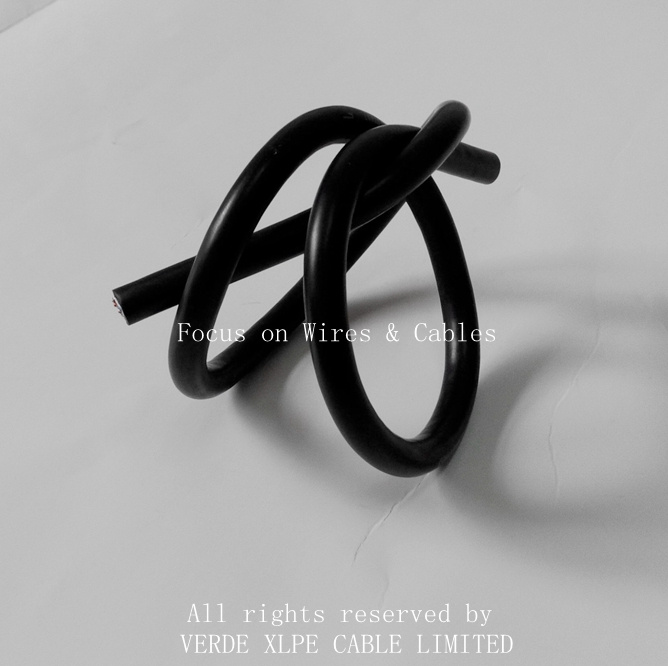

Special PVC Material and Sheathed Oil and Abrasion Resistant Flexible Cable Wire 1.Different Specification can be Customized as per your requirement.
2.Factory Price Fast Delivery.
3.Assured Quality be paid high attention
4.Focus on Wires & Cables field with more than 10 years5.Description:Rated voltage 300/500V,450/750V Flexible cable
Conductor class: class5
Conductor material:Stranded Copper or Stranded Tinned Copper
Insulation:Special PVC
Sheathing:Special PVC
6.Specification: Single core and Multicore Type cableCore Nos.: 1core, 2core, 3core, 4core,5core
Nominal Section Area:0.5mm2,0.75mm2,1.0mm2,1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2........240mm2
More size and specification can be customized3.Insulation Color:Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request

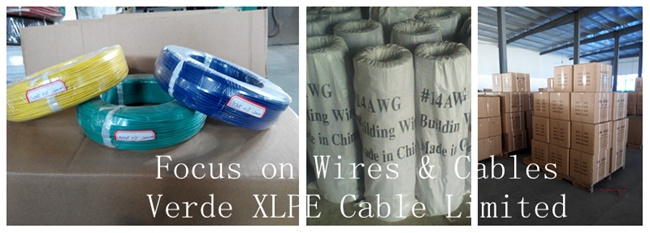

4.Packing:1.100meter per roll then put into plastic bags or carton
2. at least 500meter per drum
5,Technical Data List for Flexible Cable Condcutor
1). H07V-R wire TypeStandard:GB/T 5023-2008,IEC60227,228, Different Standard can be customized according to your requirement |
Description:general single core Flexible wire |
Type in National standard:60227 IEC 02(RV) 450/750V H07V-R |
Size (mm2) | Conductor class | Conductor Structure Nos /dia (mm) | Nominal Thickness of Insulation mm | Outer insulation diameter mm | D.C Resistance of conductor Ω/km | Calculated Weight kg/km |
1.5 | 5 | 30/0.25 | 0.7 | 3.1 | 13.3 | 20.9 |
2.5 | 5 | 49/0.25 | 0.8 | 3.7 | 7.98 | 32.5 |
4 | 5 | 56/0.30 | 0.8 | 4.3 | 4.95 | 48.6 |
6 | 5 | 84/0.30 | 0.8 | 5.2 | 3.30 | 70.6 |
10 | 5 | 77/0.40 | 1.0 | 6.7 | 1.91 | 122.9 |
16 | 5 | 119/0.40 | 1.0 | 7.8 | 1.21 | 176.3 |
25 | 5 | 189/0.40 | 1.2 | 9.7 | 0.780 | 272.0 |
35 | 5 | 264/0.40 | 1.2 | 11.3 | 0.554 | 374.5 |
50 | 5 | 378/0.40 | 1.4 | 13.1 | 0.386 | 534.5 |
70 | 5 | 336/0.50 | 1.4 | 15.6 | 0.272 | 739.2 |
95 | 5 | 456/0.50 | 1.6 | 17.6 | 0.206 | 969.9 |
120 | 5 | 576/0.50 | 1.6 | 19.3 | 0.161 | 1186.2 |
150 | 5 | 720/0.50 | 1.8 | 22.8 | 0.129 | 1508.5 |
185 | 5 | 888/0.50 | 2.0 | 24.3 | 0.106 | 1862.5 |
240 | 5 | 1184/0.50 | 2.2 | 26.6 | 0.0801 | 2372.9 |
|
|
|
|
|
|
|
|
Standard:GB/T 5023-2008;GB/T 19666-2005,IEC60227,228 |
Description:PVC insulated Fire Resistant Flexible Wire Cable |
Type:NH-RV 450/750V H07V-R |
Size | Conductor class | Conductor Structure Nos /dia (mm) | Nominal Thickness of Insulation mm | Outer insulation diameter mm | D.C Resistance of conductor Ω/km | Calculated Weight kg/km |
1.5 | 5 | 30/0.25 | 0.7 | 3.56 | 13.3 | 25.6 |
2.5 | 5 | 49/0.25 | 0.8 | 4.2 | 7.98 | 38.2 |
4 | 5 | 56/0.30 | 0.8 | 4.77 | 4.95 | 55.0 |
6 | 5 | 84/0.30 | 0.8 | 5.66 | 3.30 | 77.8 |
10 | 5 | 77/0.40 | 1.0 | 7.16 | 1.91 | 131.8 |
16 | 5 | 119/0.40 | 1.0 | 8.26 | 1.21 | 186.5 |
25 | 5 | 189/0.40 | 1.2 | 10.16 | 0.780 | 283.8 |
35 | 5 | 264/0.40 | 1.2 | 11.76 | 0.554 | 388.3 |
50 | 5 | 378/0.40 | 1.4 | 13.56 | 0.386 | 549.8 |
70 | 5 | 336/0.50 | 1.4 | 16.1 | 0.272 | 756.5 |
95 | 5 | 456/0.50 | 1.6 | 18.1 | 0.206 | 988.1 |
120 | 5 | 576/0.50 | 1.6 | 19.8 | 0.161 | 1205.7 |
150 | 5 | 720/0.50 | 1.8 | 23.3 | 0.129 | 1529.9 |
185 | 5 | 888/0.50 | 2.0 | 24.8 | 0.106 | 1883.5 |
240 | 5 | 1184/0.50 | 2.2 | 27.1 | 0.0801 | 2394.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2).Single core Flexible cable (H07V-K Cable)Packing

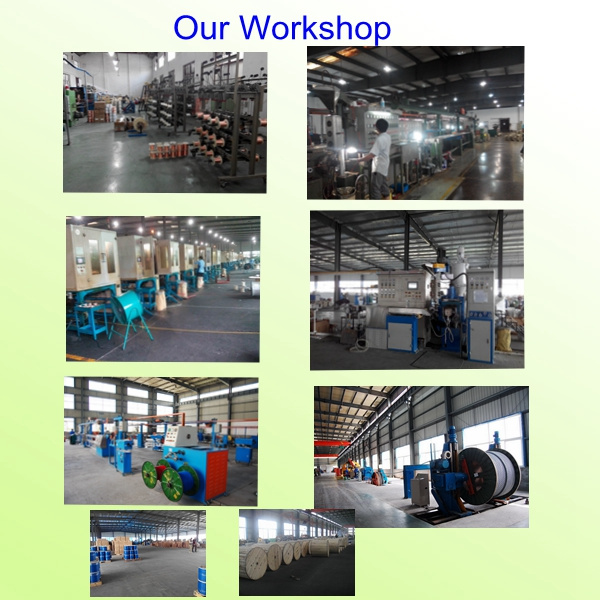

Our factory was founded in 2000 year, we specialized at manufacture and export of wires and cables. The producuts we supplied as follows:
Overhead Conductor for Power Project including Power transimission and distribution, Power plant and Substation, Conductors include AAC, ACSR, ACAR, AAAC, ABC cable and Stay Wire.
Power Cable and Electrical Wires: Building Wires, PVC Cables, XLPE Cables, Nylon Coated Cable, STA and SWA Armored Cable, Flexible Cable, Earthing Cable. We have professional working team that focus on working on power plant and substation project, and electric power transmission line project.
We can also supply Rubber cable, including Welding cable, Silicone cable, EPR Rubber cable.
New Products Development: From last year our workshop build new productin line that specialize at produceing Special Cable including High Temperature cable, Heating Cable, Teflon wire, PTFE wire, ASTVR Wire, Flexible cable, Nylon Cable THHN, THWN, Data Cable such as CAT5e, Speaker Cable, Telephone Cable, Shielding cable.
We can produce as per the standard of IEC, BS, UL, ASTM, DIN, GB, GJB, and we can also customize the special cable accordin to the different requirements of clients. We have exported to Eastsouth Asia, Middle East, Austrlia, Russia, USA, UK, South America, and most countries of Africa. Building long term cooperatoin and supplying the most professional service is our dealing principle.
Profession and Quality is our Constant Pursuit. We aim to build long term cooperation with the customers.
Sincere and Credit to every Customer No Matter The Order is Small or Big. Waiting for more friends to send inquiry and visit us!
