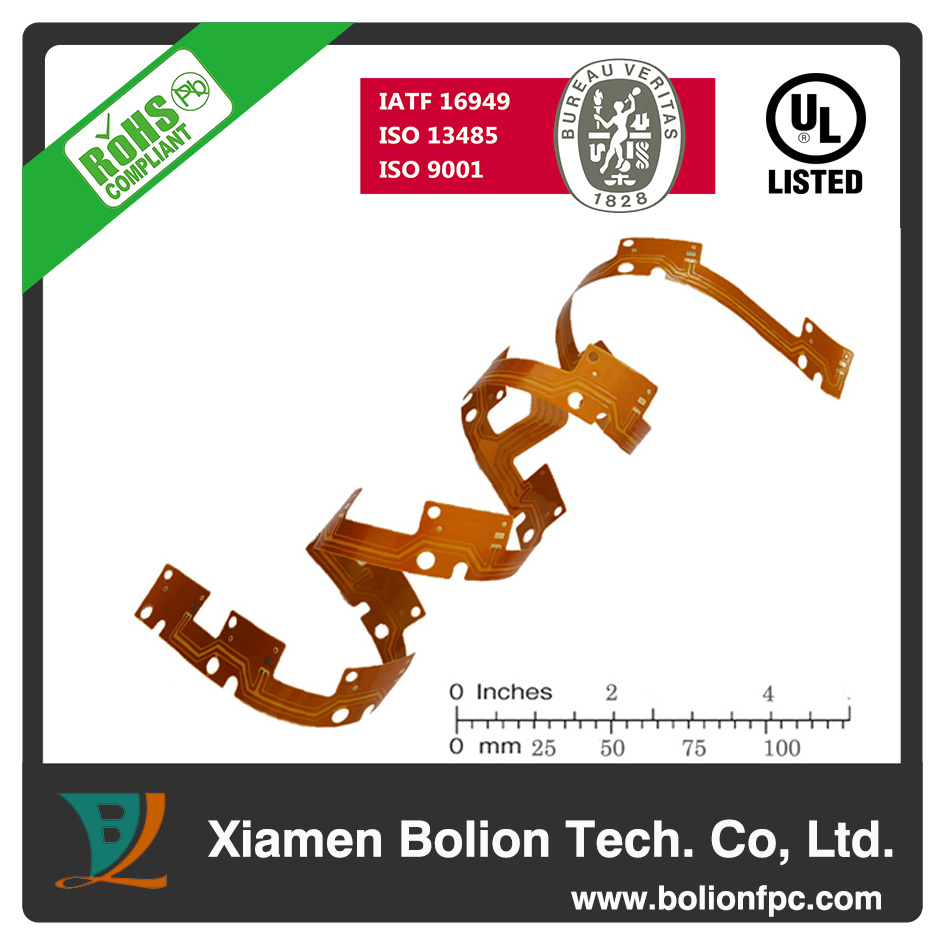

Flexible Circuit for LED Lighting

Name: Flexible Circuit for LED Lighting
Brand: all-electronics-online.com
SKU: 752981195
Availability: InStock
Rating: 4.9 (143 reviews)

Price:	US $ 3-4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

1. Over 10 years'manufacturing experience focus on flexible circuit industry area.
2. Assembly provided.
3. 100% quality tested before shipment.
4. Certificate of UL, ISO9001, ISO14001 and ISO/TS16949.
5. Our Products meet the RoHS & WEEE lead-free requirement.
6. Small Order accepted.
7. 3 weeks for massive production; 10 days for sample since material prepared
Urgent case or spread delivery schedule will be updated per negociation then

FPC Apply:

medical apparatus
automobiles
aerospace
industrial equipment
detecting instruments
smart-home controller
consumer electronics, etc

Main Technique Index
Description	Parameters
Description	Polyimide	Polyester
Base film Thickness (um)	12.5,25,35,50	12.5,25,35,50
Copper Thickness (um)	12,17.5,35,50,70,105
Min. Line Width/Line Space (mm)	0.075/0.075
Min. Hole Size (mm)	0.15
Tolerance (mm)	Outline:+/-0.05; Coverlay: +/-0.2
Peel Strength (kgf/cm)	Above 1.0	Above 0.8
Solder Resistance	260C 10 seconds	204C 5 seconds

Surface Treatment
Content	Normal coating thickness	Normal PNL size
Plating nickel gold (In house)	Ni:2-9um;Au:0.03-0.09um	300mm×400 MM
Plating hard gold (In house)	Ni:2-9um;Au:0.1-1.0um	300mm×400 MM
Plating soft gold (In house)	Ni:2-9um;Au:0.03-0.09um	300mm×400 MM
Plating pure tin (In house)	2.0-8.0um	300mm×400 MM
Immersion Tin (In house)	0.3-0.6um	300mm×400 MM
OSP (In house)	N/A	300mm×400 MM
ENIG (Hard Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
ENIG (Soft Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
ENEPIG (Hard Nickel) (In house)	Ni:2-6um;Au:0.03-0.10um	300mm×400 MM
HASL (Outsource)	Cover the pads with min thickness 1~2 um	300mm×400 MM
Immersion silver (Outsource)	Per standand creteria	300mm×400 MM

Prod Model:	S5751
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Min.Space:	1.0mm
Min. Line:	0.4mm
Min. Pth:	N/a
Aspect Tatio:	N/a
Impedance:	N/a
Stiffener:	Aluminum
Surface Treatment:	Enig(Au:0.05um)
Structure:	Single-Sided FPC
Material:	Polyimide
Combination Mode:	Adhesive Flexible Plate
Application:	Digital Products
Conductive Adhesive:	N/a
Processing Technology:	Rolled Annealed Copper

Xiamen Bolion Ciruit Co., Ltd is an expert manufacturer that specializes in flexible Circuit boards & Rigid-Flex PCB based in China since 2003.

All of our facilities are ISO 9001, ISO 13485(Medical decices), ISO 14001, TS 16949(Automotive) RoHS, and UL(E228871) certified. This investment into equipment and training has transformed Bolion into a global supplier of Ultra-High Quality flexible and rigid-flex boards.

The key markets we serve are primary located in North America and Europe include Top 500 companies in the Medical, Automotive, Wearable, and CM/EMS industries.

Bolion Tech major in High-mix Low volume production, provide quality, cost-effective solution, on time for our customers.

Quick lead-times:

-Single layer Flex: 2~5 days

-Double layer Flex: 2~5 days

-Multi-layer Flex(Max. 12 layers): 4~8 days

-Rigid Flex: 5~8 days

Bolion's commitment to you is that we will strive to become a full member of your engineering and manufacturing team focused on delivering you high quality products and service, on time, while achieving your stated technical and cost goals.

Bolion Business extends: With more than 13 years developing, Bolion now add in house SMT line, devoted to provide one-step service for our customers.

If you are interested in finding an FPC/Rigid-Flex PCB and SMT supplier in China, please freely contact us, I do believe Bolion will be your good choice.
