Flow Switch with IP67 Protection for Various Use MFM500
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union |
Prod Model: |
MFM500 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Pressure Range: |
1~150 Cm/S (Water), 3~300 Cm/S (Oil) |
Power Supply: |
24VDC ±20% |
Monitor And Control The Liquid Flowing: |
1~150cm/S (Water), 3~300cm/S(Oil) |
Principle: |
Flow Switch |
Consumption: |
<90mA |
Wires: |
Switch Output |
Construction Material: |
Stainless Steel |
Media Temperature: |
-20~80 C |
Storage Temperature: |
-20 ~+85 C |
Environment Temperature: |
-10~70 C |
Type: |
Electronic |
Application: |
Industrial |
Explosion-proof Type: |
Non Explosion-proof |
Contact: |
Normally Open |
Brand: |
Micro Sensor |
Product Description

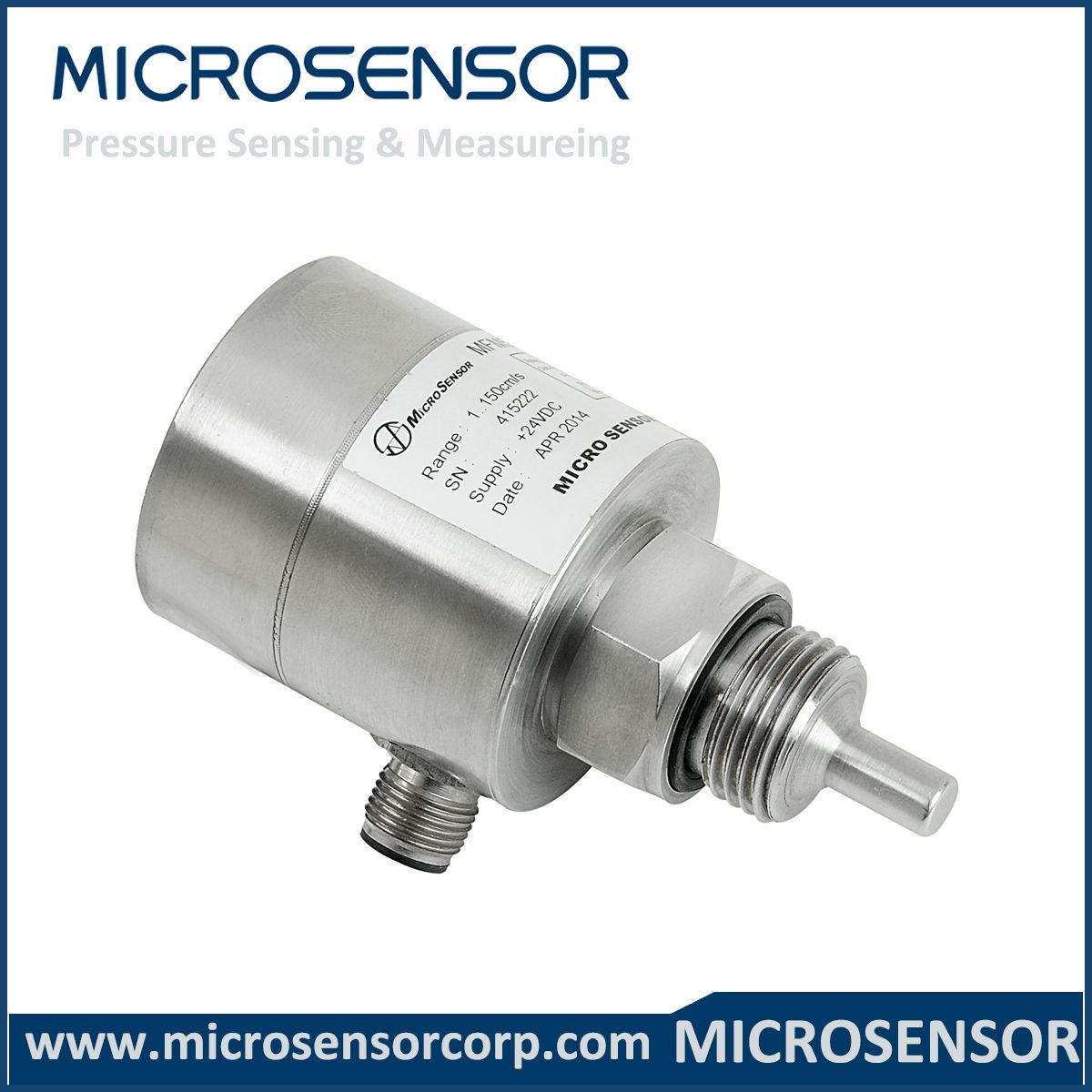

Flow Switch with IP67 Protection for industrial MFM500
Features:
1. Easy installation;
2. LED display;
3. Full metal housing;
4. Switch output
Applications;
1. Chemical industry;
2. Power station:
3. Beverage industry;
4. Iron and steel industry
Specifications:
1. Measure range: 1~150cm/s (water),3~300cm/s(oil)
2. Working voltage: 24VDC±20%
3. Consumption: <90mA
4. Output signal: Relay,PNP,NPN(three versions optional)
5. Relay character: Transistors character:
6. Switch voltage: ≤250VAC/30VDC Switch voltage: 24VDC±20%
7. Switch current: ≤3A Switch current: ≤400mA
8. Initial time: typ. 8s(2~15s)
9. Response time: typ2s(1~15s)
10. Temperature grades: 250ºC/min(max)
11. Protection: IP67
12. Media temp: -20ºC~+80ºC
13. Environment temp: -10ºC~+70ºC
14. Storage temp.: -20ºC~+85ºC
15. Endurance Pressure: 10MPa
16. Construction material: stainless steel 1Cr18Ni9Ti
17. Flow display: 6 LED indicators

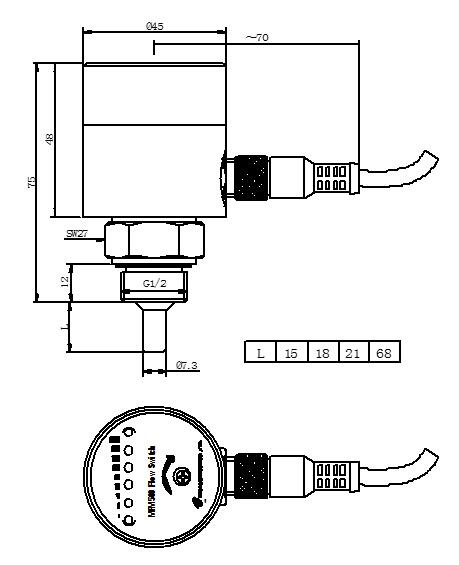

Outline Construction:

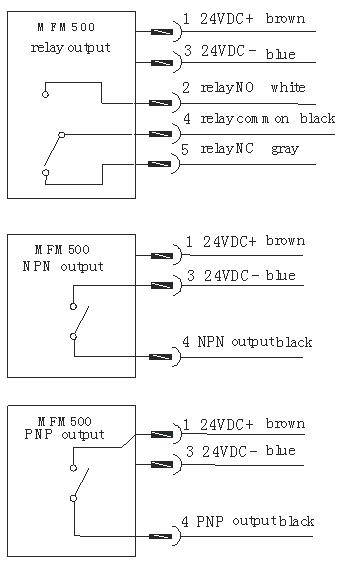

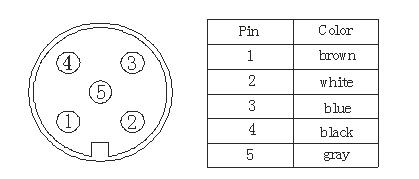

Electric Connection:
Order Guide:MFM500 | Flow Switch | |
| | Code | Others | |
| V1 | 24VDC | |
| | | Code | Pressure Port | |
| C3 | G1/2 male (or as required) | |
| | Code | Output sina |
J | Relay output |
P | PNP transistor output |
N | NPN transistor output |
| | Code | Probe length | |
L1 | 15mm | |
L2 | 18mm | |
L3 | 21mm | |
L4 | 68mm | |
| | Code | Electric connection | |
B1 | M12X1 plug(with cable 1.5m) | |
| | |
MFM500 V1 C3 J L1 B1 the whole spec | |
| | | | | | | | | | | | | | | | |
