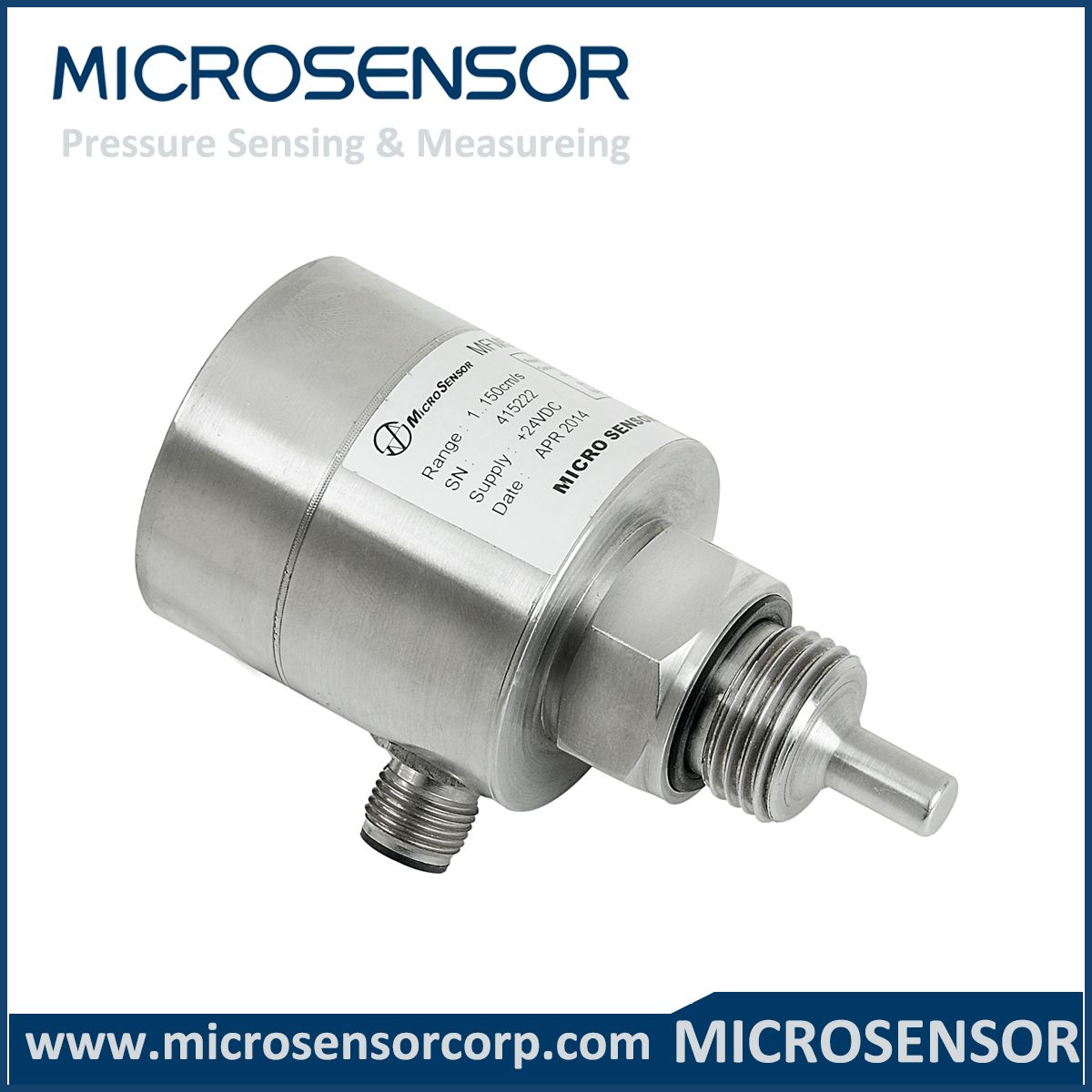

   Flow Switch with LED Display for Indsutrial MFM500

Features:
1. Easy installation;
2. LED display;
3. Full metal housing;
4. Switch output

Applications;
1. Chemical industry;
2. Power station:
3. Beverage industry;
4. Iron and steel industry

Specifications:
1. Measure range:   1~150cm/s (water),3~300cm/s(oil)
2. Working voltage: 24VDC±20%
3. Consumption:    <90mA
4. Output signal:    Relay,PNP,NPN(three versions optional)

5. Relay character:                           Transistors character:
6. Switch voltage: ≤250VAC/30VDC           Switch voltage: 24VDC±20%

7. Switch current: ≤3A                      Switch current: ≤400mA
8. Initial time: typ. 8s(2~15s)
9. Response time: typ2s(1~15s)
10. Temperature grades: 250ºC/min(max)
11. Protection: IP67
12. Media temp: -20ºC~+80ºC
13. Environment temp: -10ºC~+70ºC
14. Storage temp.: -20ºC~+85ºC
15. Endurance Pressure: 10MPa
16. Construction material: stainless steel 1Cr18Ni9Ti
17. Flow display: 6 LED indicators

Outline Construction:

Electric Connection:

Order Guide:

MFM500

Flow Switch

Code

Others

24VDC

Code

Pressure Port

G1/2 male (or as required)

Code

Output sina

Relay output

PNP transistor output

NPN transistor output

Code

Probe length

15mm

18mm

21mm

68mm

Code

Electric connection

M12X1 plug(with cable 1.5m)

MFM500 V1 C3 J L1 B1 the whole spec

Prod Model:	MFM500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	1~150 Cm/S (Water), 3~300 Cm/S (Oil)
Power Supply:	24VDC ±20%
Monitor And Control The Liquid Flowing:	1~150cm/S (Water), 3~300cm/S(Oil)
Principle:	Flow Switch
Consumption:	<90mA
Wires:	Switch Output
Construction Material:	Stainless Steel
Media Temperature:	-20~80 C
Storage Temperature:	-20 ~+85 C
Environment Temperature:	-10~70 C
Type:	Electronic
Application:	Industrial
Explosion-proof Type:	Non Explosion-proof
Contact:	Normally Open
Brand:	Micro Sensor
