| Prod Model: |
LGD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Electrical Performance: |
16 (3) a-250V ~ 10 (1.8) a-400V |
| Off Temperature: |
-35c~+450c |
| Life: |
100, 000 Times |
| Minimum Current: |
200 Ma |
| Usage: |
Air Conditioner, Refrigerator, Ventilation, Air Purifier, Motor |
| Control Type: |
Mechanical |
| Type: |
Temperature Controller |
| Material: |
Stainless Steel |
| Control Method: |
Electronic Type |
| Operating Principle: |
Absorption Refrigeration Equipment |
| Cooling Purpose: |
Cold Storage |
Product Description

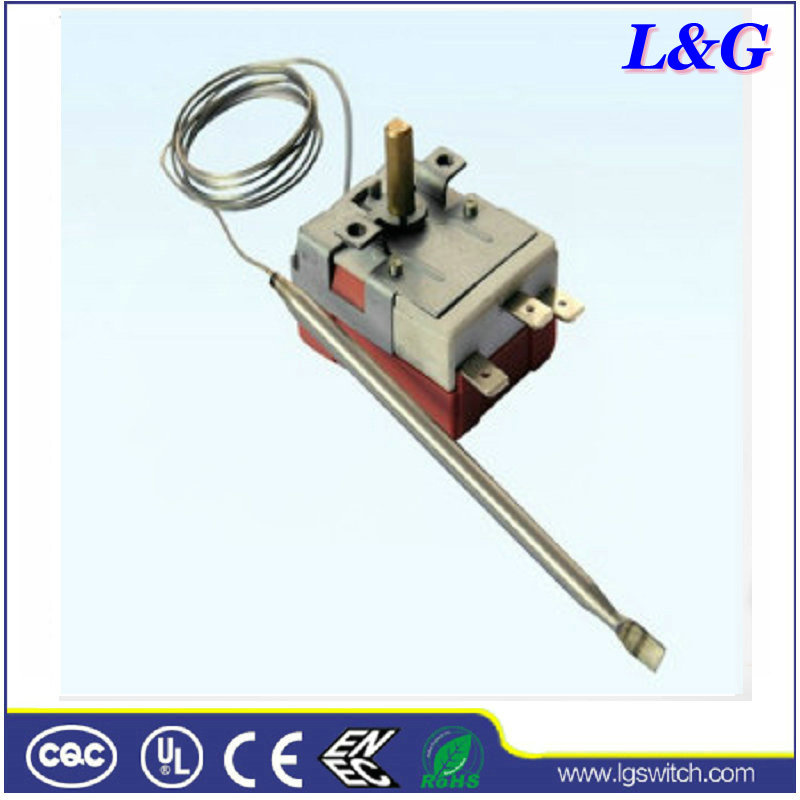

liquid up oven temperature control
Application Field:
Application:, Mainly used for electric equipment (stainless steel automatic water boilers, Built-in Ovens, electric frying pans, food machinery, medical equipment), refrigeration industry (kitchen freezer, fresh cabinet, refrigerator, ice machine, fish pond, cold drink machine, Heating temperature machine) and other control equipment.
The Product Sells Point:
Key Specifications/Special Features:
1, the principle properties and uses
Performance principle: to make the thermostat temperature working fluid within the Ministry to produce the corresponding thermal expansion and contraction of the physical phenomena (working fluid volume change) when the object to be controlled temperature changes, and temperature sensing diaphragm communicates together produce expansion or contraction. Through leverage, driven by switching off the action, achieve the purpose of the thermostat. WG series of liquid expansion type thermostat with temperature control accurate, reliable, small-OFF temperature, temperature adjustment range, and large overload current performance characteristics.
2. the technical triple the number:
1, the electrical performance: 16 (3) A-250V ~ 10 (1.8) A-400V ~
2, off temperature: According to user requirements, design temperature range (-35 ºC ~ + 450 ºC)
3, the product life:> 100,000 times
4, the electrical strength: AC2000V / 1min
5, normal insulation resistance: ≥100MΩ
6, the contact resistance: ≤50mΩ
7, tide insulation resistance: ≥10MΩ
8, the temperature response rate: ≤1.0 ºC / min
9, the minimum current: 200mA
10. With CE and CQC Certification
3. pay attention:
1, the user must be based on characteristics of their products, the required temperature control, proposed order models and specifications.
2, when the thermostat installation, temperature control is possible, snapping entire surface temperature, in order to achieve accurate temperature control purposes.
3, the installation will not be feeling the pressure tube deformation temperature, so as not to affect its performance.
4. Do not allow conductive or conductive material into the gas temperature control thermostat or contaminated surface so as not to affect the electrical insulation properties.
5. M4 machine wire mounting bracket not too long, otherwise it will damage the thermostat performance.
6, the electrical switch box ceramic pieces to be gently, to avoid damage.
7, capillary bend radius can not be less than 5mm.
Sample:
1. Free charge sample: Could provide(less than 10 PCS),freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 50~100PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
|
Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.
Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.
The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.
After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.
" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
