500M FTP Lan/Network Twisted Pair Cat6A S/FTP Cable For Structured Cabling System
Features:
High-Performance Data Communications Cable
Capable of 10GS High-Speed Applications
CMR Riser-Rated for Indoor Installations
Easy to Identify Color-Striped Pairs

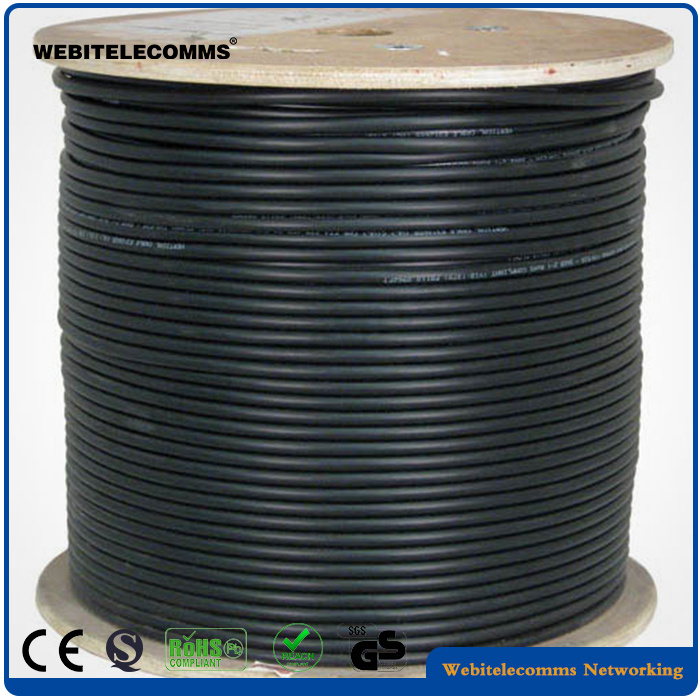

Delivered on 1000ft Wooden Spool
Exceeds ANSI EIA/TIA 568-C.2
Specs:
Rated Temperature: 70ºC
Rated Voltage: 30V
Product Standard Certification: ETL/UL
Flammability Test: RoHS
Conductor Material: Solid Bare Copper
Conductor Size: 23AWG
Conductor Diameter: 0.585mm
Insulation Material: PE
Insulation Average Thickness: 0.29mm
Insulation Diameter (±0.002mm): 1.15mm
Insulation Separator: PE
Shielding Material: Aluminum Foil
Drain Wire Material: Tinned Copper
Polyester Film
Jacket Material: PVC
Jacket Average Thickness: 0.55mm
Jacket Outer Diameter (±0.10mm): 7.8mm
Rip Cord
Color of Pairs:
Pair 1: Blue, White-Blue
Pair 2: Orange, White-Orange
Pair 3: Green, White-Green
Pair 4: Brown, White-Brown
Test Object: Jacket
Test Material: PVC
Before Tensile Strength (Mpa): >=13.8
Aging Elongation: >=100%
Aging Condition (ºCxhrs): 100x240
After Tensile Strength (Mpa): >=85% of unaged
Aging Elongation: >=50% of unaged
Cold Bend (-20±2ºCx4hrs): No Crack
RoHS Compliant
Conductor
Conductor | Solid Bare Copper 23AWG |
Insulation | PE (Skin-Foam-Skin) |
Total number of insulated conductors | 8,twisted in 4 pairs |
color code | blue x white, orange x white, green x white, brown x white |
Individual pair shield | Aluminum foil, providing 100% coverage, foil face out |
Overall shield | Tinned copper braid |
Drain wire | None |
Finished Products

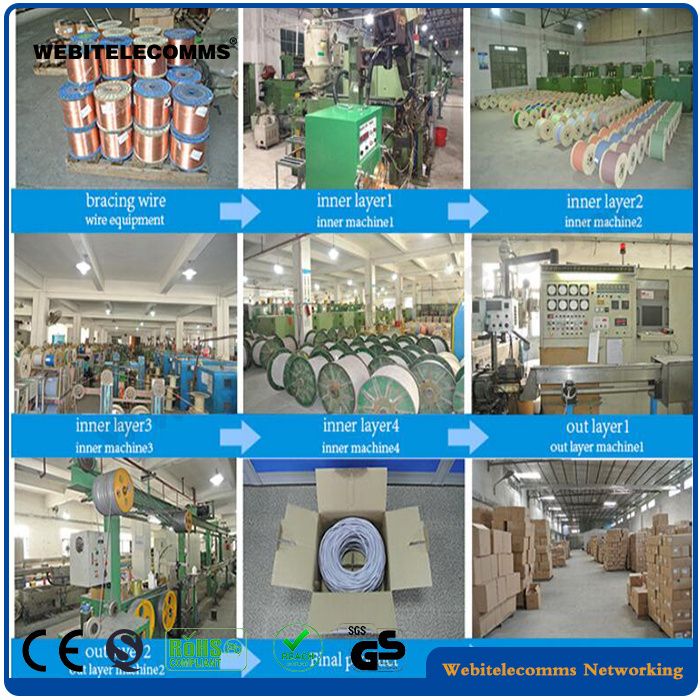

Cable Production

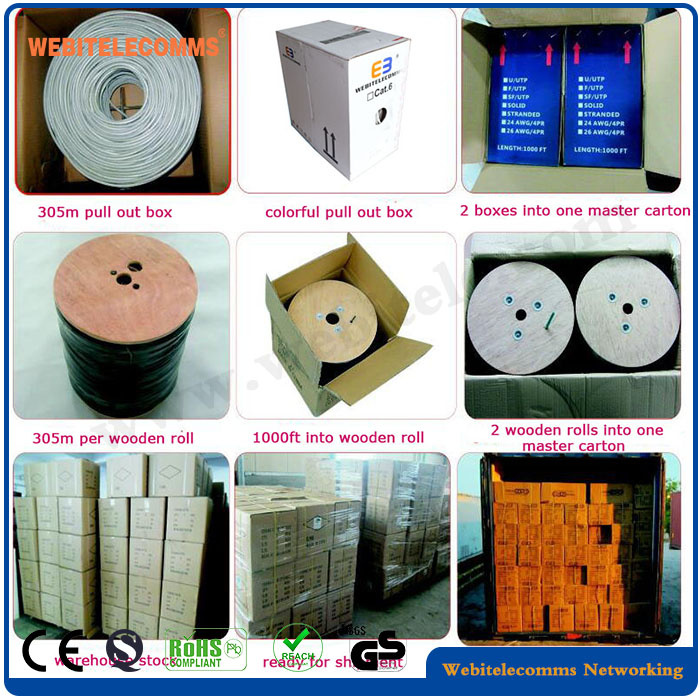

Cable Packing

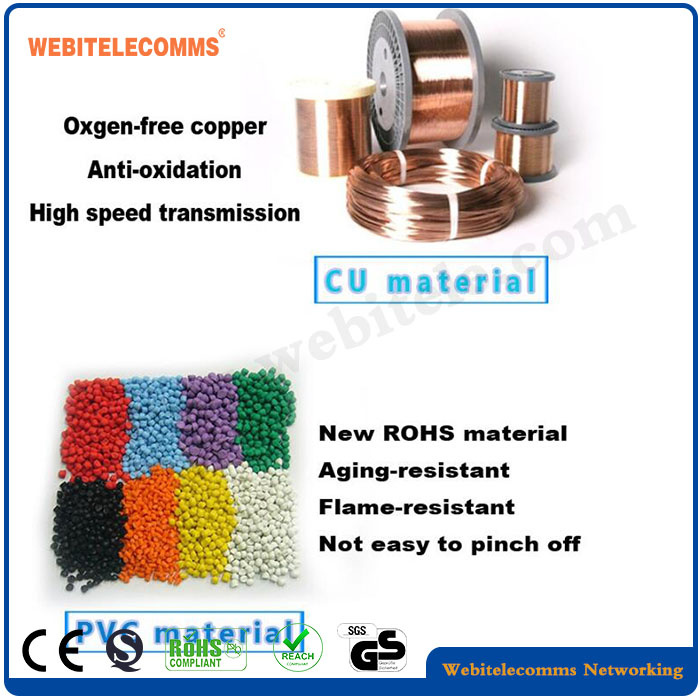

Material
