| Prod Model: |
PC12 |
| Pressure Range: |
-100kpa...0~35kpa...10MPa |
| Pressure Reference: |
Gauge, Absolute, Sealed Gauge |
| Input Impedance: |
2KΩ-5KΩ |
| Zero Output: |
±2mv |
| Accuracy: |
±0.25%F.S. (Typical) |
| Excitation: |
1.5mA (Typical), 10VDC |
| Operating Temp.: |
-40ºC-125ºC |
| Housing Material: |
304 |
| Diaphragm Material: |
316L |
| Oil Filling: |
M20 |
Product Description
- Piezoresistive silicon chip employed
- Perfect long term stability
- MEMS Technology

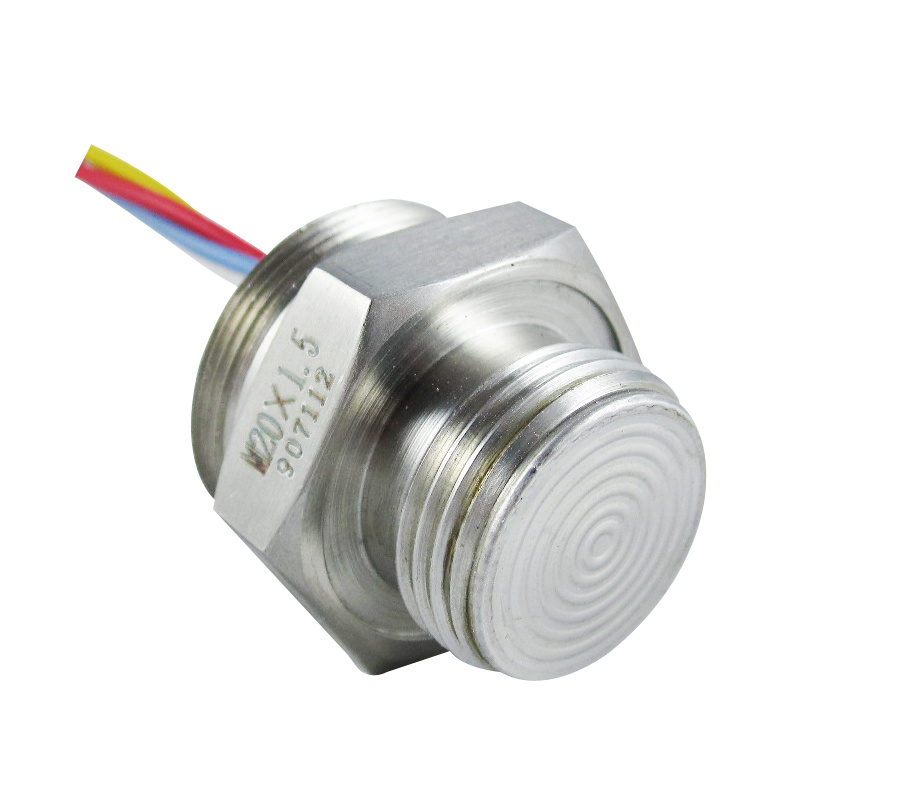

PC12 Pressure Sensor is a flush diaphragm sensor. A high sensitivity silicon pressure chip is employed in the transducer. The sensor is welded within the housing, and no leakage will happen. It is more reliable compared with O-ring sealing for leakage.
It can be used in sanitary industry with olive oil/M20 filling, or silicon oil filling in non-clogging application.
Caution
1. Please do not touch the diaphragm by finger and other hard objects, or it may be damaged.
2. The sensor filled with olive oil is for sanitary application. It can't work when the temperature is below 0ºC, because the olive oil will freeze below 0ºC.

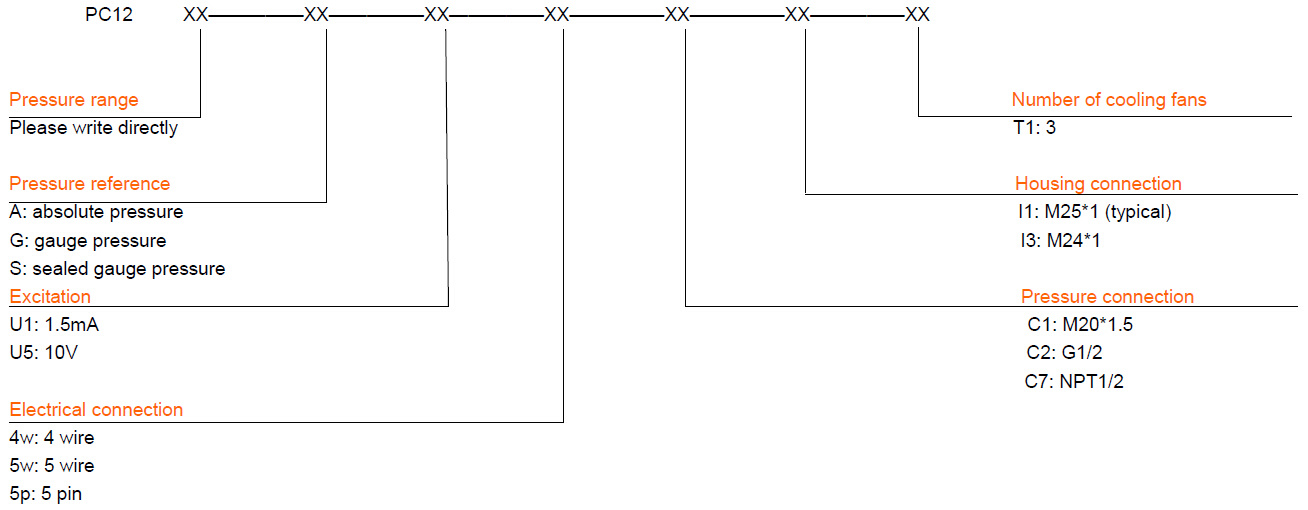

Pressure range
|
| Pressure range | -100kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa |
| Pressure reference | Gauge pressure | Absolute pressure | Sealed gauge pressure |
| Overpressure | 300%F.S.(≤70kPa) | 200%F.S.(<25MPa) | 150%F.S.(≥25MPa) |
Output signal
|
| Zero output | ±2mV |
| Span output | 1.5mA excitation: ≥40mV (≤35kPa); ≥60mV (Other ranges)
10V excitation: ≥60mV (≤35kPa); 80-120mV (Other ranges) |
Specification
|

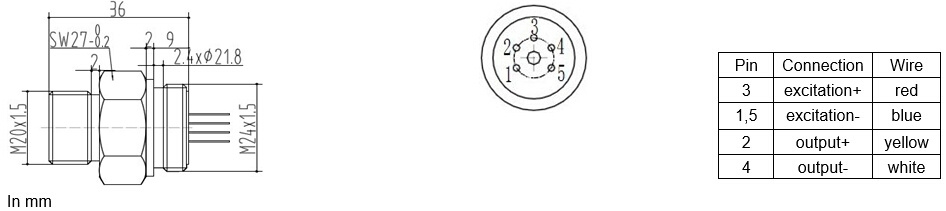

| Accuracy (linearity, repeatability and hysteresis) | ±0.25%F.S. (Typical) |
| Excitation | 1.5mA | 10VDC |
| Compensated temp. | 0ºC-60ºC (≤35kPa) | -10ºC-70ºC (Other ranges) |
| Operating temp. | -40ºC-125ºC |
| Medium temp. | -40ºC-125ºC |
| Storage temp. | -40ºC-125ºC |
| Zero temp. coefficient | 0.02%F.S. /ºC(≥100kPa) | 0.04%F.S. /ºC(<100kPa) |
| Span temp. coefficient | 0.02%F.S. /ºC(≥100kPa) | 0.04%F.S. /ºC(<100kPa) |
| Insulation resistance | >200Mohm/250VDC |
| Input impedance | 2kΩ-5kΩ |
| Long term stability | ≤0.2%F.S.S./year |
| Vibration | 20g (20-5000HZ) |
| Shock | 100g (11ms) |
| Response time | ≤1ms (up to 90%F.S.) |
| Lifetime | 10*106 (cycles) |
| Oil filling | M20 |
| O-ring | NBR, Viton |
| Housing material | Stainless steel 304 |
| Diaphragm material | Stainless steel 316L |
| Medium compatibility | All the liquids and gases compatible with the diaphragm |
| Wire connection | 4 wire (typical) | 5 wire (available) 39×φ0.015, Silicon shielded, 200ºC bearing |
| Pin connection | Kovar pin (0.6um Gold platted) |
| Weight | 135g(approx.) |
