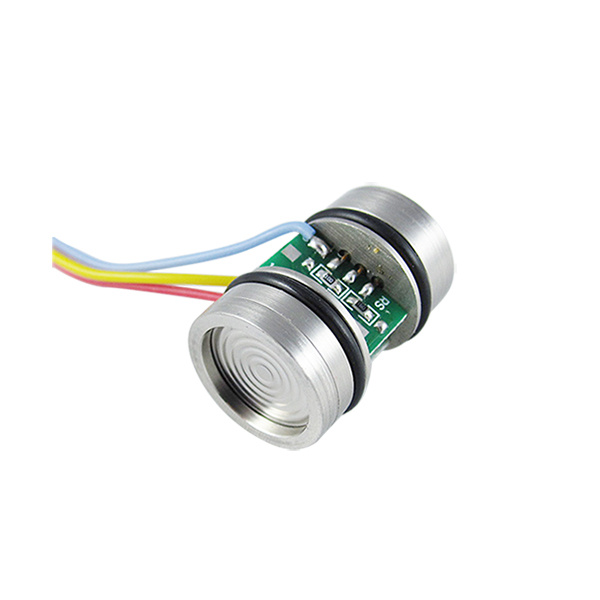

Piezoresistive Silicon Differential Pressure Sensor (PC10D)

Prod Model:	PC10D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure Range:	0~10kpa...2.5MPa
Pressure Reference:	Differential Pressure
Zero Output:	±2mv
Span Output:	≥40mv (≤35kpa) ≥60mv (Other Ranges)
Accuracy:	±0.25%F.S. (Typical)
Excitation:	1.5mA (Typical)
Operating Temp.:	-40ºC-125ºC
Housing And Diaphragm:	316L
Oil Filling:	Silicon Oil (Typical)

Nanjing Wotian Technology Co., Ltd. Was established in 2005, specializing in the production of pressure sensors. It is the leading domestic manufacturer of pressure sensors, with existing staff 260. The annual production of pressure sensors is more than 100 million. The products have been exported to more than 60 countries and regions. Wotian has established companies in Germany, United States and South Korea. The company has factories in Nanjing and Anshan, and is headquartered in the scenic Jiulong Lake International Headquarters Base in Nanjing. The foreign trade team is located in Shenyang, the center of Northeast Heavy Industry Base.

"Create value for customers" is always the goal pursued by the company. As a well-known brand in domestic pressure sensor industry, Wotian has always been taking rejuvenating China's pressure sensor business as its mission, working diligently and step by step, striving to produce superlative pressure sensors and provide customers with the ultimate cost-effective pressure sensors.

The idea of "continuous improvement" has been deeply rooted among Wotian people who take "lean thinking" as the fundamental theory of production management. Wotian people believe in dream, integrity, honesty and goodness. Wotian has always been "responsible for trust", behaving as a conscientious enterprise contributing to social progress and people's well-being.
