Piezoresistive Silicon Sanitary Flush Pressure Transmitter with Ce (PCM350)

Name: Piezoresistive Silicon Sanitary Flush Pressure Transmitter with Ce (PCM350)
Brand: all-electronics-online.com
SKU: 665703792
Availability: InStock
Rating: 5 (144 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	5/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Sanitary application
Without blockage in measuring
Piezoresistive silicon chip employed
MEMS technology
CE certificate

PCM350 pressure transmitter is designed for sanitary industry and clogging free application with flush diaphragm.

Pressure range
Pressure range	-100kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa
Pressure reference	Gauge pressure \| Absolute pressure \| Sealed gauge pressure
Overpressure	300%F.S.(≤70kPa) \| 200%F.S.(<10MPa)
Output signal
Output	4 to 20mA \| 0.5 to 4.5V \| 1 to 5V \| 0 to 5V
Specification
Accuracy (linearity, repeatability and hysteresis)	±0.5%F.S. (Typical)
Supply	24VDC \| 12VDC \| 5VDC
Compensated temp.	-10ºC - 70ºC \| -20ºC - 85ºC
Operating temp.	-40ºC - 85ºC
Medium temp.	-40ºC - 300ºC
Storage temp.	-40ºC - 125ºC
Zero temp. coefficient	±1.5%F.S.max. (@-20ºC - 85ºC)
Span temp. coefficient	±1.5%F.S.max. (@-20ºC - 85ºC)
Vibration	20g (20-5000Hz)
Shock	100g (11ms)
Insulation resistance	100MΩ/250VDC
Response time	≤1ms (up to 90%F.S.)
Long-term Stability	≤0.2%F.S./year
Pressure connection	See "how to order"
Protection	IP65
Housing material	Stainless steel 304 (316L for wetted part)
Medium compatibility	All the liquids and gases compatible with the diaphragm.
Oil filling	M20
Electrical connection	DIN43650
Housing diameter	φ26.5 mm
Weight	180g (approx.)

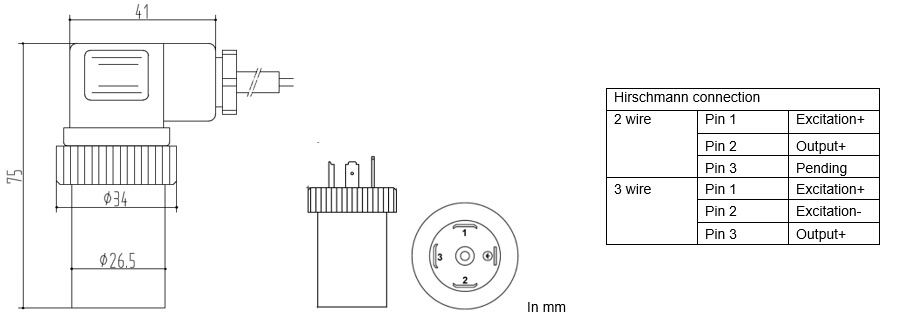

Electrical connection (DIN 43650)

Pressure connection

How to order

Prod Model:	PCM350
Markets:	North America,South America,Eastern Europe,Southeast Asia,Eastern Asia,Western Europe
Pressure Reference:	Gauge, Absolute, Sealed Gauge
Output:	4 to 20mA, 0.5 to 4.5V, 1 to 5V, 0 to 5V
Supply:	24VDC, 12VDC, 5VDC
Compensated Temp.:	-10ºC - 70ºC, -20ºC - 85ºC
Operating Temp.:	-40ºC - 85ºC
Temp. Drift:	±1.5%F.S.Max. (@-20ºC - 85ºC)
Housing Material:	304
Wetted Part Material:	316L
Oil Filling:	M20
Electrical Connection:	DIN43650
Accuracy Grade:	±0.5%F.S.
Pressure Range:	-100kpa...0~35kpa...10MPa
