Flying Wires Current Transformer Zmct205D/ Electronical Current Inductor
| Price: |
US $ 0.26-0.29/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union |

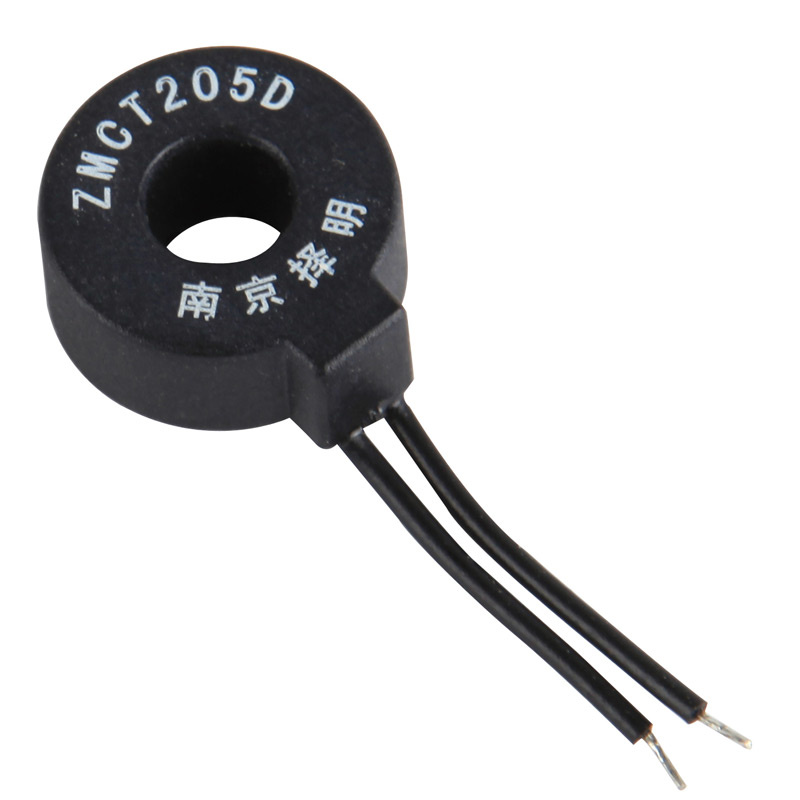

ZMCT205D current transformer
Features and application : Small size,high accuracy,good consistency,for simple current monitoring and control Key words: current transformer

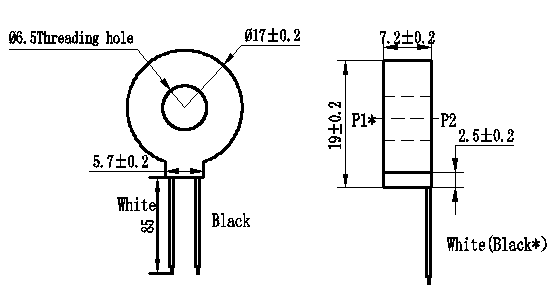

Structural parameters:
Front view Left View The main technical parameters:| Model | ZMCT205D |
| Rated input current | 5A |
| Rated output current | 5mA |
| turns ratio | 1000:1 |
| phase angle error | ≤60'(input 5A,sampling resistor 25Ω) |
| linear range | 0~8A(sampling resistor 25Ω) |
| linearity | ≤0.5%(5%dot ~120%dot) |
| Permissible error | -0.5% ≤ f ≤+0.5%(input 5A,sampling resistor 25Ω) |
| isolation voltage | 4500V |
| application | simple current monitoring and control |
| Encapsulation | Epoxy |
| installation | Output leads installation (conventional lead length shown in drawing) |
| operating temperature | -25ºC~+85ºC |
Direction for use:

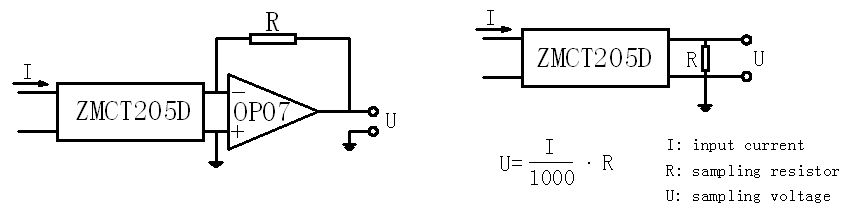

Figure I FigureII 1. ZMCT205D used for the measurement, the typical usage is shown in Figure Iand Figure II. R is a sampling resistor.
| Prod Model: |
ZMCT205D |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
| Installation: |
Output Leads Installation |
Nanjing Zelang Electronic Technology is a worldwide leader in the design, manufacturing and sales of miniature current transformers & voltage transformers for the electronic Measurement, electrical power system Protection Relay, Fault Recording. ZeLang Electronic has been working closely with the leading R&D teams to meet the demands of emerging technologies. Nanjing Zeming Electronic is our Headquarters, Qingxian Zeming Langxi Electronic is our factory established in 2009, it is a private enterprise and professionally produces micro precise current and voltage transformers, split core current transformer, DC immune current transformer, and nanocrystalline cores, major products such as: Digital display meter with micro transformer, electronic meters with transformer, TTU and negative control with transformer, relay protection with transformer, energy-saving socket and so on.
At present, total number of people is more than 1500, we have 1, 000 winding machines, 15 heat treatment equipment, the daily production rate of core is up to 1, 000, 000, and the daily production rate of transformers is nearly 500, 000.
For all of our products, samples can be provided for free, but the purchaser has to endure the freight. Most of our products has in stock, we keep special stock for the fast-moving items so that the urgent orders can be met quickly from stock. The delivery cycle is generally 7-10 days. We also can design products according to your requirements. We have two larger advantage of price and quality in world.
We insist that technology is the first, adhering to a high quality, high efficiency, low consumption and low cost route, provide best products, best service, leading by an excellent team, product technology is now in the national leading level, the variety of our product is more complete.
In producing technique aspect, according to technological requirements and characteristics of micro-transformer, we use winding machines imported from the USA, and employ experienced staff to build production line; Advanced equipment, excellent staff make the product quality and reliability been guaranteed.
On management aspect, we give full play to the advantages of private enterprise flexible and efficient, and at the same time, we absorb excellent enterprise mature management experience unceasingly, so that the outstanding characteristic of modern enterprise have been fully embodied in operation, in high efficiency \low consumption and under low cost, great advantages must be shown.
We always put the product quality in the first place and smoothly obtained many certifications.
