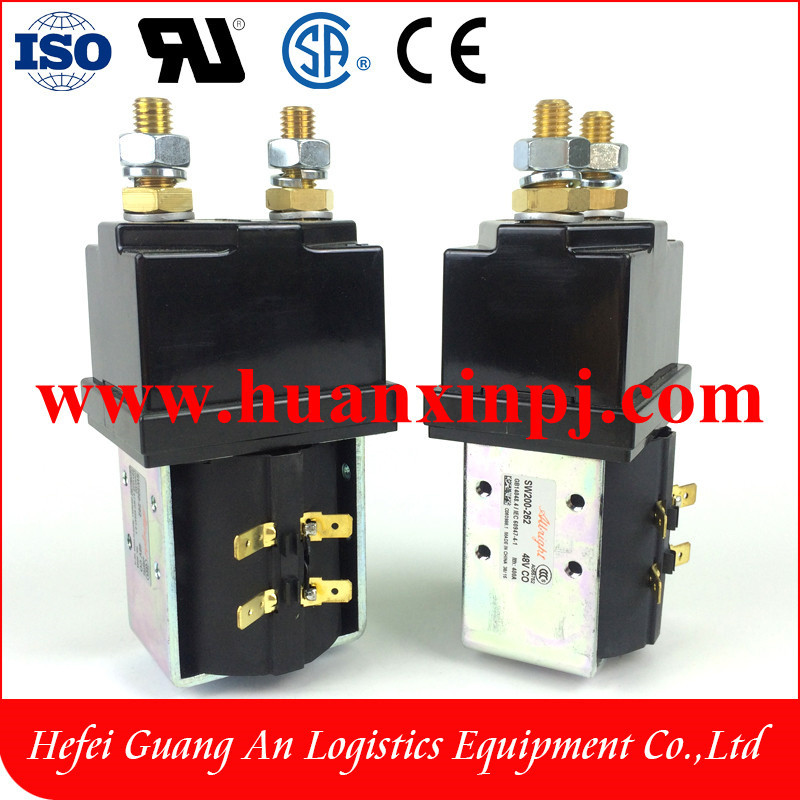

Product Description
| Product Name | DC Contactor |
| Brand | Albright Brand |
| Model Number | SW200-262 |
| Applied Model | Electric Forklift |
UNIQUE RANGE
The SW200 series of contactors has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks, airport tractors, etc.
They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.
The range comprises: Single Pole, on/off types(SW200), Single Pole normally closed types(SW210), paired version of these for motor reversing(SW200) and derivatives of these types to give various combinations and configurations.
COMPACT SIZE
The contactors are compact in size and are fully serviceable, with a full range of spare parts available.
EASY INSTALLATION
Mounting is by means of 5mm tapped holes in the switch frame together with a range of mounting brackets complete with screws and washers.
Coil connections are by means of 6mm spades of which two are supplied per terminal.
Contactor types SW202, SW204, SW205, SW208, SW213 and SW214 are supplied as an assembly which include4s a mounting bracket as a standard feature.
Mounting attitudes are detailed in the drawings on the following.
OPERATION COILS
Coil voltages ranging from 6 to 240 are available and these are wound for D.C. operation.
However coil can be fittd with a bridge rectifier for use from A.A. supplies.
Coils are normally wound for intermittent duty(up to 70% "on" time) but continuous duty version (100%) are also available.
