Genuine Albright Contactor Sw200-802 Matching with Curtis Controllers

Name: Genuine Albright Contactor Sw200-802 Matching with Curtis Controllers
Brand: all-electronics-online.com
SKU: 824143645
Availability: InStock
Rating: 4.8 (106 reviews)

Price:	US $ 50-100/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SW200-802
Certificate:	RoHS, Ce

Product Description

Product Description

1. Reference

Item	Albright DC Contactor
Model	SW200-802
Voltage	80V
Current	400A
Size	24 x15 x15 mm
Used in	Electric Forklift
HS code	8536411000
Net Weight	1.32 KGS

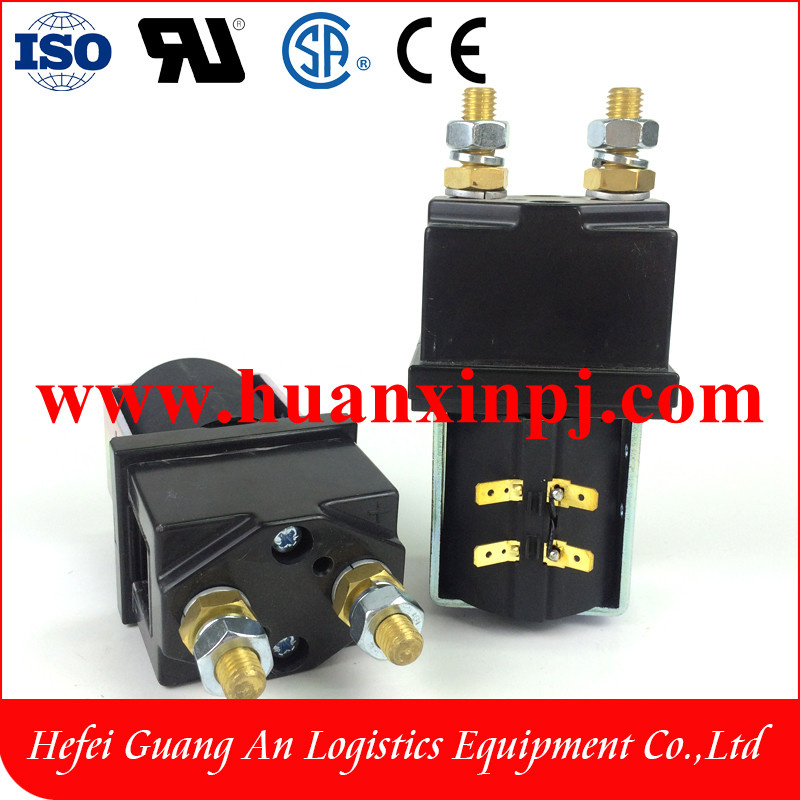

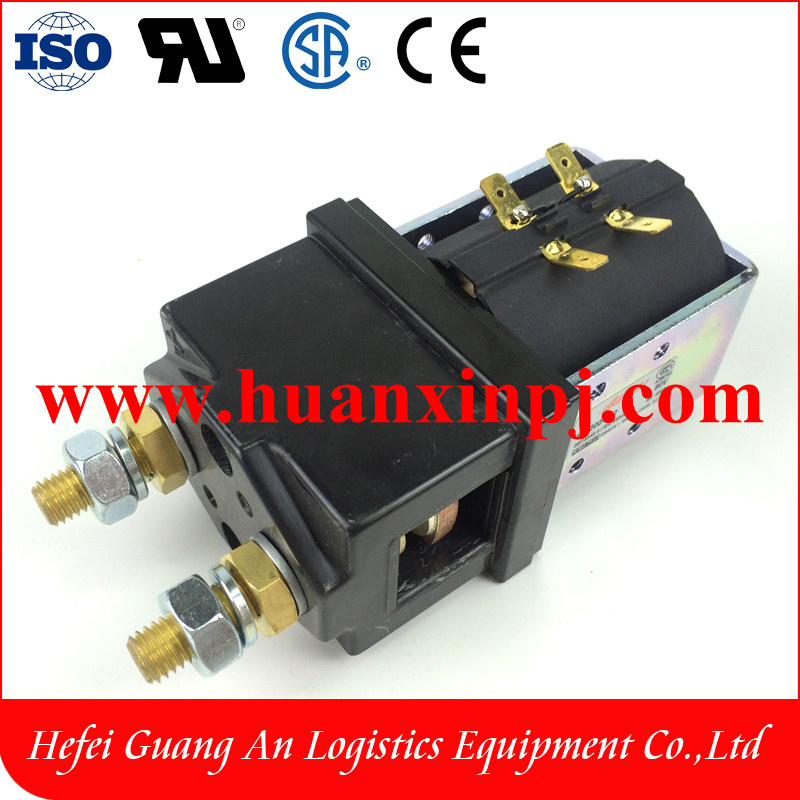

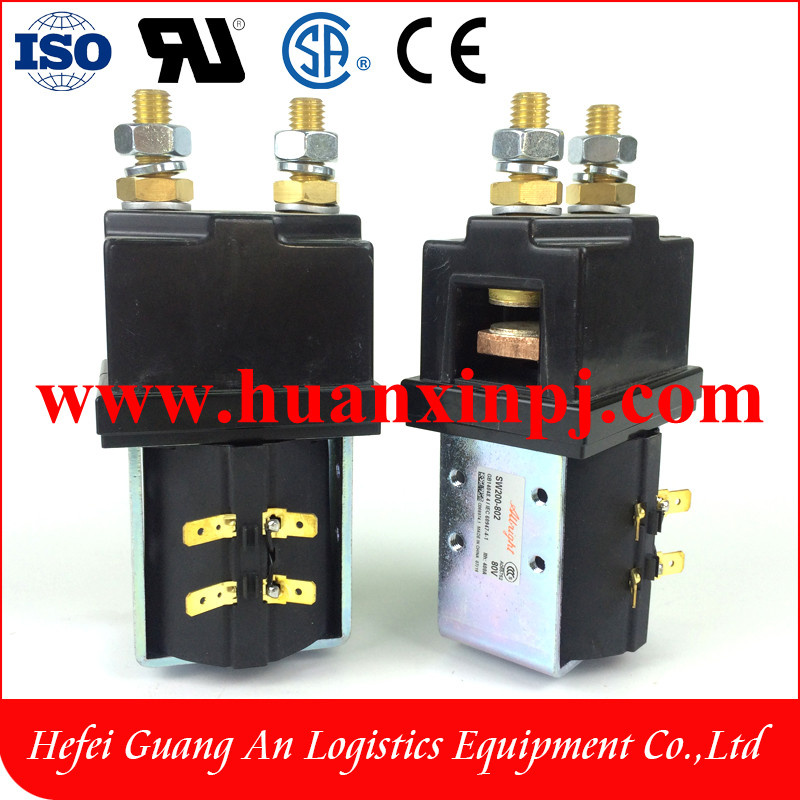

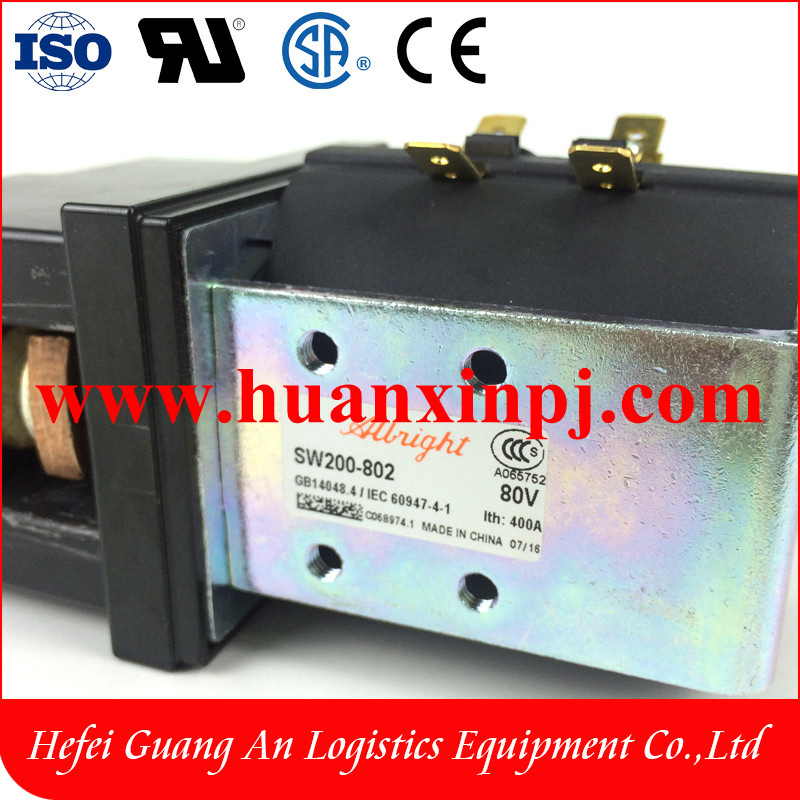

2. Product Details

3. Product information

The SW200-802 motor reversing type of contactor has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks. The SW200-802 is a monoblock construction, resulting in a compact design which is compatible with modern electronic control systems. Developed for both interrupted and uninterrupted loads, the SW200-802 is suitable for switching Resistive, Capacitive and Inductive loads.

• Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance).

• Uninterrupted current: no or infrequent load switching requirements (maintains a lower contact resistance).

The main contact circuit, designed for motor reversing, has a built in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuit. The DC182B-537T  has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity. The DC 182B-537T  main stud terminals can be configured in a variety of ways in order to suit the application. Coil connections are by means of 6.3mm spades and mounting is via the supplied bracket and can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.
