Prod Model: |
PT30 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size (mm): |
76*51*25 |
Weight (G): |
72 |
Backup Battery (mAh): |
1900 |
GPS Module: |
Ublox 7 |
GSM Chip: |
M35 |
Data Logger: |
2MB |
Microphone: |
Earphone |
Waterproof: |
Yes |
Sos Buttons: |
3 |
Power Saving: |
Yes |
Type: |
GPS Tracker |
Use: |
Hand Held |
Screen Size: |
No Screen |
Operating Principle: |
Personal Tracker |
Port Number: |
3 Sos Button, 1 Earphone Port, 1 USB Port |
Carrier Frequency: |
850/900/1800/1900MHz |
Model: |
PT30 |
Brand: |
Topshine |
Chip: |
GPS Chip: Ublox 7 GSM Chip: Gc65 |
Certification: |
Ce RoHS SGS |
Product Description

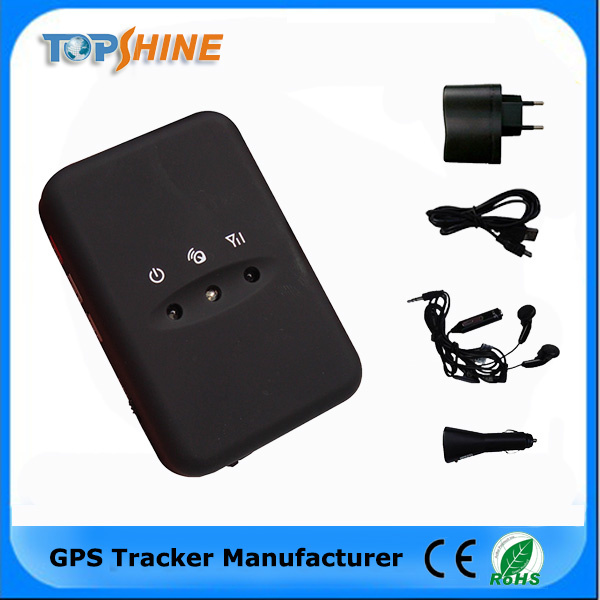

Personal Pet Asset PT30 GPS tracker
Products Overview
PT30 is a personal remote position device, small size, build-in battery, easy to use. PT30 can be used as an emergency cellular phone and locator. It allows speed dialing of 3 numbers for 2-way voice conversation. PT30 sends alert and call the pre-defined number for immediate assistance. It is suitable for the care & protection & rescue of the elderly, children, patients, wild area explorer, tourists or pets etc. PT30 has good sensitivity and stable performance, tracking by web-based platform or by SMS commands.
Application
* People tracking & security, like the Kids, the Elderly, the tourists
* Assets tracking & security
* Pets tracking & Security
Specification
Items | Specifications |
Dimension | 75*51*25mm |
Weight | 96g |
Input voltage | DC 4.5V~5.5V/400mA (mini USB port) |
Back-up Battery | 1900mAh/3.7V |
Power Consumption | 65mA standby current |
Operating Temperature | -20°C~75°C |
| |
Humidity | 5%~95% |
Work Time | working hours up to 41 hours consistently by set interval time 1 minute to send data to platform. |
LED | 2 LED lights to show GPS, GSM status |
Button | 1 SOS, 2 Call and 1 power on/off |
Microphone | Default |
Memory | 2M Byte |
Sensor | Motion sensor |
GSM Frequency | GSM 850/900/1800/1900MHz |
GPS Chip | Latest GPS SIRF-Star III Chipset |
GPS Sensitivity | -159dB |
Positioning Accuracy | 10meters, 2D RMS |
Neutral | Dimension (mm) | Weight (KG) | Capacity |
Box | 145*140*45 | 0.25 | 1 set |
Carton | 470x340x310 | 9 | 30 sets |
Features & Function
* No installation, mini size, easy taken
* Track by SMS/GPRS (TCP/UDP)
* Track on Demand
* Real Time tracking via the web-platform
* Track by time Interval
* Two-way conversation
* SOS panic button
* Built-in backup 1900mAh battery, working hours up to 41 hours consistently by set interval time 1 minute to send data to platform.
* Geo-fence Alarm
* Built-in sensor for power saving & GPRS flow saving mode (sleep mode)
* Speeding Alarm
* GOOGLE map URL for location via SMS, which shows you location on map via mobile phone.
* Built-in 2MB memory & position logging capacity up to 10,000+waypoints even no GPRS signal
* Get the physical address name via SMS.
* Three buttons for making phone call and/ or sending message
Welcome to test our free tracking software:
Tracking platform site: www.track-car.com
Username: hongkong
Password: 123
Tracking platform site: www.tstrack.net
Username: test1
Password: 123
What can we do for you:
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
