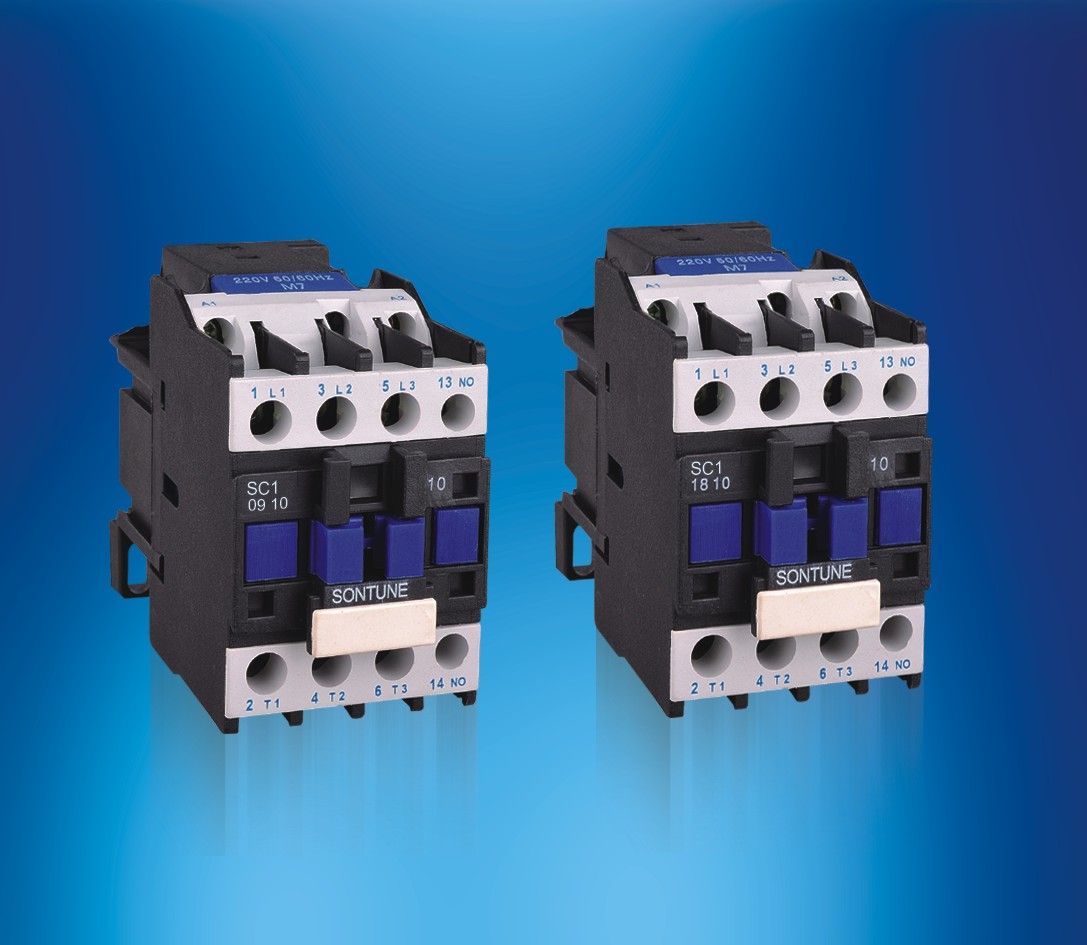

Free Sample 3 Phase Magnetic 110V 220V 380V AC Contactor

Name: Free Sample 3 Phase Magnetic 110V 220V 380V AC Contactor
Brand: all-electronics-online.com
SKU: 839757745
Availability: InStock
Rating: 4.3 (81 reviews)

Price:	US $ 1.85-2.25/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

LC1-D Series Application
· LC1-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz,
rated current up to 95A, for making, breaking, frequently starting & controllingthe AC motor.
· Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter.
· The product conforms toIEC60947-4-1 standard.

Volts

110

220

230

240

380

400

415

440

500

600

50Hz

60Hz

50/60Hz

Type		LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Rated working current (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated working current (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standard power ratingsof 3-phase motors 50/60Hz in category AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
Number of the contacts	3P+NC					3P+NC+NO

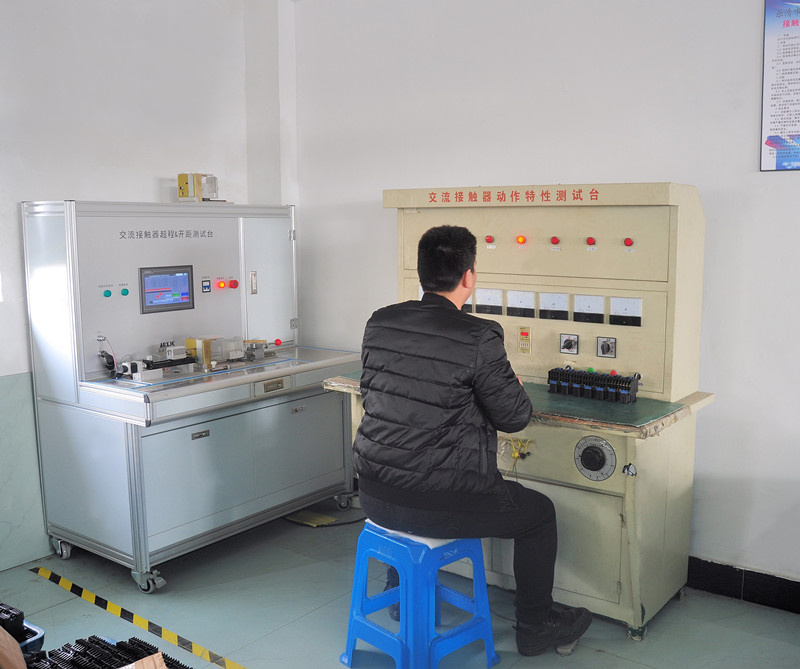

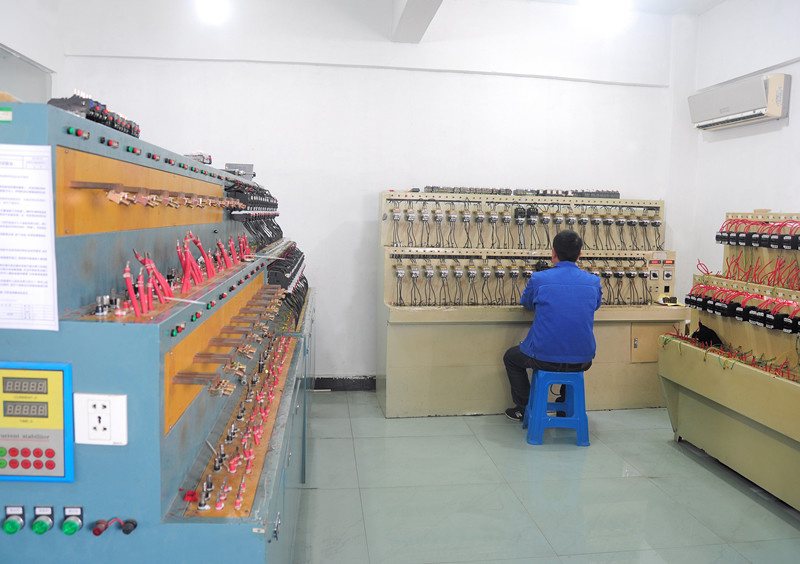

YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
