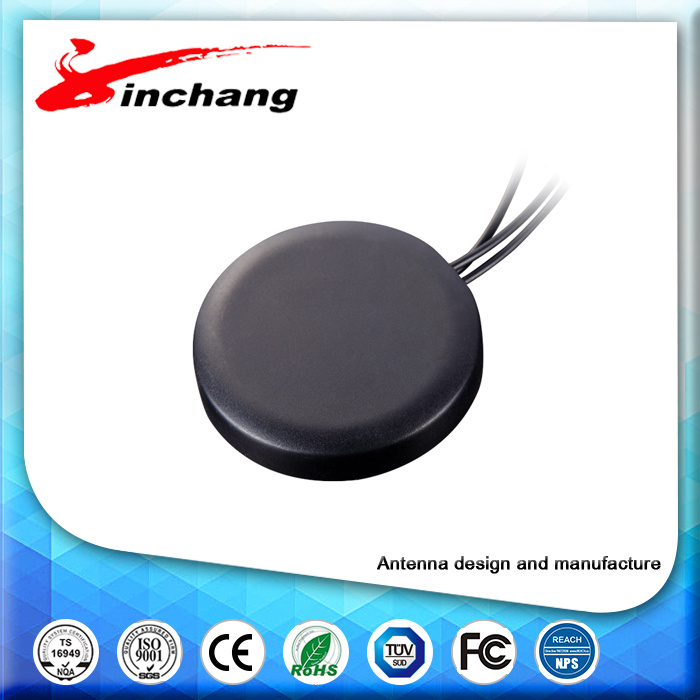

Prod Model: |
JCB008 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
D71X14mm |
Cable: |
Rg174 3m/5m or Others |
Mounting: |
Magnet/Adhesive/Screw |
Connector: |
SMA, MCX, Fakra and So on |
Gain: |
28 |
Frequency: |
1575.42/1602MHz 698-2700MHz |
Usage: |
Car Antenna |
Operating Wavelength: |
Microwave |
Directionality: |
Directional Antenna |
VSWR: |
1.5 |
Material: |
ABS |

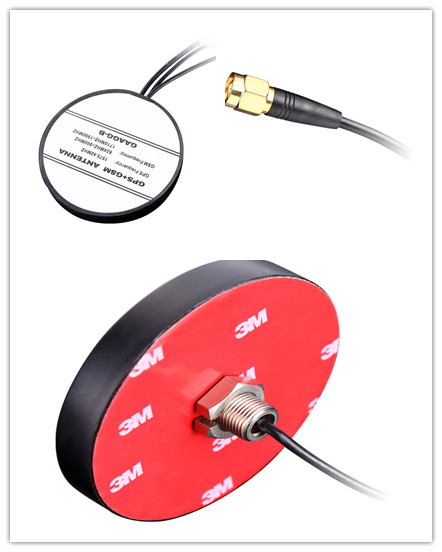

Product Description
Electrical Characteristics
Item | Specifications |
GPS Antenna | Dielectric Antenna | Center Frequency | 1575.42±1MHz |
Band Width | CF±5MHz |
Polarization | RHCP |
Gain | 2dBic(Zenith) |
V.S.W.R | <1.5 |
Impendance | 50Ω |
Axial Ratio | 3dB(max) |
LNA | Gain | 28±2dB |
Noise Figure | <1.5 |
Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz |
V.S.W.R | <2.0 |
Supply Voltage | 2.2~5V DC |
Current Consumption | 5~15mA |
GSM Antenna | Frequency Range | 698~960MHz/1710~2690MHz |
V.S.W.R | ≤3.0 |
Polarization | Linear |
Gain | 2dBi |
Impendance | 50Ω |
Mechanical | Cable | RG174 |
Connector | SMA/MCX/FAKRA or others |
Radome Material | ABS |
Mounting Method | Magnet/Adhesive |
Environmental | Operating Temperature | -40ºC~+85ºC |
Relative Humidity | Up to 95% |
Ingress Protection | IP65~IP67 |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |

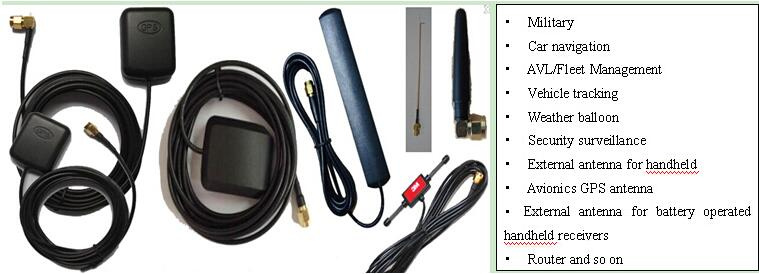

Application
PartnersWorking environmentAdvantage
1. Main products: GPS/GLONASS/COMPASS antenna,4G/3G/2G GSM/GPRS antenna,WIFI antenna as well as combination antennas, Various cable assemblies and connectors are also available.
2. Certification:CE,TUV,FCC,TS16949,ISO9001:2008,Reach certificated,comply to ROHS.

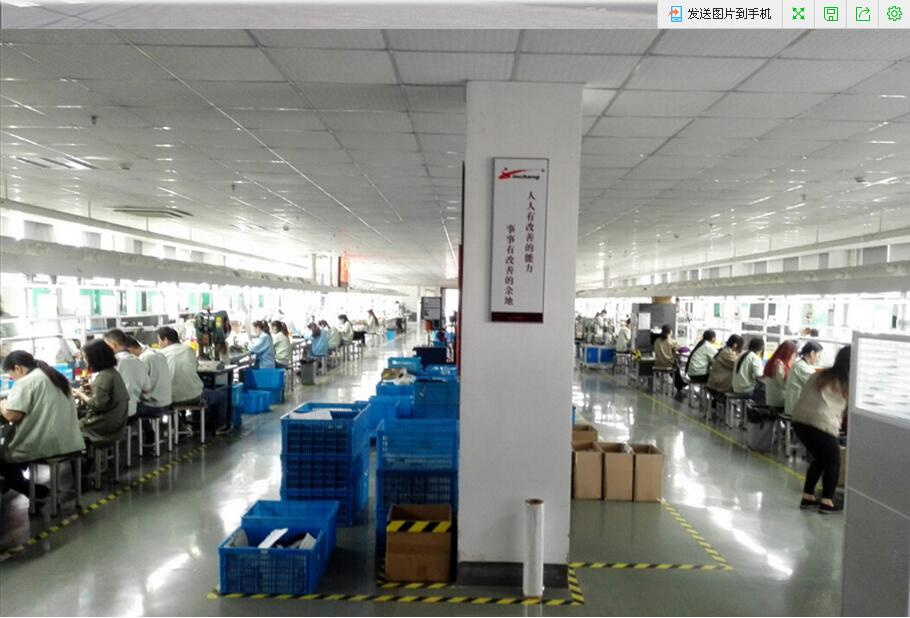

3. Capacity: 30,000 units daily, 25000 square meter factory area,over 200 workers.

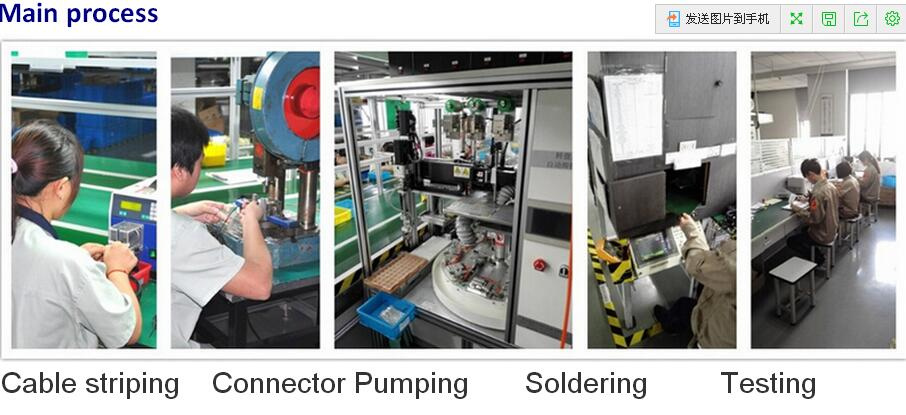

4. QC:whole sets of Agilent test equipment to assure quality.
5. Business partners: Amphenol(China,India,Malaysia),ARC wireless solution in USA, Teltonika in Lithuania, Telit in Israel, NEC in Japan and so on.
PAQ
Q: Can I get one sample?
A: Yes, sample is for free.
Q: Have gps gsm combo antenna 100% assembles well in stock?
A: No, allgps gsm combo antenna will be newly assembled according to your orders including the samples.
Q: What's the delivery time?
A: 1-4 days for the sample, 5-10 days for quantity below 5K, 10-30 days for the quantity below 20K.
Q: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q: What's the payment term?
A:T/T, Paypal, western union etc.
Q:May I visit your factory?
A: Sure, welcome any time.
Q: How long of the warraty?
A: one year and can repair for the whole life.
