Frequency Conversion System Control Handheld PCBA Board Supplier
Price: |
US $ 5-50/Piece |
Trade Terms: |
FOB,CIF,FCA |
Min Order: |
10/Piece |
Pay Type: |
T/T,Western Union,Paypal,Money Gram |

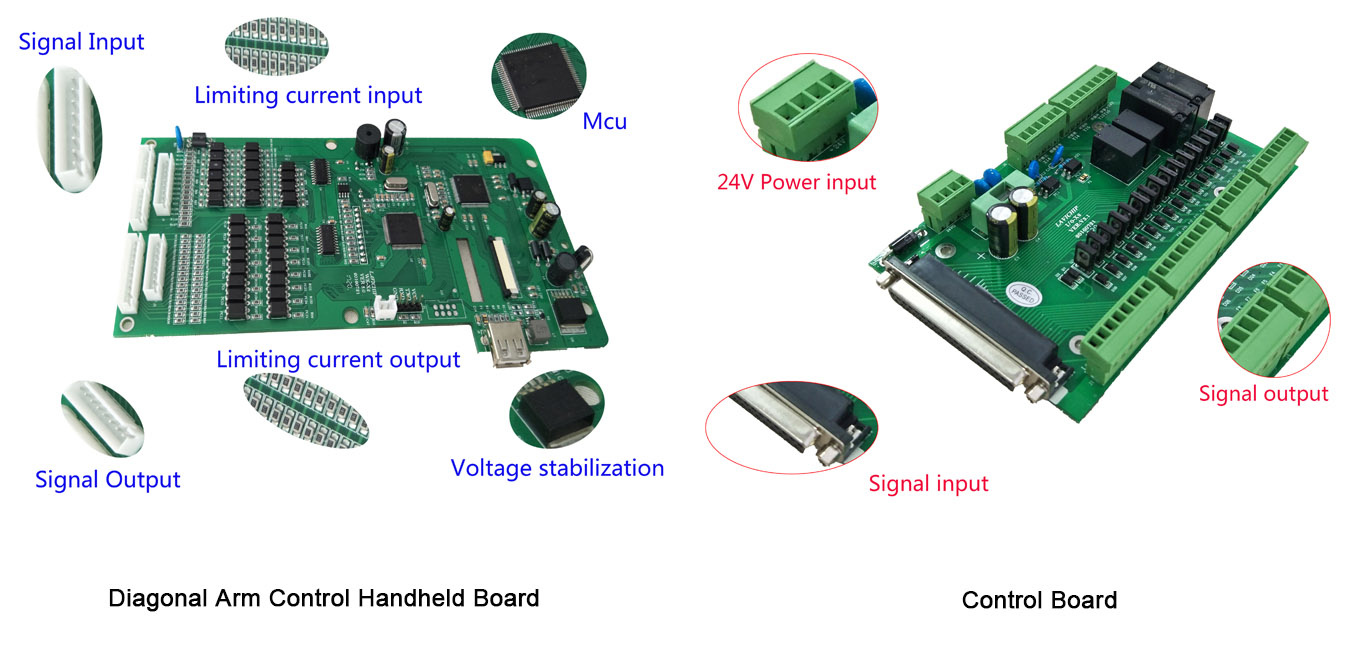

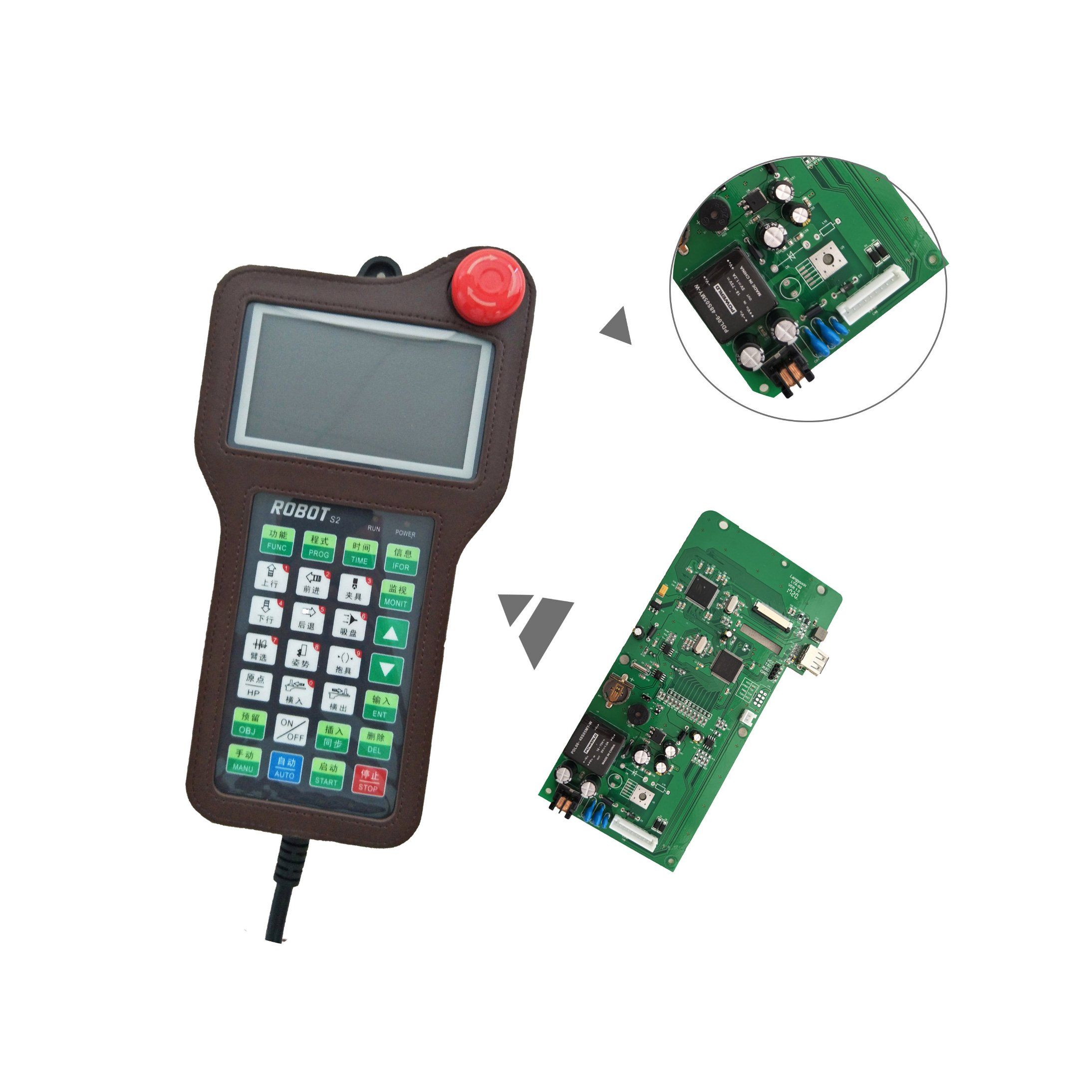

Product DetailFrequency Conversion System Control Handheld PCBA Board Supplier1.Production IntroduceController with 16-bit ARM processor, equipped with SOLOMON dedicated display driver chip can display 4.3-inch large-screen color, so that the program processing faster, and can run multiple instructions in parallel. A large number of high-end all-pneumatic manipulator or non-standard industry.Performance Advantage
4.3-inch large-screen color display, to provide users more human-computer interaction interface information.
open action instruction instructions, easy to learn and easy to use.
multi-channel backup 1/0, can be flexible to teach, to adapt to different production needs.2.Appliance Range:A.Vertical manipulator B.Slant Arm / Arms 3.System Featuresa. High stability, High reliability
Input filter and power down protection function
According to a panel. The German PET, high precision technology, in the longest life
After strict three prevention treatment
Inverter protection, output point over-current protectionb. Small models, high configuration, large capacity, high speed
4.3-inch TFT LCD screen, resolution 480 * 272, the screen brightness of 450 / m2
Permanent data storage, there is no data loss
Up to 100 programs, of which 18 are fixed and 82 can be editedc. Rich features to meet complex multitasking requirements
The user can self - USB update boot the main screen
More flexible configurable reservation, including input 3 groups, output 3 groups can freely set its function
Support Chinese and English language switching
Plug and Play USB update
Sub - level intelligent alarm prompt, user - friendly operation
d.Reliable user rights security
Support hierarchical password protection4.Detail Part5.Teachnical Data: Item | Index |
System |
Processor |
CPU Cortex-A8 highest frequency 1GHZ + 32-bit DSP |
System power consumption | DC24V ~ 0.12A P = 2.8W |
Response time | 0.01S |
Enter 15groups | Input Method | Contact input or NPN input (leakage type, optocoupler isolation), impedance 4.7K |
Input Current | DC24V 5MA |
Output 16groups | Output Method | NPN open collector output, current 0.5A, with short circuit overload protection |
Relay output DC30V 10A, 250V / 5A |
Overcurrent protection | Transistor 0.5A self-healing protection device |
Operating temperature | -10 ° C - + 65 ° C Temperature 90% |
Resistant to vibration | Displacement: 10mm, acceleration: 10M / S2, frequency 5 ~ 150HZ |
Q: How to get a sample?A: Sample order acceptable, pls contact us for details.Q: What is the leading time for sample and mass order?A: Sample order will take 7-10 days, mass order will take 25Q: Can we do OEM?A: Yes, we accept OEM service.Q: What is the MOQ?A: We set 10pcs/model as MOQ, with neutral package Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.
Delivery Time for PCB board:
1) PCB production time: sample: 3-4 days / mass production: within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: samples: whthin 2 days / mass production: within 5 days
We sincerely hope to establish longtime and friendly business relationship with you. If you have interest in our product, please don't hesitate to contact us !
Prod Model: |
LYX-X2 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Assembly Ttpe: |
SMT,DIP |
SMT Efficency: |
Qfp,Tqfp,Qfa,Plcc |
Components Precision: |
up T0 01005.0201.0402 |
Services: |
PCB Fabrication,Components Sourcing and Assembly |
Application: |
Industral Control System |
RoHS Complaint: |
Yes |
UL Approved: |
Yes |
ISO Approved: |
Yes |
Metal Coating: |
Copper |
Layers: |
Multilayer |
Base Material: |
FR-4 |
Certification: |
SGS |
Customized: |
Customized |
Condition: |
New |
Mode Of Production: |
SMT and DIP |
