Product DetailProfessional Three Axis Pulse Version Handheld PCBA Board Provider1.Production IntroduceThis product is a universal multi-axis motion control system,Take the pulse control mode,Suitable for all servo drives,Products to take DSP + FPGA motion algorithm control,Support conditional jump,Multiple subroutines run independently in parallel.

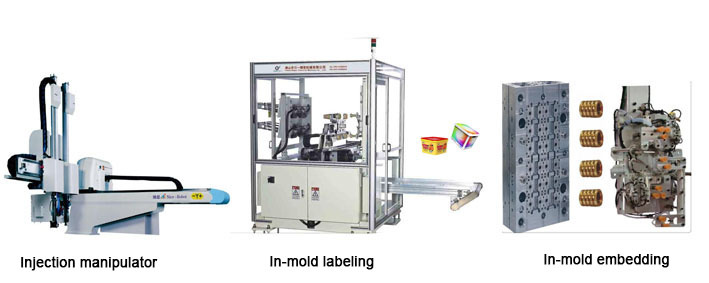

2.Appliance Range:A.Injection manipulator B.In-mold labeling C.In-mold embedding
Three - axis High speed machine dedicated,Support multi-segment variable speed,Suitable for high-speed ,Suitable for high-speed removal of different products,High-speed stacking,To ensure stability.
Industry-specific control algorithm, the system, servo, with the performance of the ultimate play to ensure fast and safe and reliable. 3.System Featuresa. Reliable hardware platform
Full closed loop control
Pulse output using electrical isolation, anti-interference ability stronger
Output point overcurrent protection
System built-in hand whee
b. Strong positioning and high-speed processing capabilities
Powerful CPU processor,
Excellent motion control technology,Motion control using DSP + FPGA independent algorithm.
The man-machine interface takes the A8 ARM processor.
Up to 6 axes can be supported linkage.c. Design for industry applications for injection molding
The origin can be set to an in-mold or die.
Customize the tutorial function
USB upgrade USB full data backup.
Support hierarchical password protection.
4.Teachnical Data: | Item | Index |
| System | Screen | 8-inch TFT true color LCD screen, resolution 800 * 600, screen brightness 250cd / m2 |
| Hardware | HMI + main control board + expansion board, using RS422 communication protocol |
| Processor | CPU Cortex-A8 highest frequency 1GHZ + 32-bit DSP |
| Servo Control | Support linkage | Support |
| Motor Configuration | Relative encoder, easy maintenance, motor universal |
| Manual Fine Tuning | Support |
| Enter 56 groups | Input Method | Contact input or NPN input (leakage type, optocoupler isolation), impedance 4.7K |
| Input Current | DC24V 5MA |
| Output 40 groups | Output Method | NPN open collector output, current 0.5A, with short circuit overload protection |
| Relay output DC30V 10A, 250V / 5A |
| Overcurrent protection | Transistor 0.5A self-healing protection device |
| Number of programs | Up to 100 programs |
| System power consumption | DC24V -0.32A P=7.6W |
| Operating temperature | -10 ° C - + 65 ° C Temperature 90% |
| Upgrade method | USB Plug and Play USB |
| Language mode | Support in English and Chinese switch |
| Intelligent alarm | Sub-two intelligent alarm tips, user-friendly operation |
5.Detail Part
