(FTTH) 1 Core Drop Cable Optical Fiber Drop Cable Technical Specification

Name: (FTTH) 1 Core Drop Cable Optical Fiber Drop Cable Technical Specification
Brand: all-electronics-online.com
SKU: 805548535
Availability: InStock
Rating: 4.7 (129 reviews)

Price:	Negotiable/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	FTTH
Application:	Communication
Certification:	ISO9001
Type:	FTTH
Sheath Material:	LSZH

Product Description

1core/ 2 Cores FRP FTTH Drop Optic Fiber Cable (GJXFH-2B1)/Indoor Fiber Optic Cable

Description

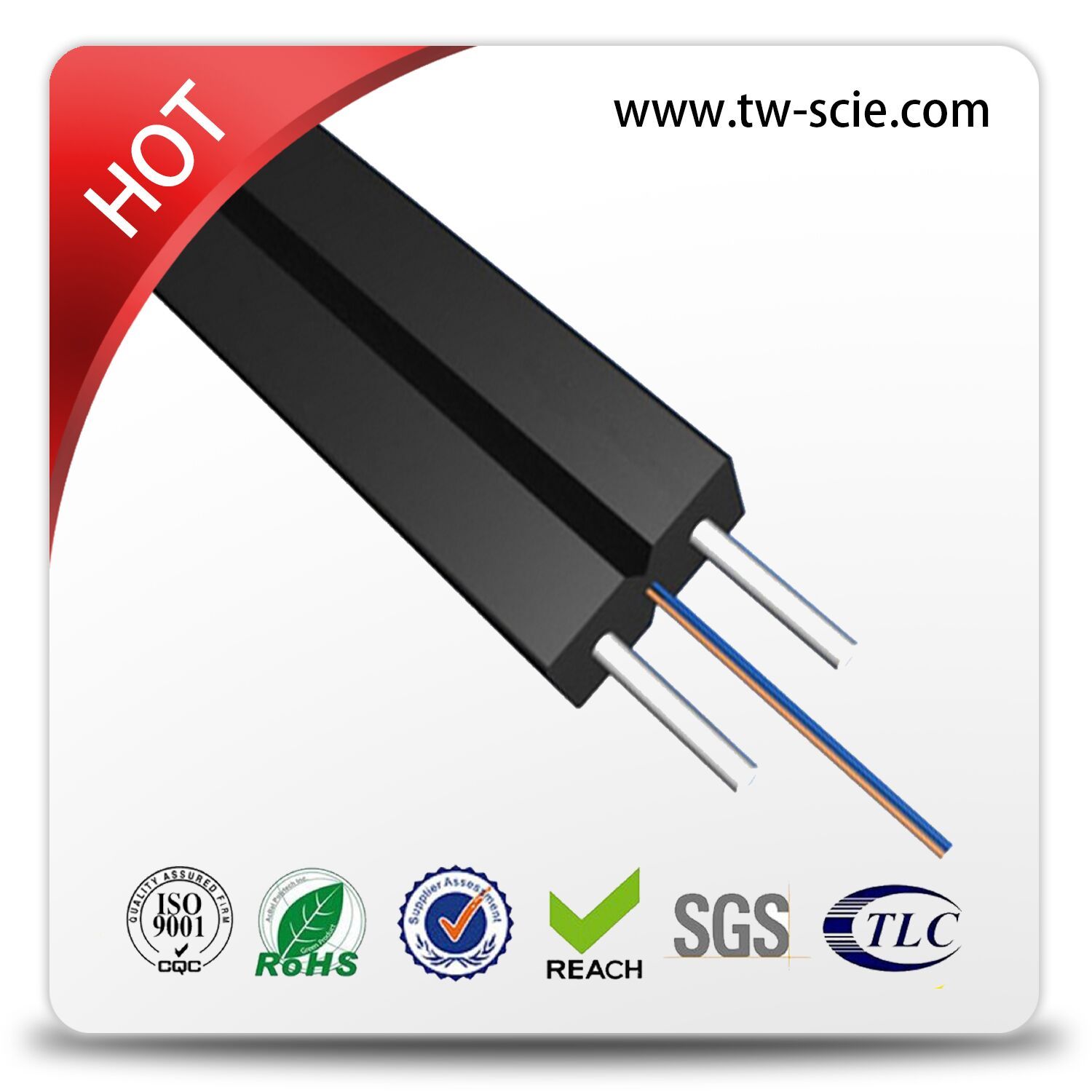

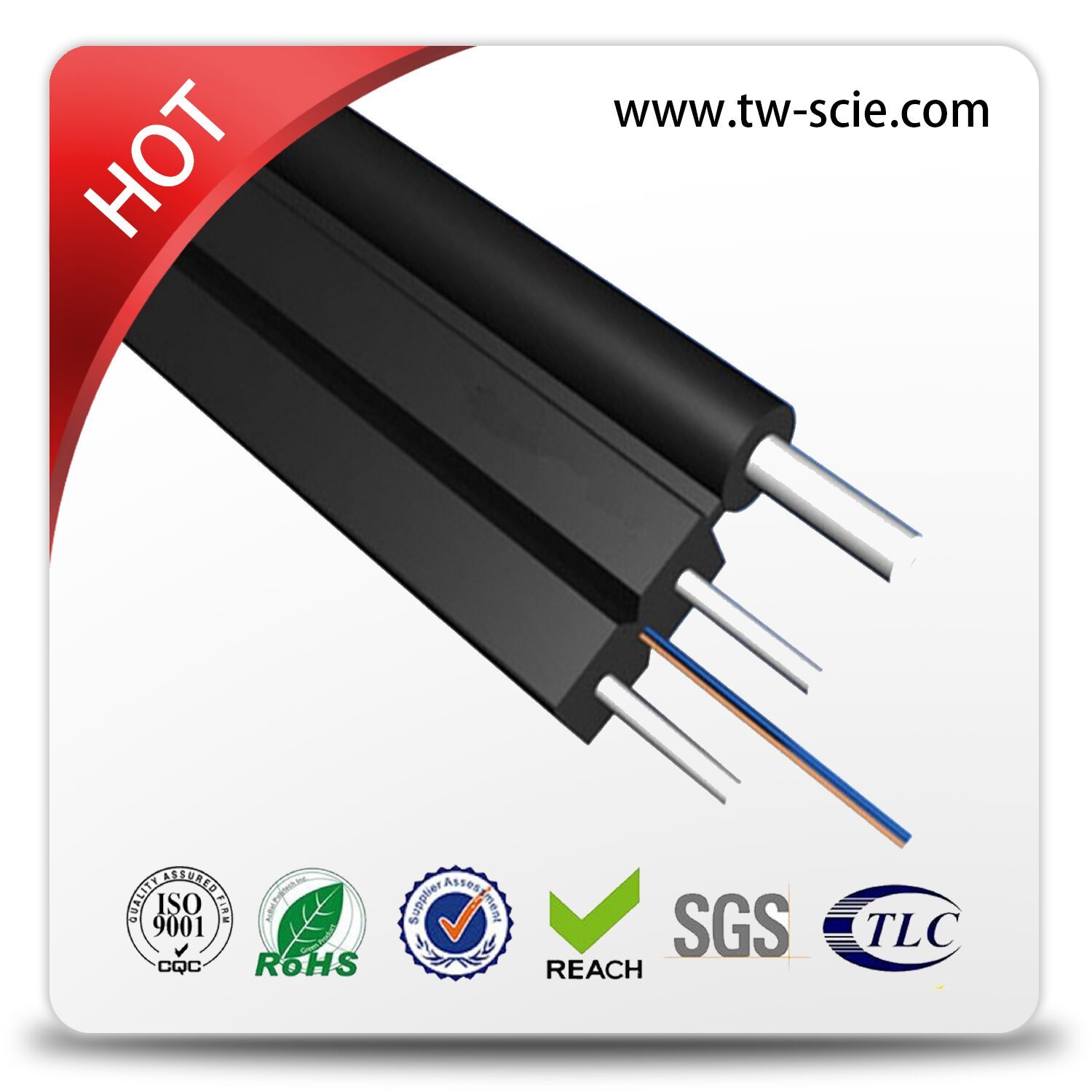

FTTH indoor cable, the optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced steel wires(or FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.

Characteristics

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication

transmission property;

Two parallel steel wire/FRP strength members ensure good performance of crush resistance
to protect the fiber.

Simple structure, light weight and high practicability;

Novel flute design, easily strip and splice, simplify the installation and maintenance;

Low smoke, zero halogen and flame retardant sheath.

Product perameter

Model Number	GJXH,GJXFH
Type	Coaxial
Number of Conductors	1--12
Certification	UL ROHS ISO
OEM	Welcome to OEM for FTTH Indoor Cable
Item	FTTH Indoor Cable
Jacket Material	LSZH
Laying method	FTTH/FTTX/FTTA
Standards	YD/T 1258.2-2003,ICEA-596,GR-409,IEC794,OFNR & OFNP
Application	indoor wiring, building introduction
Operating Temperature	-40 to 70 degree

Technical Parameters

Fiber count		Cable	Tensile Strength	Crush Resistance	Bending Radius
	Cable Diameter	weight	Long/short term	Long/short term	Static/Dynamic
	mm	kg/km	N	N/100mm	mm
1	(2.0±0.2)*(3.0±0.2)	8	30/60	300/1000	15/30
2	(2.0±0.2)*(3.4±0.2)	8.5	30/60	300/1000	15/30
1	(2.0±0.2)*(3.8±0.2)	9	30/60	300/1000	15/30
4	(2.0±0.2)*(4.0±0.2)	10	30/60	300/1000	15/30

FAQ

1.Are you the real manufacturer?

Yes. We are the real manufacturer with 18 years' history.

2.What is your fiber brand ?

Corning, YOFC, FiberHome, etc

3.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?

25 years for fiber optic cable

5.Which kind of certification you have ?

ISO9001, SGS, UL, RoHs.

6.What is your delivery time?

Usually within 2-3 working days

7.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 8,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.

8.What is your payment way?

T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.

DONGGUAN TW-SCIE Co., Ltd. is a high-tech enterprise group in China devoted to communications undertakings with our own impoters and exporters rights. Since its founding, high quality products an strong co-operations have enabled the enterprise to stably and rapidly grow into a specialized communication

Manufacturer supplier and engineering service provider the most complete product line-up and specifications in the fiber and cable industry of China.

The enterprise is possessed of a passel of faithful, intelligent, conscientious talents. While bending ourselves to following with the worldwide advanced development and application, we build up cooperation ties with many scientific research academy.

The main products of our enterprise are:

Optical fiber, optical cable, Optical media converter, optical transceiver, optical coupler, optical modem, optical connector, optical distribution frame.

All of the products are widely used in telecom, electric power, railway and other related department, exporting France, India, Singapore, Malaysia.
