FTTH Plastic Sc Fiber Optic Fast Connector

Name: FTTH Plastic Sc Fiber Optic Fast Connector
Brand: all-electronics-online.com
SKU: 641353895
Availability: InStock
Rating: 4.7 (123 reviews)

Price:	US $ 1.65-1.85/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item Name:	Sc up Fast Connector
Brand:	Softel
Item Application:	FTTX Project
Working Temparture:	40~+75
Return Loss:	>40dB
Materail:	Plastic
Connector Type:	Sc Upc
Features:	Low Insertion Loss
Durability:	≤ 0.2dB Typical Change, 1000 Times
Insertion Loss:	Singemode(Upc)≤ 0.2dB
Usage:	Server
Type:	Wired
Support Network:	Ethernet
Information Content:	Data

Product Description

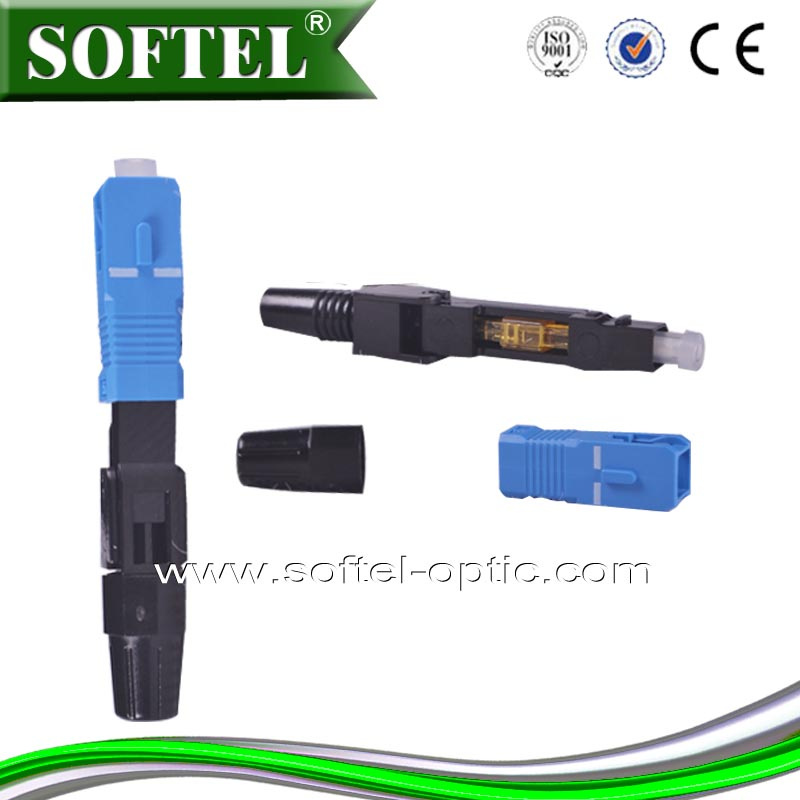

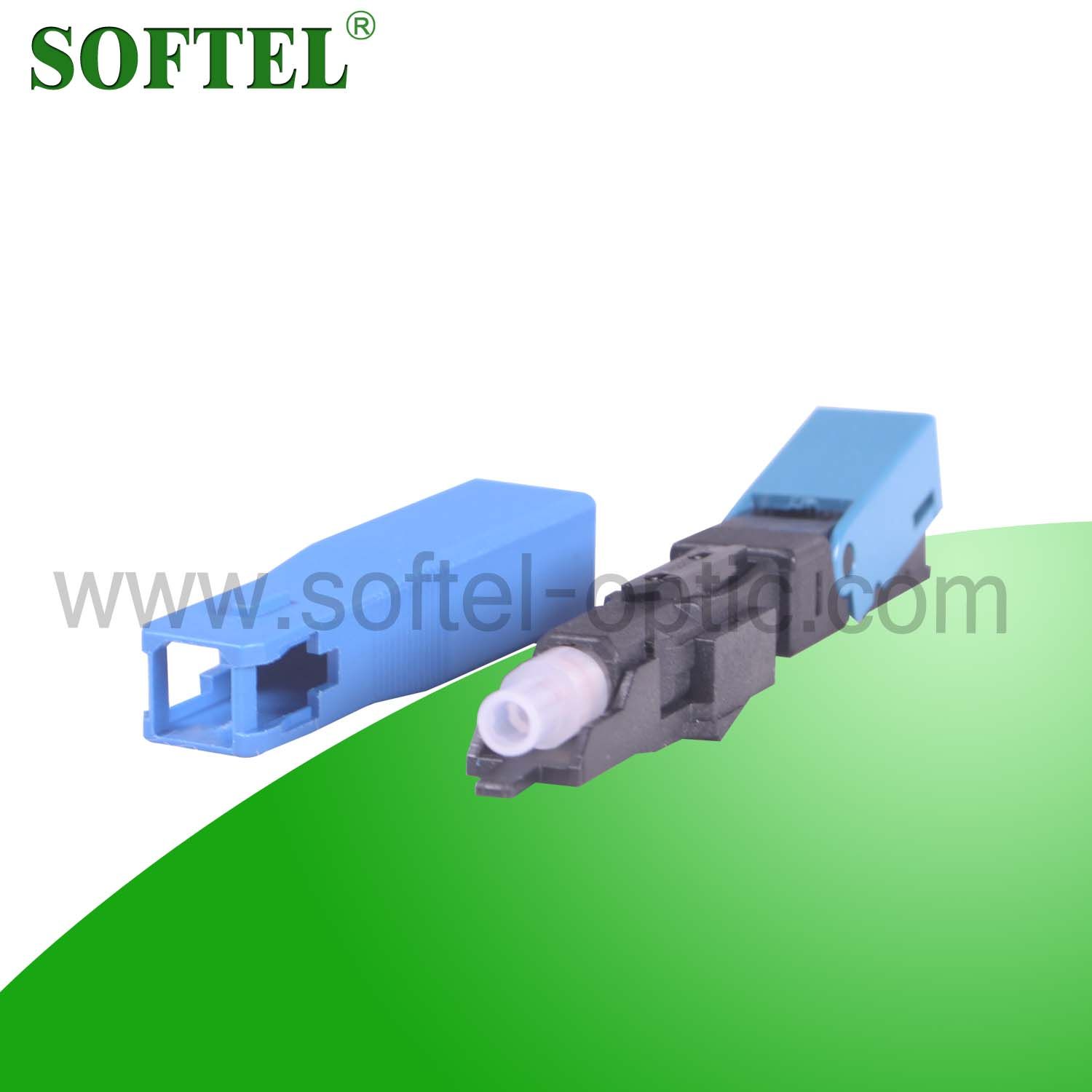

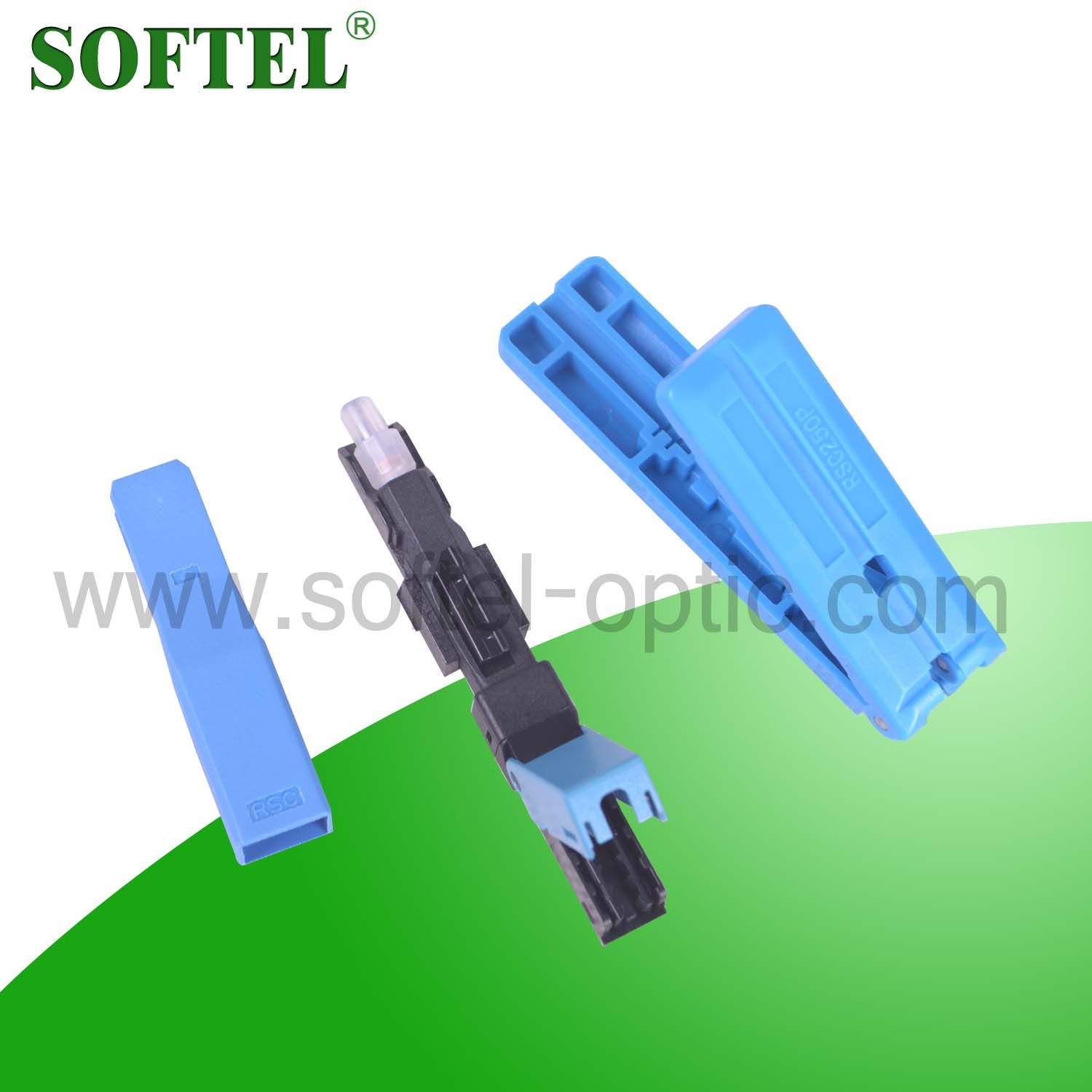

FTTH SC Plastic Fiber Optic Fast Connector

Summary:
-----------------
Sc connector is push-pull coupling design and injection molding technology ensure convenient operation and lower insertion loss, . It has high density and good strength character. The PC, UPC and APC polishing technology has been adopted in ceramic ferrule end-surface. It conforms to JIS C5973 standard and complies with NTT, IEC, TIA, telcordia standards.

1. Description
1. The connector can be supplied as a pre-assembled one-piece connector or as connector kit.
2. Clips are available for duplex connectors
3. Housing kits without ferrule are available.
4. SC/PC and SC/APC are available

2. Features
1. Low insertion loss and back reflection loss
2. RJ-45 style inerface
3. Polarized and color coded (TIA568-A & ISO 11801)
4. UL-rated plastic housing and boot
5. High precision alignment
6. Compact, pull-proof design
7. Behind-the-wall style short connector

3. Applications

1. CATV
2. Active device termination
3. Telecommunication networks
4. Metro
5. Local Area Networks (LANs)
6. Data processing networks
7. Test equipment
8. Premise installation
9. Wide Area Networks(WANs)

Singemode(UPC)	Singemode(APC)	Multimode
Insertion loss	≤ 0.2db	≤ 0.2db	≤ 0.25db
Return loss	≥ 55db	≥ 65db	≥ 30db
Durability	≤ 0.2db typical change, 1000 times mating
Operating Temperature	-45 to +85 degree
Ferrule Hole Sizes	125.0+1/-0um, Concertricity: ≤ 1.0um	125.0+1/-0um, Concertricity: ≤ 0.5um	125.0um, Concertricity: ≤ 3.0um
	125.3+1/-0um, Concertricity: ≤ 1.0um	125.3+1/-0um, Concertricity: ≤ 0.5um	127.0um, Concertricity: ≤ 3.0um
	125.5+1/-0um, Concertricity: ≤ 1.0um	125.5+1/-0um, Concertricity: ≤ 0.5um	128.0um, Concertricity: ≤ 3.0um
	126.0+1/-0um, Concertricity: ≤ 1.0um	126.0+1/-0um, Concertricity: ≤ 0.5um
