| Prod Model: |
VT310N |
| Type: |
Topshine Gsp Tracker |
| Tracking Platform: |
Web-Based and Mobile APP |
| GPS Chip: |
Latest GPS Sirf-Star III Chipset |
| Memory: |
4MB Data Logger |
| Backup Battery: |
950 mAh |
| Fuel Monitoring: |
Detect Dual Fuel Consumption |
| Two Way Location: |
GPS + Lbs Mode |
| Input Voltage: |
9 ~ 36 VDC |
| Over Speed Alarm: |
Support |
| Temperature Sensor: |
Support |
Product Description
Fuel vehicle management solution GPS tracker with SOS alert(2 years warranty, Free Tracking Platfrom (PC base & Android), CE & RoHS & SGS certification)
" Harsh braking & slam acceleration", " Firm car used for private purpose", " Fuel theft by drivers/ thieves " etc.
Expensive fuel costs, how do impact us?

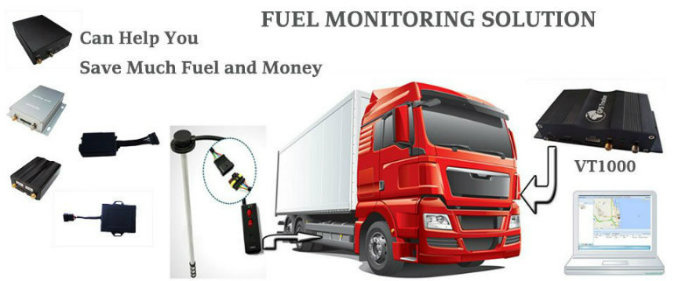

Topshine company had offer new fuel monitoring solution, except the accurate fuel report for fleet management purpose, we don't need to worry about our fuel to be theft, we can tracking the fuel consumption online, which will save your cost at large scale, at the same time, improve your efficiency for fleet management or taxi dispatch.
Benefits
- Reduce fuel consumption;
- Reduction of fuel cost;
- More security and safety;
- Prove of fuel consumption;
- Improve work efficiency;
- Improve fleet management and cost control
1. Product Overview

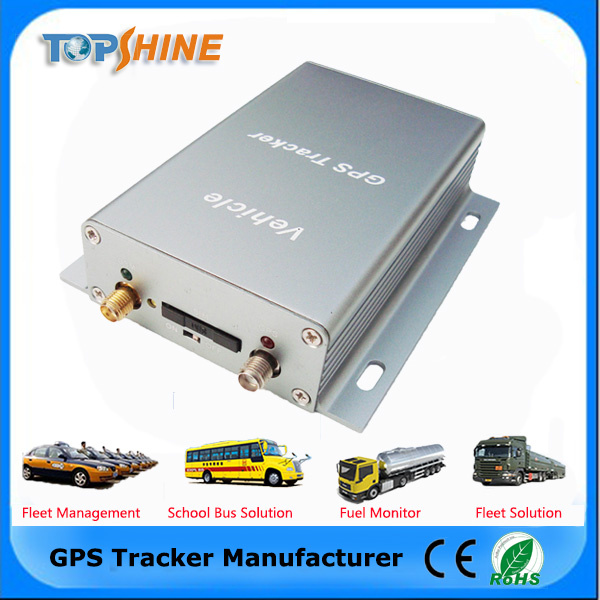

VT310N is a professional level GPS vehicle tracker focus on positioning and vehicle security. It can support detecting engine off/on, controlling door/windows/engine, can equip fuel consumption detection, temperature detection, geo-fencing, SOS alert, over speed alert, It has abundant ports for additional applications and tracking solutions especially suitable for fleet management.
2. Functions & Features
* Two way location
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* Real time tracking via the web-platform
* Engine on/off detection
* Built-in backup 950 mAh battery
* Remote Engine cut off to stop the car in safe condition
* Wiretapping/remote listening (optional)
* Get location physical name via SMS & from the web-platform
* Door open/close status detecting
* Door open/close control
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26, 000+ waypoints even no GPRS signal
* I/O: 5 Inputs, 5 Outputs, 2 Analog Inputs.
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Accident alarm (need crash sensor support) (optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, (optional)
3. Application
- Vehicle Tracking & Security
- Fleet Management
- Equipment Security
- Asset

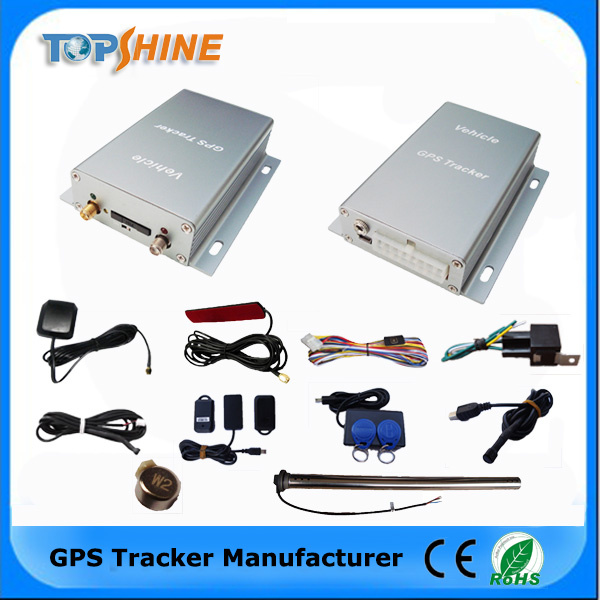

4. Complete Set| Standard Accessories |
| Main unit | GSM antenna |
| Wiring | GPS antenna |
| SOS button | Relay |
| Optional Accessories |
| Ultrasonic fuel sensor | Temperature sensor |
| Cuttable fuel sensor | Microphone |
| Crash sensor | USB cable |
5. Specifications | Items | Specifications | Items | Specifications |
| Dimension | 117*85*26mm | Weight | 185g |
| Input voltage | DC 9V~36V/1.5A | Back-up Battery | 950mAh/3.7V |
| Power Consumption | 65mA standby current | Memory | 4M Byte |
| Sensor | Motion sensor | GPS Sensitivity | -159dB |
| Positioning Accuracy | 10meters, 2D RMS | GPS Chip | U-blox 7 |
| GSM Frequency | GSM 850/900/1800/1900MHz | Battery Work Time | 43 hours in power-saving mode and 10 hours in nomal mode |

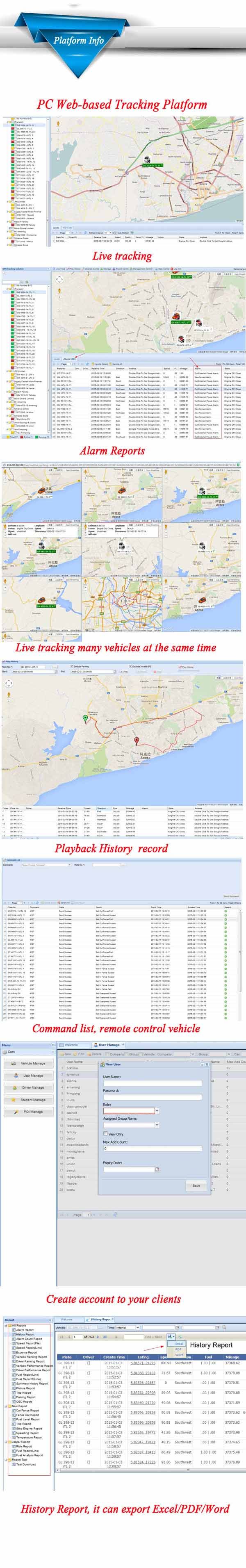

6. Topshine GPRS01 tracking platform* Tracking platform with API
* More stable & easy expansion
* Flexible configuration menus and assign power for certain user
* Icon can show 8 direction
* Events reminder ( maintainance alert, expired alert, odometer alert etc )
* Cell phones scan the QR code to download APP
* Directly manage Nevigate, Live Track and take photos
* Show GEO-fence and POI in the main track
* Flashing icon to show alarm status
* Provide customer demand for customization
Topshine company provide free tracking platform (web based and mobile APP)
link: www.track-car.com
Mobile link: www.track-car.com/m
User: test1
Pass: 123
7. Our services- Any inquiries will be replied within 12 hours on workday
- Professional manuafacurer and wholesaler for 8 years.
- OEM available:
- Customized logo or color box
- We can help you to design and put it into production about your idear
- High quality, fashion design, reasonable&competitive price, fast lead time
- After-sale service:
- All products will have been strictly Quality checked in workshop before packing
- All products will be well packed before shipping.
- All our products have 24 mouths warranty, and we are sure our products will be free from maintenance
- Fast delivery:
- Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
- Payment:
- You can pay for the order via: T/T , Western Union, money gram and Paypal
If you want to know more GPS tracker, please click " Product catalogue"
Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.
Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.
With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.
TOPSHINE provides a proprietary system to help clients manage their fleet and asset.
Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of
Vehicles to transport their goods or clients with valuable moveable assets, to monitor
Their assets thus minimizing the risks associated with their investments, increasing
Efficiency and productivity, and minimizing logistics and manpower costs. Real-time
Information can help with effective decision making, thus improving your company's
Performance and reducing overall costs.
We currently serve over 100 major customers and our clients come from various
Industries with unique demands or operational requirements. We can customise our
System to cater to our client's needs. In our ever-growing network of connected
Devices, our fleet can be monitored from anywhere with our mobile applications. Our
Services cover Hong Kong, China and cross border fleets.
