G.hn Ethernet Over Ethernet EOC Master Slave Competitive with Docsis Moca or G.fast Overview

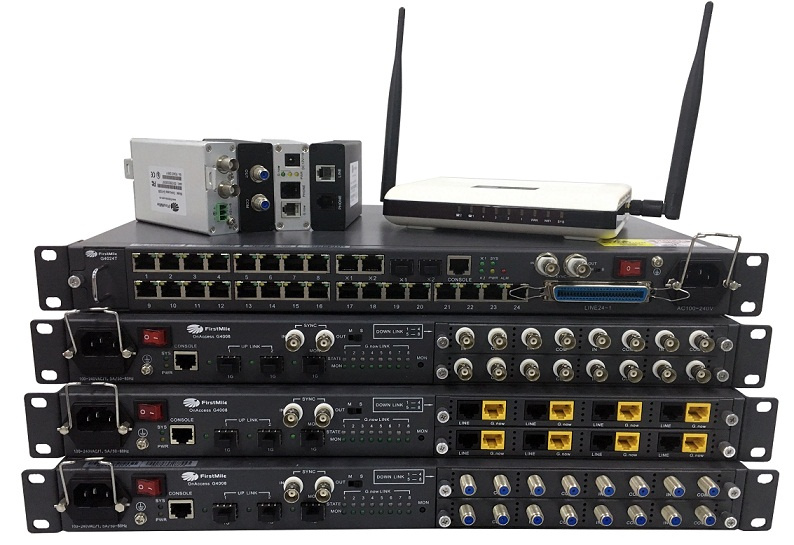

The OnAccess G4000 system contains the Headend Switch and the client device. It enables IP-based Video, Data and VoIP applications over existing twisted pair, it is the industry leading solution solving the secure delivery of IP Multiservice in a high density copper environment.
In a Fiber to the Building (FTTB) network solution, this device can deliver high-speed networking over legacy home wires with significantly lower installation and operating costs, the legacy home wires are those using coaxial cables, telephone lines or power lines. With scalability to over 40 units the OnAccess G4000 solution can scale to serve several hundred of end users connected on a copper network, OnAccessG4000 is the Ideal Solution for FTTH MDU Deployments.
Specifications- Egress /Ingress rate management control and broadcast storm control.
- IEEE 802.1Q tagged VLAN, port based VLAN
- Various QoS capability (IEEE 802.1p / port / Diffserv)
- SFF 8472, Digital Diagnostic Monitor
- Support port mirroring and port isolate
- Support SNMP trap and SNMP client
MIB Counter- Upgrade firmware, backup configuration, restore configuration
- Firmware upgrade via TFTP.
- IGMP snooping for filtering multicast traffic
- Perfect network management through web browser, CLI, Telnet /serial console.
- Support SNMP v1/v2c/v3 for different levels of network management
- Support three level user for manage
- Supports 1Gbps PHY bit rate over single medium
- State-of-the-Art LDPC forward error correction (FEC)
- Remote configuration management integrated on-chip
- Remote one-step firmware upgrade
- Upload configuration files, notches management
- Reliable HD IPTV and internet distribution
- Unique solution for Last Mile, MDU & Campus
- Up to 1 Km Bi-Directional solution with no need to upgrade/change the existing infrastructure
- Up to 450 Mbps of actual throughput over twisted pair
Compliance & Certifications- ITU-T G. Hn standard functionality (G. 9960 system architecture and PHY layer, G. 9961 data
- link layer, G. 9962 management plane)
- IEEE 802.3z for 1000Base-X
- IEEE 802.3x for Flow control
- IEEE 802.1p for CoS (Class of Service)
- IEEE 802.1Q for VLAN Tagging
Certifications:
Complies with UL, CE, CUL, FCC Part 15 Class B, EMC 89/336/EEC, ICES-003 Specifications |
Environmental Specifications |
Operating and Storage Temperature | 0 to +55, -25 to +70 |
Input Voltage, Power Consumption | 110-240 Volts AC (50-60 Hz)(for G4000C and G4000T), 5 VDC -2 amp( for 4101C and 4101T), 4.536W |
Humidity | 10%- 90% non-condensing |
Dimensions, Weight | 103.4mm x 66.0mm x 27.0mm, 0.19Kg (for 4101C) |

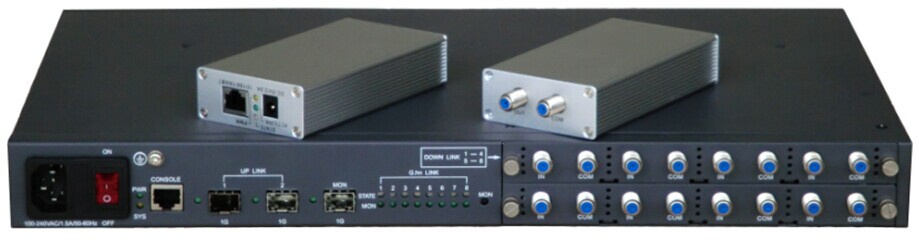

WAN and Service Ports(OnAccess G4000C) |
Console Port | a RS-232 connector for connection to a computer for console control /administration. The RS-232 console port can be used for accessing the OnAccess4000 CLI (command line interface) for out-of-band management. |
COM Ports | 8 x G. hn ports for data signal of 5~85Mhz, each port supports P2P and P2MP connections |
IN Ports | 8 x RF input port for CATV of 104~1000MHz |
WAN Connectivity | 2x1GE SFP ports for uplink aggregation |
Ethernet SFP Ports | 1 x 1GE SFP local system provision/monitoring port controlled by the multifunction control button |
WAN and Service Ports( OnAccess G4101C ) |
Ethernet Interface for client | 11x 10/100/1000BT Ethernet ports, Ethernet RJ-45 connection, Connect to computer or other Ethernet device. |
OUT Ports | One RF CATV output port for CATV of 104~1000MHz |
COM Ports | One combined RF CATV and G. HN input port supporting P2P and P2MP connections |
Ordering informationAvailable Models | Port configuration | Description |
OnAccess G4000-4C | Data Port: 2x100FX/1000Base-X SFP slots Monitor Port: 1x100FX/1000Base-X SFP Input Port: 4phone input ports Output Port: 4phone and data Combo ports Console port: RS232(RJ45) | Local device which Applied to twisted pair |
OnAccess G4000-8C | Data Port: 2x100FX/1000Base-X SFP slots Monitor Port: 1x100FX/1000Base-X SFP input Port: 8phone input ports Output Port: 8 phone and data Combo ports Console Port: RS232(RJ45) |
OnAccess G4101C | Input Port: 1 CATV/G. hn RF port Data Port: 1x10/100/1000BaseT Output Port: 1 phone out port | Client access device which applied to twisted pair |
Reliability:
MTBF: >50,000 Hours
