| Prod Model: |
OnAccess CM2604 |
| Dimension: |
440mm*265mm*44mm |
| Operation Temperature: |
0°c to +55°c |
| Ambient Relative Humidity: |
10% to 90% |
| Warranty: |
5 Years |
| Downlink: |
24xg.Now |
| SFP Port: |
10ge SFP |
| Weight: |
4kg |
| Input: |
1×g.Now Uplink Port(Rj-11) |
| Certification: |
RoHS |
| Condition: |
New |
| Type: |
G.Hn |
| Wiring Devices: |
Fiber Optic Switch |

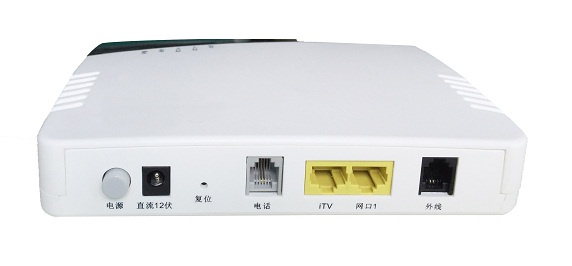

Product Description
OnAccess CM2604 is based G.hn technology that enable data rates up to 1Gbit/s over existing cable infrastructure to address issues associated with FTTH(Fiber to the home) applications. FTTH is expensive to implement in brown fields because of expensive labor, scattered population, problems with home fiber wiring, and slow roll-outs. OnAccess CM2604 G.hn-Based FTTDp (Fiber to the distribution point) solution has an impressive performance, is easier to deploy and provides substantial CAPEX savings when compared to traditional FTTH alternatives.
OnAccess CM2604 enable SP to deliver FTTH-class service to MDU apartments while avoiding the costs of replacing copper wires with fiber. These increased data rates ensure the access network is future-proof and ready to provide new services such as multi-stream 4K IPTV, cloud-based storage or 802.11ac wireless hotspots.Network access modem function, uplink supports G.hn protocol standard VoIP Customer side LAN access functionCustomer side iTV access functionRemote management device and configuration by using ITMS system
Network service IPv4/IPv6 dual stackDHCP server, DHCP relay WAN port support static IP, DHCP customer port, PPPoE dialingDNS agencyNetwork address transformStatic routingApplication gatewayDMZVirtual serverSNTPPPPoE pass-throughuPnPDSCP/802.1p tagIGMP Snooping v1/v2/v3IGMP QoSPort bandingPort-based VLANBandwidth controlTraffic shaping, SP, WRR Scheduling PolicyAlias,PPTP,L2TP) pass-throughDHCP option 60VoIPG.711 A/UG.711 VAD/CNGG.729 Annex A/BG.722G.726FAX: G.711 pass-through/T.38Eliminating echo up to 48ms,measure up to RFC3350Static & adaptive jitter buffer, up to 700msCaller ID, type1 & type 2Call transfer, call back, Do Not DisturbAnonymous call, call blockingThree-way callingDigit map, dial planVolume adjustmentDTMF generation and detection, in band DTMF & RFC2833 DTMFSecurityBlock port scanning and message attackingDoS attack protectionSYN flood protectionPing of DeathLAN and WAN side management access controlSmurf attack, TCP empty scanStateful packet inspection SPIIP filterMAC address filterURL filterDevice ManagementWeb interface configuration Telnet managementFirmware upgradeTR064, TR06, TR098,TR-111,TR-143SNMP v1/v2c/v3IP Ping,diagnosis tool2 levels user authority
Performance parameters
| Specifications |
| Input | 1×G.now uplink port(RJ-11) |
| Output | 1×10/100/1000BaseT Ethernet port; 1×10/100BT iTV port(RJ-45); 1×SIP phone output port(RJ-11) |
| Shell | Plastic |
| Operation temperature and storage temperature | 0ºC ~ 40ºC/ -40ºC~85ºC |
| Environment | Indoor |
| Input power and consumption | 12VDC adapter ∽5W |
| Humidity | 10% ~ 90% RH non-condensing |
| Dimension,weight | 160mmX120mmX32mm, 0.35Kg |
After-sales Service
5-year Warranty
We want you to be fully satisfied with every item that you purchase from FirstMile. We provide 5-year warranty.
Exchange & Return Policy
1. Technical support hotline
Any technical related question you need to inquiry about during using products of FirstMile, please contact us.
Our technical support engineers will provide you with professional technical support.
2. Fast response
If you feedback equipment failure during product use, FirstMile will immediately respond to your requests and solve the failure in the shortest time.
Website:
http://www.firstmile.hk/en/
http://shenzhenfirstmile.en.made-in-china.com/
Founded in January 2003, FirstMile is a technology company focused on the development, manufacturing and marketing of active equipment of Ethernet fiber access.
Taking advantage of our solid technical knowledge and skills in fiber technology, Ethernet/IP and CATV networks, FirstMile introduced its first Active Ethernet based FTTH full service platform based OnAccess in 2005, with a mission to provide open access broadband networks through fiber. We have since become a reliable partner of many FTTH network operators.
Over the years we have also gained extensive technical expertise as well as practical experience in industrial communications. We now can offer a complete portfolio of industrial networking products. Our industrial switches can deliver a full suite of carrier Ethernet features under harsh operating conditions. FirstMile's industrial products have been widely applied in multiple industrial sectors such as energy, transportation and industrial automation.
Our customers are network operators worldwide who provide open access to service providers. Up to now, FirstMile's products have been shipped to over 50 countries including USA, Germany, Australia, Albania, Venezuela, Hungary, Russia, Bulgaria, Netherlands, Finland, Demark, Ukraine, Turkey, Macedonia, Poland, Sweden, Norway, Singapore and Malaysia.
FirstMile has also offered ODM and custom design services to customers from Germany, Sweden, Poland, Turkey, Netherlands, Australia, Hong Kong and etc.
