| Prod Model: |
OnAccess G4000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions:103.4mm X 66.0mm X 27.0mm: |
Weight:0.19kg (for 4101c) |
| Itu-T G.Hn Standard:G.9960, G.9961, G.99: |
Certifications:UL, CE, cUL, FCC Part 15 Class B, E |
| Certification: |
ISO |
| Condition: |
New |
| Type: |
Ehternet Switch |

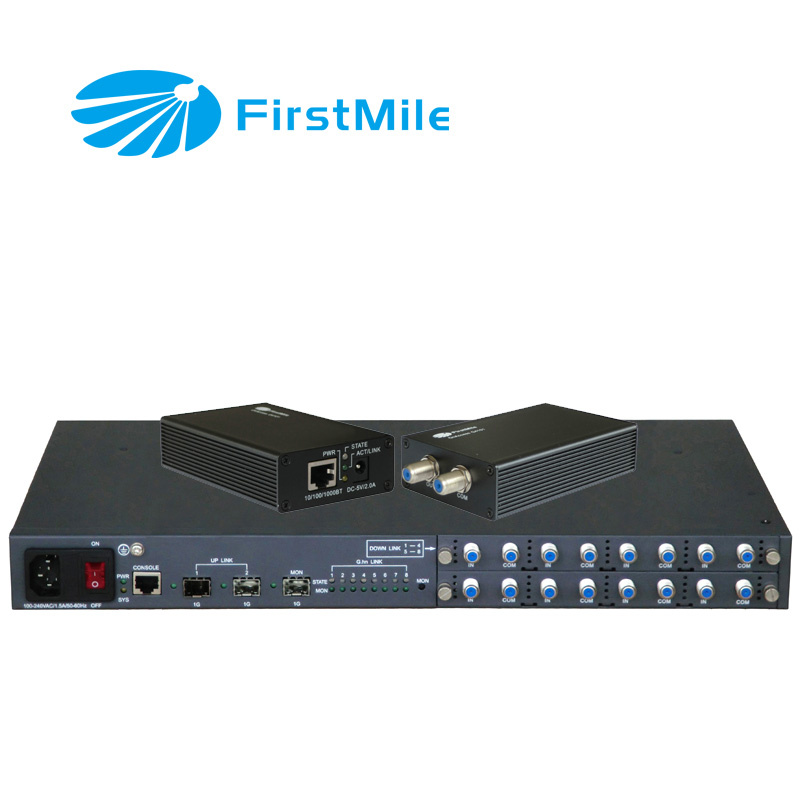

Product Description
OverviewOnAccess G4000 Series products are based G.Hn technology that enable data rates up to 1Gbit/s over existing cable infrastructure to address issues associated with FTTH(Fiber to the home) applications.FTTH is expensive to implement in brown fields because of expensive labor, scattered population, problems with home fiber wiring, and slow roll-outs.OnAccess G4000 G.Hn-Based FTTDp (Fiber to the distribution point) solution has an impressive performance, is easier to deploy and provides substantial CAPEX savings when compared to traditional FTTH alternatives.
OnAccess G4000 Series products enable SP to deliver FTTH-class service to MDU apartments while avoiding the costs of replacing copper wires with fiber.These increased data rates ensure the access network is future-proof and ready to provide new services such as multi-stream 4K IPTV, cloud-based storage or 802.11ac wireless hotspots.
Specifications- Egress /Ingress rate management control and broadcast storm control.
- IEEE 802.1Q tagged VLAN, port based VLAN
- Various QoS capability (IEEE 802.1p / port / Diffserv)
- SFF 8472, Digital Diagnostic Monitor
- Support port mirroring and port isolate
- Support SNMP trap and SNMP client
- MIB Counter
- Upgrade firmware, backup configuration, restore configuration
- Firmware upgrade via TFTP.
- IGMP snooping for filtering multicast traffic
- Perfect network management through web browser, CLI, Telnet /serial console.
- Support SNMP v1/v2c/v3 for different levels of network management
- Support three level user for manage
- Supports 1Gbps PHY bit rate over single medium
- State-of-the-Art LDPC forward error correction (FEC)
- Remote configuration management integrated on-chip
- Remote one-step firmware upgrade
- Upload configuration files, notches management
- Reliable HD IPTV and internet distribution
- Unique solution for Last Mile, MDU & Campus
- Up to 500m Bi-Directional solution with no need to upgrade/change the existing infrastructure
- Up to 450 Mbps of actual throughput over coaxCompliance & Certifications
- ITU-T G.Hn standard functionality (G.9960 system architecture and PHY layer, G.9961 data link layer, G.9962 management plane)
- IEEE 802.3z for 1000Base-X
- IEEE 802.3x for Flow control
- IEEE 802.1p for CoS (Class of Service)
- IEEE 802.1Q for VLAN Tagging
- Certifications:Complies with UL, CE, CUL, FCC Part 15 Class B, EMC 89/336/EEC, ICES-003
InterfacesOnAccess 4000C
OnAccess 4101C| Specifications |
| Environmental Specifications |
| Operating and Storage Temperature | 0 ~ +55, -25 ~ +70 |
| Input Voltage, Power Consumption | 110-240 Volts AC (50-60 Hz)(for G4000C and G4000T), < 16W
5 VDC -2 amp( for 4101C and 4101T), < 3W |
| Humidity | 10%- 90% non-condensing |
| Dimensions, Weight | 103.4mm x 66.0mm x 27.0mm, 0.19Kg (for 4101C) |
| WAN and Service Ports(OnAccess G4000C) |
| Console Port | A RS-232 connector for connection to a computer for
Console control /administration.The RS-232 console port
Can be used for accessing the OnAccess4000 CLI (command line interface) for out-of-band management. |
| COM Ports | 8 x G.Hn ports for data signal of 5~85Mhz, each port supports P2P and P2MP connections |
| IN Ports | 8 x RF input port for CATV of 104~1000MHz |
| WAN Connectivity | 2x1GE SFP ports for uplink aggregation |
| Ethernet SFP Ports | 1 x 1GE SFP local system provision/monitoring port controlled by the multifunction control button |
| WAN and Service Ports( OnAccess G4101C ) |
| Ethernet Interface for client | 1x 10/100/1000BT Ethernet ports, Ethernet RJ-45 connection, Connect to computer or other Ethernet device. |
| OUT Ports | One RF CATV output port for CATV of 104~1000MHz |
| COM Ports | One combined RF CATV and G.HN input port supporting P2P and P2MP connections |
Reliability:
MTBF: >50,000 Hours
