| Prod Model: |
MT100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
RFID Car Alarm/Engine Idle Alert |
| Support Ota Function: |
Yes |
| Harsh Acceleration Alert/Braking Alert: |
Yes |
| Oil Leaking/Refuel Alarm: |
Yes |
| Fuel Management: |
Yes |
| Remote Engine Cut: |
Yes |
| Support RFID Alarm: |
Yes |
| Input Voltage (V DC): |
6 ~ 36 |
| GSM Module: |
M35 |
| GPS Module: |
Ublox 7 |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
GPS Tracker |
| Port Number: |
2 Input, 3 Output, 1 Analog Port |
| Model: |
Mt100 |
| Screen Size: |
No screen |
| Carrier Frequency: |
850/900/1800/1900MHz |
| Chip: |
GPS Chip: Ublox 7 GSM Chip: M35 |
| Brand: |
Topshine |
| Certification: |
Ce RoHS SGS |
Product Description

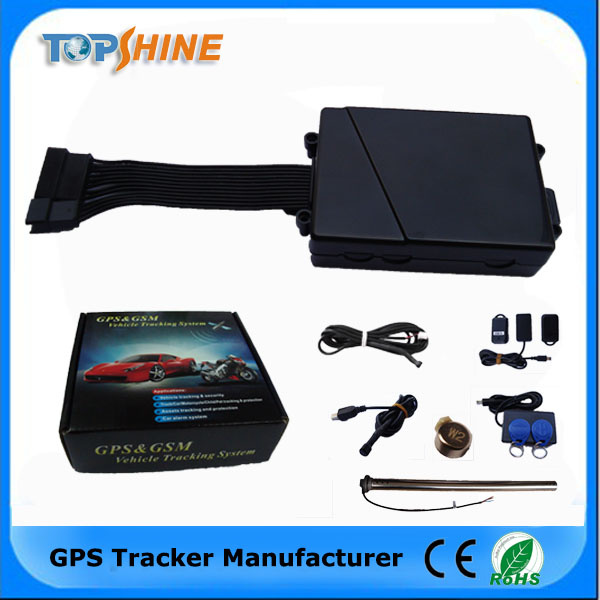

Fleet management RFID fuel sensor MT100 vehicle motorcycles GPS tracker
(* Free GPS tracking platform lifetime * 2 years warranty * 1 day delivery * High Quality * Factory price )
Product overview
MT100 is a kind of mini GPS vehicle tracking product can be used for tracking and security of motorcycle and automobile etc. Mini size, built-in antenna and waterproof designed, easy to be installed and concealed, with power voltage range from 6V~24V, therefore can satisfy tracking and security demands for all kinds of vehicles.
Application
*Vehicle Real Time Tracking
*Car Security/Anti-Hijack
*Comprehensive fleet management
Specification
| Items | Specifications |
| Dimension | 80*58*22mm |
| Weight | 92g |
| Charging voltage | +9V~+24V |
| SIM Card type | 3V |
| Power consumption | Active mode(peak)<1.0 A
Active mode(avg.)<300 Ma
Idle mode <50 mA |
| Operating temperature | -20~+75 centigrade |
| Humidity | Up to 75% non-condensing |
| External SIM card | Connected via SIM card connector |
| External Antenna | Connected via 50 ohm coax connector |
| Button | 1 SOS and 1 power on/off |
| Microphone | Optional |
| Transmit power | Class 4(2W) for E-GSM 900 and 850
Class 1(1W) for DCS 1800
Class 1(1W) for PCS 1900 |
| Sensitivity | -104dBm minimum for E-GSM 900 AND 850
-102dBm minimum for DCS 1800
-102dBm minimum for PCS 1900 |
| GPS chip | Latest GPS SIRF-Star IIIchipset |
| GPRS | Multi-slot Class 8(4Rx, 1Tx., 5slot Max.)
Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4)
Maximum download speed is 85.6kbps
Maximum upload speed is 21.4kbps |
| Speech Codec | Triple rate Codec
Half rate_ETS 06.20
Full rate_ETS 06.10
Enhance full rate_ETS 06.50/06.06/06.08 |
| I/O | 3 Output, 2 Input, 1 Analog input and 1 RS232 port |
Features & Functions
* OTA function (support over the air)
*Harsh acceleration alert/Braking alert
* Engine idle alert/low power alert/power failure alert
* Oil leaking/Refuel alarm
* ARM9 high speed microcontroller
* Support active/passive RFID for anti-theft alert and driver identification
* Fuel management
* 4M flash can save the maximum 26000 points data
* 6V~24V power supply
* Track by SMS/GPRS (TCP/UDP)
* Track by time interval
* Track by distance interval
* Anti-robbery with SOS button, call for help
* Geo-fence alarm
* Over speed alarm
* Built-in motion sensor for power saving
* Google map URL for location via SMS, which shows you location on map via mobile phone
* Get the physical address name via SMS
* Remote engine cut
* Mileage report
* I/O: 3 Output, 2 Input, 1 Analog input and 1 RS232 port
* Mini size, simple installation, low cost tracker for motorcycles, 12V and 24V vehicles
* Monitor the voice (optional)

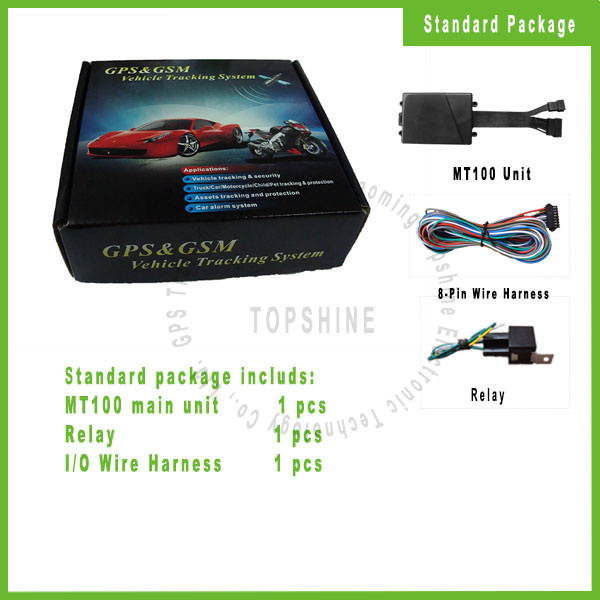

Package and Accessories
Standard AccessoriesGPS trakcer
wire
relayOptional Accessoires:
* Fuel Sensor
* Smart Phone Reader
* Crash Sensor
* Temperature Sensor
* Active RFID Kit
* Passive RFID Kit
* USB configure Cable
* OBDII : $16
* Alcohol sensor Welcome to test our free tracking software
PC: www.track-car.com
Mobile Phone: http://www.track-car.com/M
User name: hongkong
Password: 123
Our advantage:
* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.

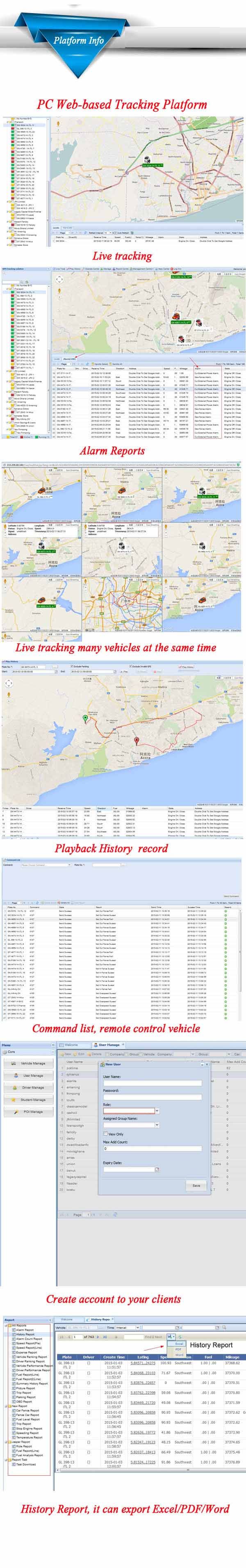

GPS tracking platform information
