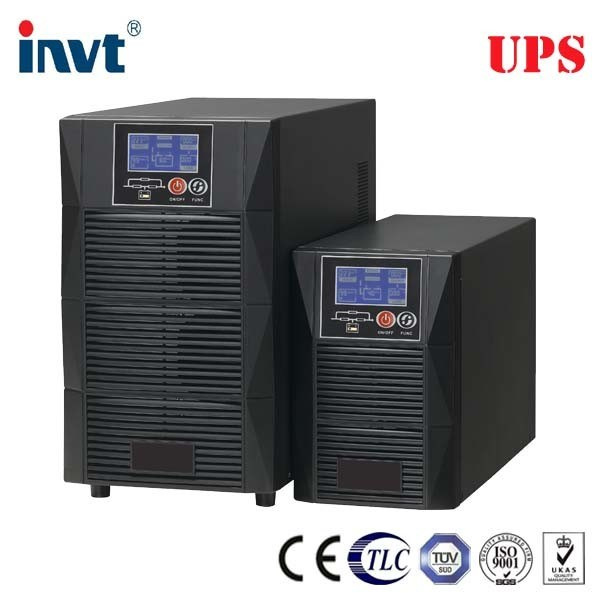

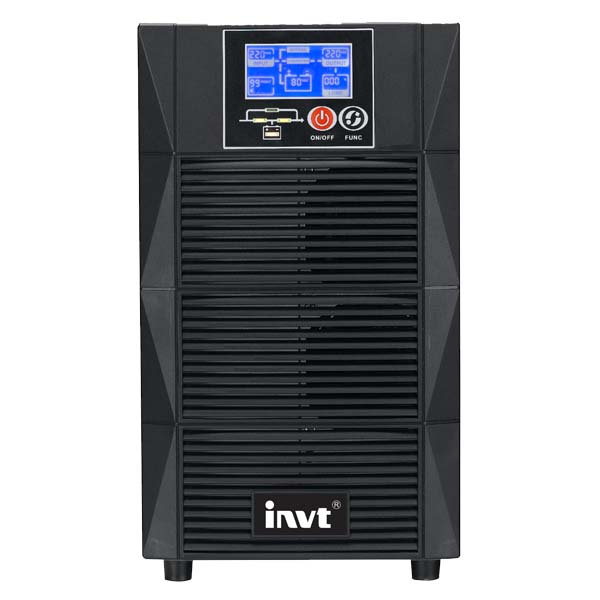

Generation Online UPS 1kVA - 3kVA (HT11 single phase UPS)

Name: Generation Online UPS 1kVA - 3kVA (HT11 single phase UPS)
Brand: all-electronics-online.com
SKU: 681419895
Availability: InStock
Rating: 4.3 (47 reviews)

Price:	US $ 10-10000/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Online High Frequency 1kVA to 3kVA Uninterruptible Power Supply

HT series online UPS 6-20kVA characteristics:
1. True online double conversion technology
2. IGBT PFC technology.
3. Wide input range.
4. Zero transfer time.
5. Compete protection function.
6. Paralleling up t0 4 units.
7. Smart communication port.
8. LCD/LED display.
9. Cold start function.

Model	HT116K HT116KL
Rated Power
Power	6kVA/4.2kW
Input
Nominal voltage	220VAC
Voltage range	176-276VAC
Frequency range	46-54Hz(default), user adjustable within 40-60Hz
Power factor	0.98
Output
Voltage	220VAC ± 1%
Frequency	50/60Hz± 0.2Hz(line mode), 50/60Hz± 0.2Hz(battery mode)
Waveform	Pure sine wave
Distortion	Less than 2% under linear load
Overload capability	105%-130% for 10 minutes, 130% for 1 minutes
Crest factor	3: 1
Battery
Type	Sealed, maintenance free, lead-acid
Backup time	5 minutes
Recharge time	8 hours to 90% capacity after full discharging
Bypass
Automatic transfer	Overload time up and UPS failure
Transfer time	0mS
LCD/LED information and audible alarm
Status	Load percentage, battery state, utility state, inverter and bypass state, overload, system fault.
Audible alarm	Bypass mode, battery mode, battery low, overload, fault
Noise
1 meter distance	55dB
Communications
DB9 port	RS232
Intelligent slot	WebPower, AS400 card and WinPower CMC
Environment
Operating temperature	0-40 0 C
Operating humidity	20-90 non-condensing
Weight
Net(kg)	90/35
Dimension
WDH(mm)	260570717

Prod Model:	HT11 single phase UPS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power Factor:	>0.8
Output Voltage:	220V or 110VAC
Certification:	Ce ISO9001/ISO14001/ISO18001
DC:	36V/72V/96V
Output Wave:	Pure Sine Wave
Name:	Uninterruptible Power Supply 1kVA UPS 20kVA UPS
UPS Type:	1kVA UPS-3kVA UPS
Moniting:	Snmp Card
Eco Efficiency:	98%
Phase:	Single Phase
Type:	On-line
Protection:	Overvoltage
Application:	Computer
Classification:	Backup
Output Capacity:	1-3kVA
Brand:	Invt

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
