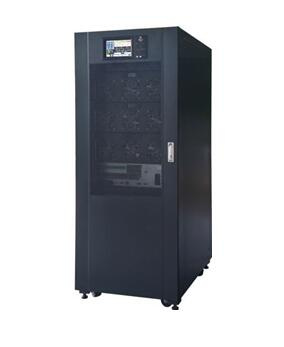

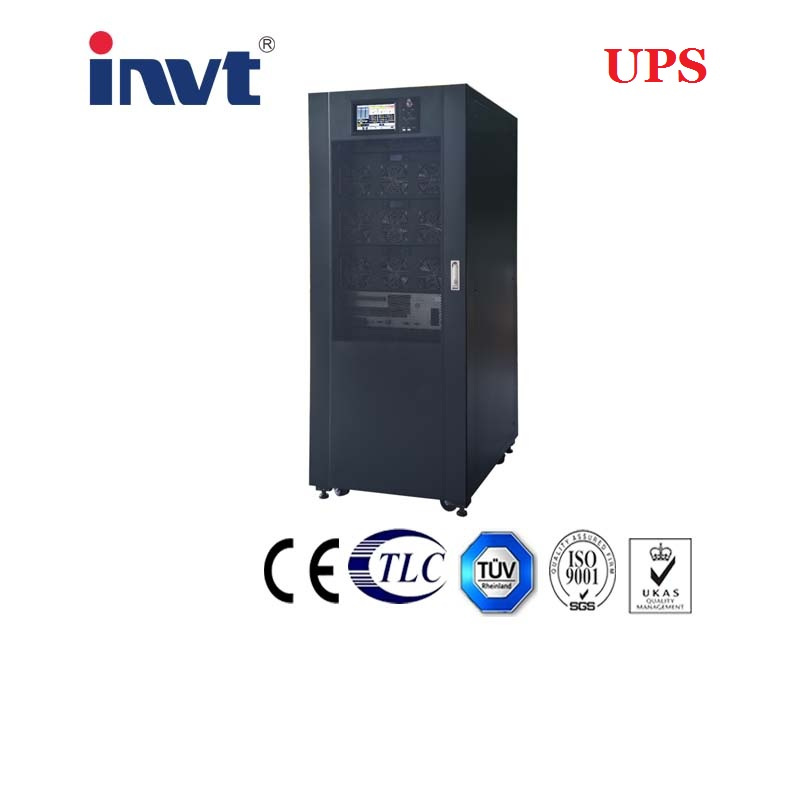

Humanization Design 60kVA Tower Online UPS for Internet Data Center
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
HT33 series three phase UPS offers advanced technology that increase performance and reliability: three high speed DSPs with completed digital control fully ensure high quality of power supply, high input power factor and low input current distortion. It also offers humanization design: full front access of serviceability and user friendly interface.
ApplicationIDC(Internet Data center),ISP,IT Room, Service Center
Precision instruments,Intelligent equipmentsFeaturesHigh efficiency, up to 96%High input PF>0.99; Input current THDi<3%Muti-protection, over-temperature protection with 8 sensors, over-load, battery under voltage, fan failures, short-circuitBattery cold startBattery management with smart charging control, greatly extend the battery lifeHigh power densityParallel up to 1500kVAModular design of subsystem, convenient for field maintenanceFriendly operation interface, color touch LCD screen MODEL | HT33060X | HT33080X | HT33090X | HT33100X | HT33120X | HT33150X | HT33200X | HT33250X | HT33300X | HT33400X | HT33500X |
Capacity | 60kVA | 80kVA | 90kVA | 100kVA | 120kVA | 150kVA | 200kVA | 250kVA | 300kVA | 400kVA | 500kVA |
INPUT |
Phase | 3Phase+N+PE,380V/400V/415V(line to line) |
Voltage range | 304-478Vac (line-line),full load; 228V-304Vac (line-line),load decrease linearly according to the min phase voltage |
Frequency range | 40-70Hz |
THDi | <3%(Full linear load) |
Power factor | >0.99 |
OUTPUT |
Voltage | 380V/400V/415V(line to line) |
Voltage regulation | ±1.5% |
THDu | <1%(linear load),<5.5%(none-linear load) |
Power factor | 0.9 50/60Hz 0.01% 110% for 60 min; 125% for 10 min;150% for 1 min;>150% for 200 ms |
Frequency range |
Frequency precision |
Overload capability |
BATTERY |
Voltage | ±240VDC |
Charge power | 20%*System Power |
Voltage precision | 1% |
SYSTEM |
Efficiency | Normal | 95% | 96% | 95% | 96% | 95% | 96% |
Battery | 95% | 96% | 95% | 96% | 95% | 96% |
Display | Color LCD touch screen+ LED+ Keyboard |
IP class | IP20 |
Interface | Standard: RS232, RS485,USB, Dry contact(programmable) Option: SNMP,AS400, Parallel kit, Battery cold start(standard for 250kVA above), Lightning protection components, Dust filter, LBS |
Operation/storage | 0-40ºC/-40-70ºC |
Relative humidity | 0-95%(non-condensing) |
Noise | 68dB @ 100% load, 65dB @ 45% load | 72dB @ 100% load, 69dB @ 45% load |
PHYSICAL |
Weight(kg) | 170 | 210 | 231 | 210 | 266 | 305 | 350 | 445 | 490 | 810 | 900 |
Dimension(W*D*H)(mm) | 600*980 *950 | 600*980 *1150 | 600*980 *1400 | 600*980 *1150 | 600*980 *1400 | 650*960 *1600 | 650*960 *1600 | 650*960 *2000 | 650*960 *2000 | 1300*1 00 *2000 | 1300*1 00 *2000 |
| Prod Model: |
Tower Online UPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power Factor: |
1 |
| Output Voltage: |
380V/400V/415V |
| Certification: |
Ce ISO9001/ISO14001/ISO18001 |
| Power: |
60kVA |
| Output Frequency Range: |
50/60Hz |
| Verload Capability: |
110% for 1 Hour; 125% for 10 Minutes ;150% For1 Mi |
| System Efficiency: |
Normal Mode:95% ;Eco Mode:99% ;Battery Mode:95% |
| Display: |
LCD +LED+ Keyboard |
| Interface: |
Standard :RS232,RS485,Dry Contacts, USB; Optional: |
| Relative Humidity: |
0-95%(Non-Condensing) |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Invt |
As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.
The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.
INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
