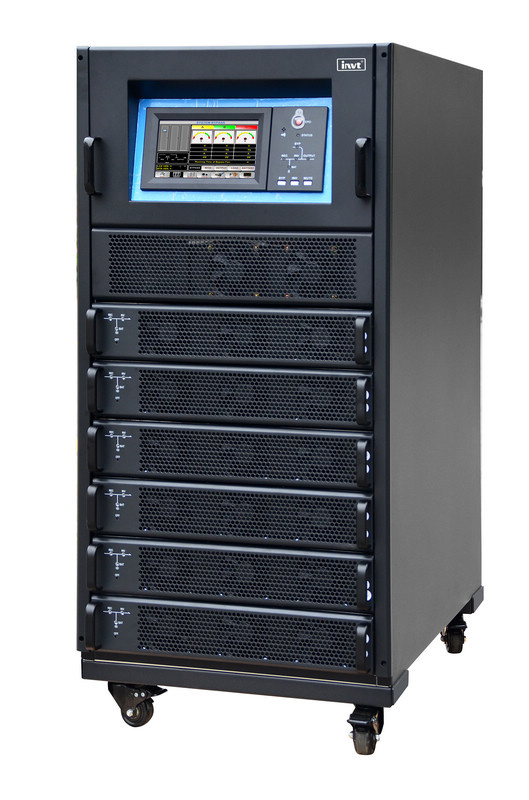

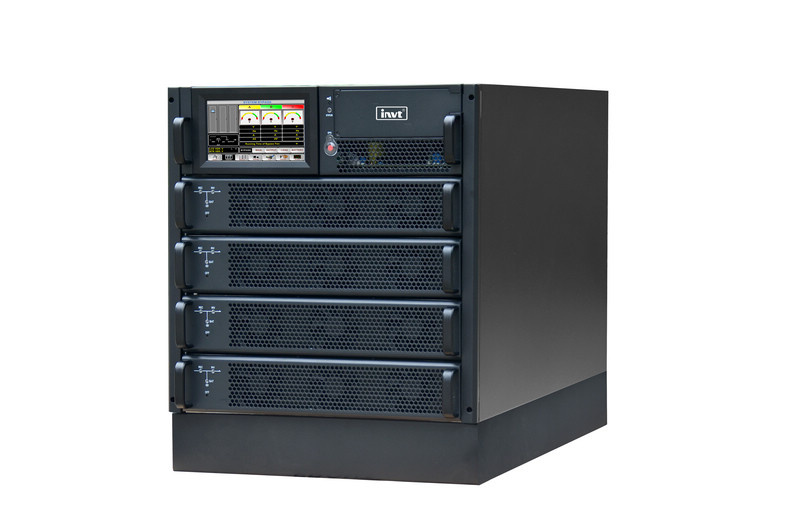

10-90kVA (380V/400V/415V) RM Series Modular Online UPS

Name: 10-90kVA (380V/400V/415V) RM Series Modular Online UPS
Brand: all-electronics-online.com
SKU: 681313675
Availability: InStock
Rating: 4.3 (90 reviews)

Price:	US $ 1000-200000/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

The standard 19"modular, scalable, hot-swappable, online double conversion UPS ranging from 10-90kVA, with its flexible configuration of 3/3, 3/1 and 1/1, compact structure, is the ideal choice for small and medium data center.

Rack design

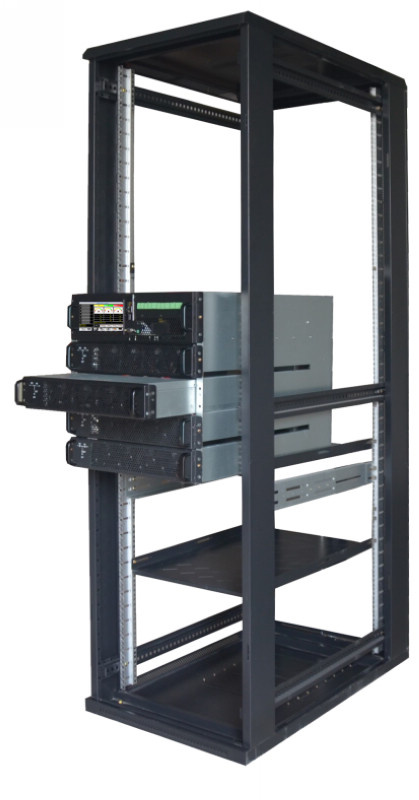

Modular design, compatible with 19" standard rack cabinet, convenient to integrated with servers

Flexible configuration

The system can be configured to 1/1 and 3/1 without derating or hardware changing

High power density

10/15KVA power module in 2 U height Saving great amount of space, easy for capacity expansion

Friendly interface

7" touch color LCD with graphic display, more information displayed for customer easier for customer to operate

Integrated solution for data center

UPS can integrate with battery cabinet and PDU, offering excellent choice for data center

Smart sleep function

System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency

Intelligent charging management

The system intelligently control the whole process of the charging and discharging,effectively improve she life time of the battery

Self-aging mode

Energy internal circle technology, system can run with full load ,assuming less than 10% energy

MODEL		RM060/10X	RM040/10X	RM020/10X	RM090/15X
Capacity		60kVA/60kW	40kVA/40kW	20kVA/20kW	90kVA/90kW
Power module type		PM10X(10kVA/10kW)			PM15X(15kVA/15kW)
INPUT
Phase		3P+ N + G (380/400/415V)
Voltage range		304-478Vac (line-line),100% load; 228-304Vac, load derated from 100%-75% linearly
Frequency range		40Hz-70Hz
Power factor		>0.99
THDi		THDi<4% @ 100% linear load
OUTPUT
Voltage		3 phase:380/400/415V 1 phase:220/230/240V
Voltage regulation		1.5%
Power factor		1
THDu		THD<1%(linear load ),THD<5.5%(None linear load)
Crest ratio		3:1
Overload capability		110% for 1 hour; 125% for 10 minutes ;150% for1 minute; >150% for 200ms
BATTERY
Voltage		±240VDC
Charge Power		20%*System Power
Charge voltage precision		±1%
SYSTEM
System efficiency		Normal mode:95% ;ECO mode:98% ;Battery mode:94.5%
Display		7.0" Color touch screen LCD + LED + Keyboard
IP Class		IP20
Interface		Standard :RS232,RS485,Dry contacts; Optional: SNMP ,Expansion dry contact card
Operation/Storage temperature		0-40ºC/-25-70ºC
Relative Humidity		0-95%(non-condensing)
Noise		56dB @ 50% load (1 meter away)
PHYSICAL
Weight	Cabinet	70kg	51kg	42kg	70kg
	Power module	15.3kg			15.5kg
Dimension (WDH)	Cabinet (mm)	4857511033	485697575 (11U)	485697398 (7U)	4857511033
	Power module	43659085 mm (2U)			43659085 mm (2U)

Prod Model:	Modular Online UPS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power Factor:	1
Output Voltage:	380V/400V/415V
Certification:	Ce ISO9001 ISO14001 ISO18001
Power:	10-90kVA
Voltage Range:	304-478VAC (Line-Line),Full Load;
Overload Capability:	110% for 1 Hour; 125% for 10 Minutes ;150% For1 Mi
System Efficiency:	Normal Mode:95% ;Eco Mode:98% ;Battery Mode:94.5%
Display:	7.0" Color Touch Screen LCD+LED+Keyboard
Interface:	Standard :RS232,RS485,Dry Contacts, USB; Optional:
Relative Humidity:	0-95%(Non-Condensing)
Phase:	Three Phase
Type:	On-line
Protection:	Overvoltage
Brand:	OEM

As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.

The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.

INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
