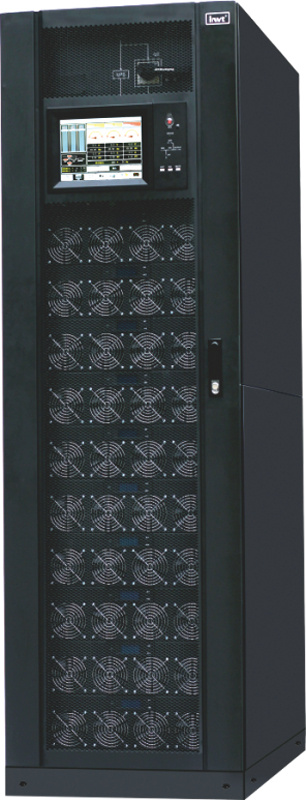

The RM series modular UPS provides the most compact footprint of less than 2 with maximum
capacity of 900kVA.With best reliability and high performance, it has been leading the domestic market for years.
RM series is considered to be the best power protection solution for large data centers, as well as for sensitive electronics.

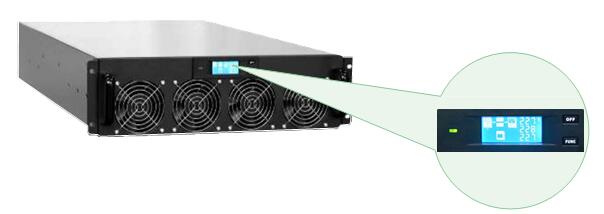

Independent LCD for Each Power Module
Each power module has an independent LCD, gives users' direct overview of status data and alarms in real time.
Friendly Interface
Provide graphical and text based information of alarms, status data, instructions that users can have more friendly and safer operation.
Isolated Air Flow
The dedicated and redundant hot-swappable power modules take the most unique structure design. In this design, the PCB boards and heat-sinkers are in two completely different layers, which allows the UPS run in dusty environments, significantly improving its stability and environmental adaptability.

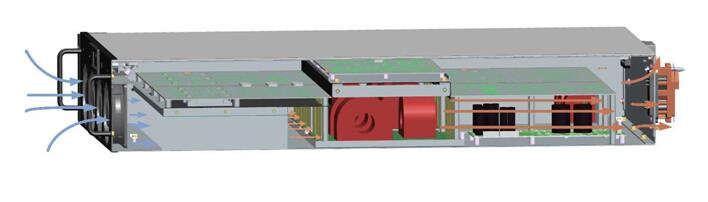

Cooling air flows in the lower layer, keeping the upper PCB free of dust
One air flow channel ensures fans redundancy, even one fan fails, power module can run normally
Unique Design for High Reliability

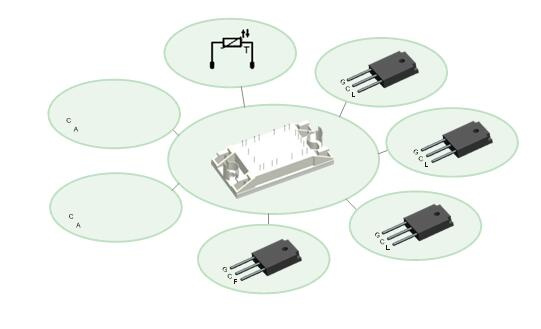

Instead of discrete IGBT and SCR components, RM series UPS uses modular IGBT and SCR in Rectifier and Inverter, bringing in extremely high reliability.
All components in one module, less fault points, higher reliability
All components integrated as one modular design, smaller disparity
Less space needed, UPS with compact design and higher power design
Integrated inner thermal sensors display IGBT inner temperature directly

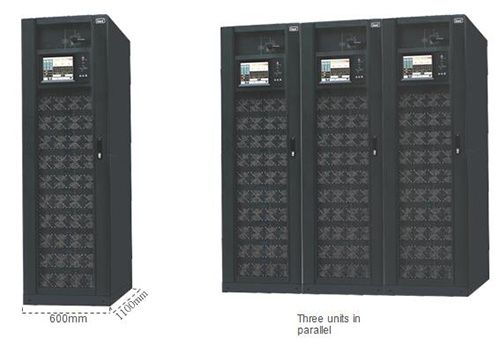

High Density ,Modular, Scalable
High power density, footprint for 300kVA is 0.66m², power density 409kW/m², saving valuable data center space
Scalable from 30kVA to 900kVA, max 30 power modules in parallel
Inherently N+X redundant

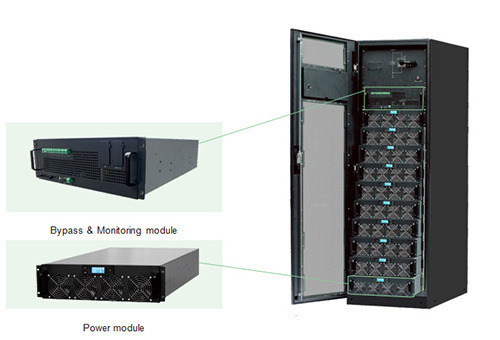

Hot swappable power module and bypass & monitoring module
Additional charging module, extra charging current 50A×N for long time back up application

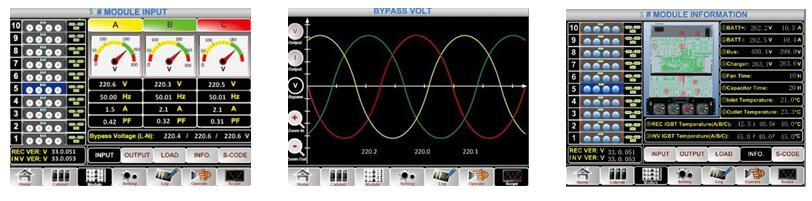

Comprehensive Monitoring Management
In each power module, information of critical components is monitored and displayed in real time, giving customers a view of inner status of the system and providing reminder information for maintenance.
Maintenance reminder, running time of capacitors and fans displayed and recorded
Comprehensive temperature monitoring for thermal abnormal detection
Intelligent battery charger for long battery life
Critical Waveform Recording
UPS can record and save the data of the main parameters automatically when faults happen for further analysis.
Can record data information and present as waveform for further analysis can easily spot the causes of the failures, avoid future similar faults
Smart Sleep
Smart Sleep
Smart Sleep function can intelligently make some power modules go to sleep when load is relatively low, improving the efficiency of the remaining power modules and saving customers on power and cooling costs.
Improving efficiency ,reducing power and cooling costs Easy setting with just two steps. Customers can select
sleep mode and rotation period
Power modules working in rotation, prolong the life time
MODEL
| RM600/30X | RM300/30X | RM180/30X | RM500/25X | RM250/25X | RM150/25X |
Capacity | 600kVA
/540kW | 300kVA
/270kW | 180kVA
/162kW | 500kVA
/500kW | 250kVA
/250kW | 150kVA
/150kW |
Power module | PM30X(30kVA/27kW) | PM25X(25kVA/25kW) |
INPUT |
Phase | 3 Phase + Neutral + Ground,400V/415V(line to line) |
Voltage range | 304-478Vac (line-line),full load;
228V-304Vac (Line-Line),load decrease linearly according to the min phase voltage |
Frequency range | 40Hz-70Hz |
Power Factor | >0.99 |
THDi | THDi<3% @ 100% linear load |
OUTPUT |
Voltage | 380V/400V/415V |
Voltage Regulation | 1.5% |
Power factor | 0.9 | 1.0 |
THDu | THD<1%(linear load ),THD<5.5%(None-linear load) |
Crest Factor | 3:1 |
Overload Capability | 110% for 1 hour; 125% for 10 minutes ;150% for1 minute; >150% for 200ms |
BATTERY |
Voltage | ±240VDC |
Charge Power
Precision | ±1% |
Charge Power | 20%*System Power |
SYSTEM |
System Efficiency | Normal mode:95% ;ECO mode:99% ;Battery mode:95% |
Display | 10.4" color touch screen LCD + LED + Keyboard |
IP Class | IP20 |
Interface | Standard :RS232,RS485,Dry contacts, USB;
Optional: SNMP ,Expansion dry contact card |
Operation/
Storage Temperature | 0-40ºC/-40-70ºC |
Relative Humidity | 0-95%(non-condensing) |
Noise | 72dB @ 100% load,
68dB @ 45% load
(1 meter away) | 65dB @ 100% load,
62dB @ 45% load
(1 meter away) | 72dB @ 100% load,
68dB @ 45% load
(1 meter away) | 65dB @ 100% load,
62dB @ 45% load
(1 meter away) |
PHYSICAL |
Weight | Cabinet | 660kg | 220kg | 165kg | 660kg | 220kg | 165kg |
Power Module | PM30X:34kg | PM25X:32kg |
Dimension
(W*D*H) | Cabinet | 2000*1050
*2000(mm) | 600*1100
*2000(mm) | 600*1100
*1600(mm) | 2000*1050
*2000(mm) | 600*1100*
2000(mm) | 600*1100
*1600(mm) |
Power Module | PM30X/ PM25X:460*790*134(mm)
460*790*134 |
