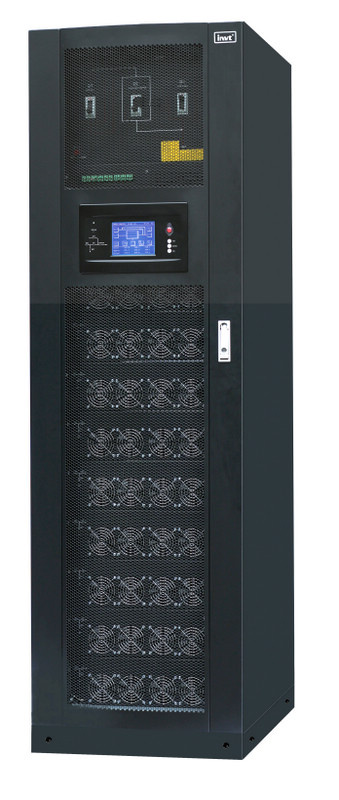

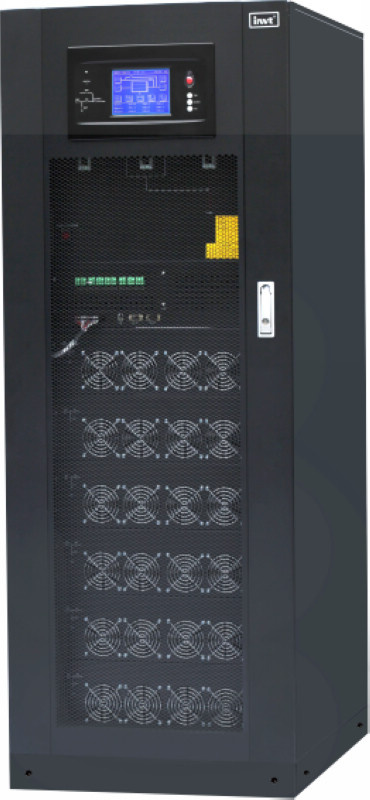

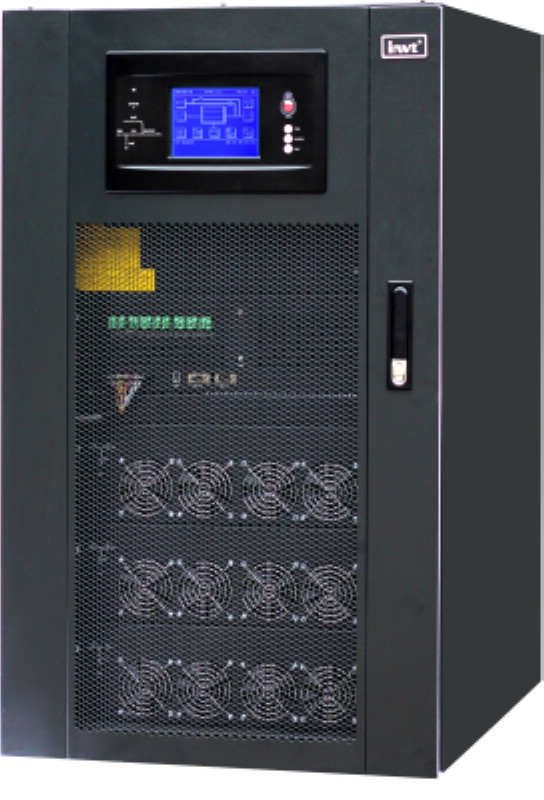

20-200kVA (380V/400V/415V) RM Series Modular Online UPS
| Price: |
US $ 1000-200000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
RM series is modular online UPS for sensitive equipments. The single cabinet power rating covers from 20kVA to 200kVA. With the latest IGBT three-level and full DSP control technology, the RM series delivers the best of combination of reliability
Up to 20 power module in parallel 0nline hot-swappable N+X redundancy 200kVA with footprints of about 0.5m saving valuable datacenter space Independent charger for each module Intelligently control the whole charging process with Prolong the life time of the battery Integrated IGBT in one module, less failure points with higher performance and reliability UPS can be powered on from the battery without utility Touch LCD display with abundant information Top and bottom cable entry connection are supported, more convenient for site installation System can record the running time for critical components and set reminding time for replacement - Modular design with transformer

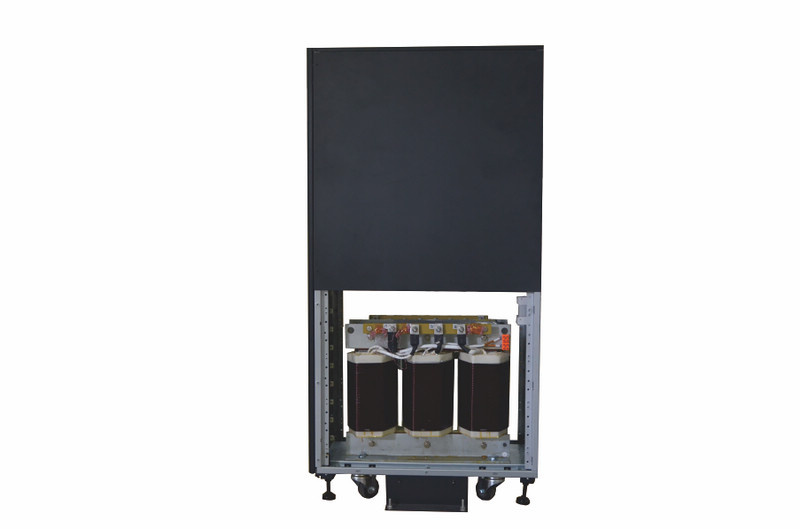

| MODEL | RM200/20 | RM120/20 | RM060/20 | RM060/20-TX
(In-built transformer) |

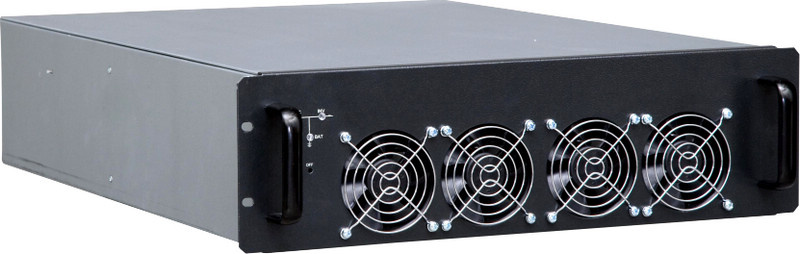

| Power module type | PM20(20kVA) |
| INPUT |
| Phase | 3 Phase+ Neutral + Ground,380V/400V/415V(line to line) |
| Voltage range | 304-478Vac (Line-Line),full load;
228V-304Vac (Line-Line),load decrease linearly according to the min phase voltage |
| Frequency range | 40Hz-70Hz |
| Power factor | >0.99 |
| THDi | THDi<3% @ 100% linear load |
| OUTPUT |
| Voltage | 380V/400V/415V |
| Voltage regulation | 1.5% |
| Power factor | 0.9 | 0.8 |
| THDu | THD<1.5%(linear load ),THD<5%(None linear load) |
| Crest ratio | 3:1 |
| Overload capability | 110% for 1 hour; 125% for 10 minutes ;150% for1 minute; >150% for 200ms |
| BATTERY |
| Voltage | ±240VDC |
| Charge power | 20%*System Power |
| Charge voltage precision | ±1% |
| SYSTEM |
| System efficiency | Normal mode:95% ;ECO mode:99% ;Battery mode:95% |
| Display | LCD+LED, Touch Screen +Keyboard |
| IP Class | IP20 |
| Interface | Standard:RS232,RS485,Dry contacts;
Optional: SNMP |
| Operation/Storage temperature | 0-40ºC/-40-70ºC |
| Relative humidity | 0-95%(non-condensing) |
| Noise | 55dB @ (1 meter away) |
| PHYSICAL |
| Weight | Cabinet | 179kg | 145kg | 105kg | 400kg |
| Power module | 22kg |
| Dimension (W*D*H) | Cabinet | 600*900*2000(mm) | 600*900*1600(mm) | 600*900*1100(mm) | 600*900*1600(mm) |
| Power module | 440*590*134 |
| Prod Model: |
Modular Online UPS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power Factor: |
0.9 |
| Output Voltage: |
380V/400V/415V |
| Certification: |
Ce ISO9001 ISO14001 ISO18001 |
| Power: |
20-200kVA |
| Voltage Range: |
304-478VAC (Line-Line),Full Load; |
| Overload Capability: |
110% for 1 Hour; 125% for 10 Minutes ;150% For1 Mi |
| System Efficiency: |
Normal Mode:95% ;Eco Mode:99% ;Battery Mode:95% |
| Display: |
LCD+LED,Touch Screen+Keyboard |
| Interface: |
Standard :RS232,RS485,Dry Contacts, USB; Optional: |
| Relative Humidity: |
0-95%(Non-Condensing) |
| Phase: |
Three Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
OEM |
As leading total power solution manufacturer in China, INVT POWER is committed to offer high quality products and service to global customers. The powerful R&D ability insures that products and solutions are the best choice for critical power applications.
The product lines cover modular UPS, high frequency UPS, low frequency UPS, EPS, inverter, telecom rectifier, battery. With our own complete intellectual properly rights, the power ranges from 0.5kVA to 800kVA. INVT owns advanced power supply technologies including DSP intelligent control system, fully digital parallel technique, fully IGBT technology UPS, advanced protection technique, etc.
INVT established the most powerful R&D platform for power supply development in China. The platform includes components lab, performance lab, mechanical environmental lab, climate environment lab, EMC lab and safety lab. Due to all of these technologies and platform, INVT products are considered to be the most advanced and reliable in China.
