Product Description

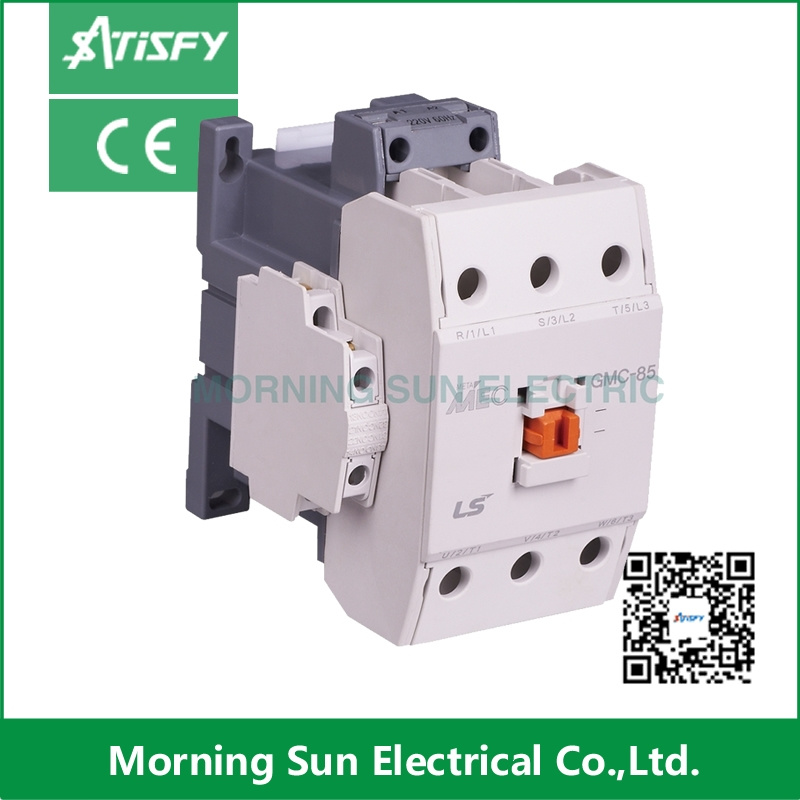

GMC Magnetic AC Contactor

GMC(power contactor, ac contactor)series AC contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 9A to 135A, making and breaking and frequent starting, controls the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc, it is combined into the delay contactor, mechanical interlocking contactor, drat-delta starter, with the thermal relay, it is combined into the electro magnetic starter. This product conforms to the requirement of IEC 60947 4 -1 & GB14048.4 standards.

Type				GMC-9	GMC-12	GMC-18	GMC-22	GMC-32
IEC-60947	AC 1 duty			20A	20A	25A	32A	50A
	AC3 duty		200-240V	2.5KW11A	3.5KW13A	4.5KW18A	5.5KW22A	7.5KW32A
			380-440V	4KW9A	5.5KW12A	7.5KW18A	11KW22A	15KW32A
			500-550V	4KW7A	7.5KW12A	7.5KW13A	15KW22A	18.5KW28A
			690V	4KW5A	7.5KW9A	9.5KW9A	15KW18A	18.5KW21A
UL	Continuous current (Ith)			20A	25A	30A	32A	45A
	AC motor	Single phase	115V	0.5HP	0.5HP	1HP	2HP	2HP
		Single phase	230V	1HP	2HP	3HP	3HP	5HP
		Three phase	200V	2HP	3HP	5HP	7HP	7.5HP
			230V	3HP	3HP	5HP	7.5HP	10HP
			460V	2HP	7.5HP	10HP	10HP	20HP
			575V	5HP	10HP	15HP	15HP	20HP
Life time (unit:10,000 time)			Electrical	250	250	250	250	200
Life time (unit:10,000 time)			Mechanical	2500	2500	2500	2500	1500
Aux.contact			1NO1NC	1NO1NC	1NO1NC	1NO1NC	1NO1NC	2NO2N

Type				GMC-40	GMC-50	GMC-65	GMC-75	GMC-85
IEC-60947	AC 1 duty			60A	80A	100A	110A	135A
	AC3 duty		200-240V	11KW40A	15KW55A	18.5KW65A	22KW75A	25KW85A
			380-440V	18.5KW40A	22KW50A	30KW65A	37KW75A	45KW85A
			500-550V	22KW32A	30KW43A	37KW60A	45KW64A	45KW75A
			690V	22KW25A	30KW33A	37KW33A	45KW47A	45KW52A
UL	Continuous current (Ith)			50A	70A	80A	90A	100A
	AC motor	Single phase	115V	3HP	3HP	5HP	5HP	7.5HP
		Single phase	230V	5HP	7.5HP	10HP	15HP	15HP
		Three phase	200V	10HP	10HP	15HP	20HP	25HP
			230V	10HP	15HP	20HP	25HP	30HP
			460V	25HP	30HP	40HP	50HP	50HP
			575V	25HP	30HP	40HP	50HP	50HP
Life time (unit:10,000 time)			Electrical	200	200	200	200	200
Life time (unit:10,000 time)			Mechanical	1500	1000	1000	1000	1000
Aux.contact			standard	2NO2NC	2NO2NC	2NO2NC	2NO2NC	2NO2NC

Prod Model:	GMC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Electricity Type: AC:	Phase: 3pole
High Quality Competitive Prices:	OEM
Usage:	Contactor
