High Performance Ni-Cd ultra high rate battery KPX150 for engine starting
Product Details

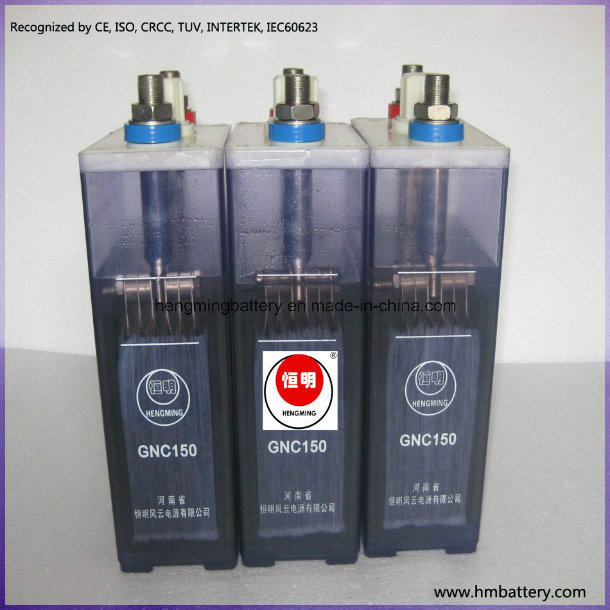

Model: GNC150=KPX150
Dimension: 165*105*350(mm)
Nominal voltage:1.2V/cell
Nominal capacity: 150Ah
Battery Characters:
1. long service life.
2. Excellent over charge and discharge capability.
3. Wide work temperature, can be used in-40~+45°C.
4. Excellent charge and discharge performance.
5. The battery has a high mechanical strength, it can be operated under the condition of shock and vibration.
6. High reliability.
7. Use and maintenance simply.
sintered series ni-cd rechargeable starting battery
sintered ni-cd battery with stable performance, be wide used as the starting energy.
as the special construction to keep this series battery with a high working performance.
max discharging current: 8C5A.
maintance: low& easy
wide working temperature: -40~+60ºC.
wide capacity: 10ah~250ah.
special dimension design: be accepted
Cell Capacity and Dimensions
| KPX=GNC(Ultra High Rate Type) Sintered----Sintered |
| Cell Type | Nominal
Voltage (V) | Rated Capacity (Ah) | Dimension(mm) | Thread of pole | Weight (filled) (Kg) | Electrolyte Volume (L) | Container Material |
| L | W | H |
| GNC5 | 1.2 | 5 | 81 | 26 | 163 | M8 | 0.51 | 0.05 | ABS |
| GNC10 | 1.2 | 10 | 81 | 26 | 163 | M8 | 0.62 | 0.06 | ABS |
| GNC10-(2) | 1.2 | 10 | 81 | 34 | 245 | M10 | 1.1 | 0.13 | ABS |
| GNC20 | 1.2 | 20 | 81 | 34 | 245 | M10 | 1.25 | 0.12 | ABS |
| GNC20-(2) | 1.2 | 20 | 138 | 61 | 266 | M10 | 2.8 | 0.5 | ABS/PP |
| GNC20-(3) | 1.2 | 20 | 81 | 43 | 266 | M10 | 1.7 | 0.2 | ABS/PP |
| GNC30 | 1.2 | 30 | 81 | 43 | 266 | M10 | 1.75 | 0.2 | ABS/PP |
| GNC30-(2) | 1.2 | 30 | 138 | 61 | 266 | M10 | 3 | 0.5 | ABS/PP |
| GNC40 | 1.2 | 40 | 81 | 43 | 266 | M10 | 1.85 | 0.2 | ABS/PP |
| GNC40-(2) | 1.2 | 40 | 80 | 35 | 235 | M10 | 1.5 | 0.16 | Nylon |
| GNC40-(3) | 1.2 | 40 | 138 | 61 | 266 | M10 | 3.3 | 0.5 | ABS/PP |
| GNC40-(4) | 1.2 | 40 | 100 | 85 | 138 | M10 | 1.6 | 0.2 | ABS |
| GNC50 | 1.2 | 50 | 81 | 50 | 266 | M10 | 2.14 | 0.25 | ABS |
| GNC50-(2) | 1.2 | 50 | 138 | 61 | 266 | M16 | 3.5 | 0.5 | ABS/PP |
| GNC60 | 1.2 | 60 | 81 | 50 | 266 | M10 | 2.2 | 0.24 | ABS |
| GNC60-(2) | 1.2 | 60 | 138 | 61 | 266 | M16 | 3.8 | 0.5 | ABS/PP |
| GNC70 | 1.2 | 70 | 138 | 61 | 266 | M16 | 4 | 0.4 | ABS/PP |
| GNC80 | 1.2 | 80 | 138 | 61 | 266 | M16 | 4.2 | 0.4 | ABS/PP |
| GNC80-(2) | 1.2 | 80 | 86 | 86 | 276 | M10 | 3.6 | 0.45 | PP |
| GNC80-(3) | 1.2 | 80 | 86 | 86 | 305 | M10 | 3.8 | 0.6 | PP |
| GNC90 | 1.2 | 90 | 138 | 61 | 266 | M16 | 4.3 | 0.4 | ABS/PP |
| GNC100 | 1.2 | 100 | 138 | 61 | 266 | M16 | 4.3 | 0.4 | ABS/PP |
| GNC100-(2) | 1.2 | 100 | 148 | 78 | 196 | M16 | 4.3 | 0.25 | ABS |
| GNC100-(3) | 1.2 | 100 | 139 | 79 | 295 | M16 | 5.5 | 1.4 | ABS |
| GNC110 | 1.2 | 110 | 138 | 61 | 266 | M16 | 4.5 | 0.4 | ABS/PP |
| GNC110-(2) | 1.2 | 110 | 139 | 79 | 295 | M16 | 5.5 | 1.4 | ABS |
| GNC120 | 1.2 | 120 | 138 | 61 | 266 | M16 | 4.6 | 0.35 | ABS/PP |
| GNC120-(2) | 1.2 | 120 | 139 | 79 | 295 | M16 | 5.5 | 1.4 | ABS |
| GNC130 | 1.2 | 130 | 139 | 79 | 295 | M16 | 5.6 | 1.4 | ABS |
| GNC140 | 1.2 | 140 | 165 | 105 | 350 | M20 | 9.5 | 1.9 | ABS/PP |
| GNC140-(2) | 1.2 | 140 | 139 | 79 | 362 | M16 | 9 | 1.7 | ABS/PP |
| GNC140-(3) | 1.2 | 140 | 139 | 79 | 295 | M16 | 6 | 1.3 | ABS |
| GNC150 | 1.2 | 150 | 165 | 105 | 350 | M20 | 9.5 | 1.8 | ABS/PP |
| GNC150-(2) | 1.2 | 150 | 139 | 79 | 362 | M16 | 9.3 | 1.6 | ABS/PP |
| GNC150-(3) | 1.2 | 150 | 139 | 79 | 295 | M16 | 6 | 1.2 | ABS |
| GNC160 | 1.2 | 160 | 165 | 105 | 350 | M20 | 9.5 | 1.75 | ABS/PP |
| GNC160-(2) | 1.2 | 160 | 139 | 79 | 362 | M16 | 9.5 | 1.6 | ABS/PP |
| GNC160-(3) | 1.2 | 160 | 139 | 79 | 295 | M16 | 6.5 | 1.5 | ABS |
| GNC170 | 1.2 | 170 | 165 | 105 | 350 | M20 | 9.5 | 1.7 | ABS/PP |
| GNC170-(2) | 1.2 | 170 | 139 | 79 | 295 | M16 | 6.7 | 1.5 | ABS |
| GNC170-(3) | 1.2 | 170 | 139 | 79 | 362 | M16 | 9.5 | 1.6 | ABS/PP |
| GNC190 | 1.2 | 190 | 165 | 105 | 350 | M20 | 9.9 | 1.7 | ABS/PP |
| GNC210 | 1.2 | 210 | 165 | 105 | 350 | M20 | 10.5 | 1.6 | ABS/PP |
| GNC230 | 1.2 | 230 | 167 | 162 | 343 | M16 | 13 | 2.8 | ABS/PP |
| GNC230-(2) | 1.2 | 230 | 146 | 128 | 363 | M20 | 10 | 3 | ABS |
| GNC250 | 1.2 | 250 | 167 | 162 | 343 | M16 | 13 | 2.6 | ABS/PP |
| GNC250-(2) | 1.2 | 250 | 146 | 128 | 363 | M20 | 10 | 3 | ABS |
Contact
HengMing Group is a high-tech company in Henan with more than $10 million in capital 30 years of experience. Our factory covers an area of 16, 000 square meters manned by 280 workers including 10 professional engineers. Hengming-branded products are popular in mainland China.

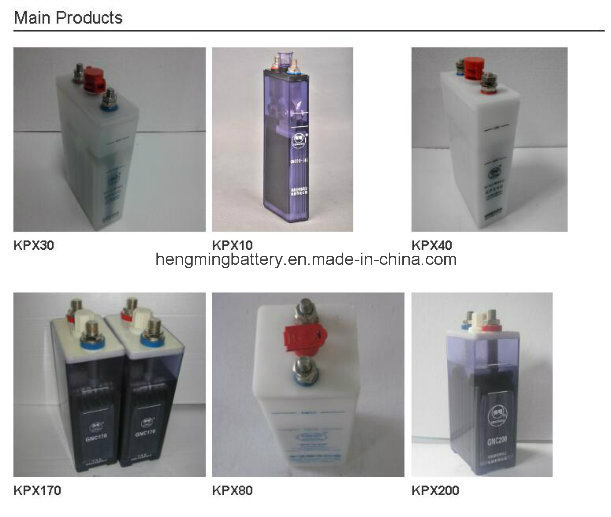

We offer Ni-CD batteries in KPL, KPM, KPH, KPX series. They are widely used in the Railway signaling, Alarms, Telecommunications, UPS, DC power sources, Power plant, Engine starting, Emergency back-up power, etc.
We offer Ni-Fe solar batteries in TN series. They are widely used for Solar energy, On-gird off-gird PV power system, specially suitable for solar photovoltaic applicationsrenewable energy storage applications.
We offer Ni-MH pocket type batteries, capacity range from 10Ah to 1200Ah.
HengMing's products have been exported to more than 20 countries and regions including Singapore, South Korea, Malaysia, the United States, Spain, Iran, Mexico, Pakistan, Bangladesh, Indonesia, Poland, Turkey, etc
