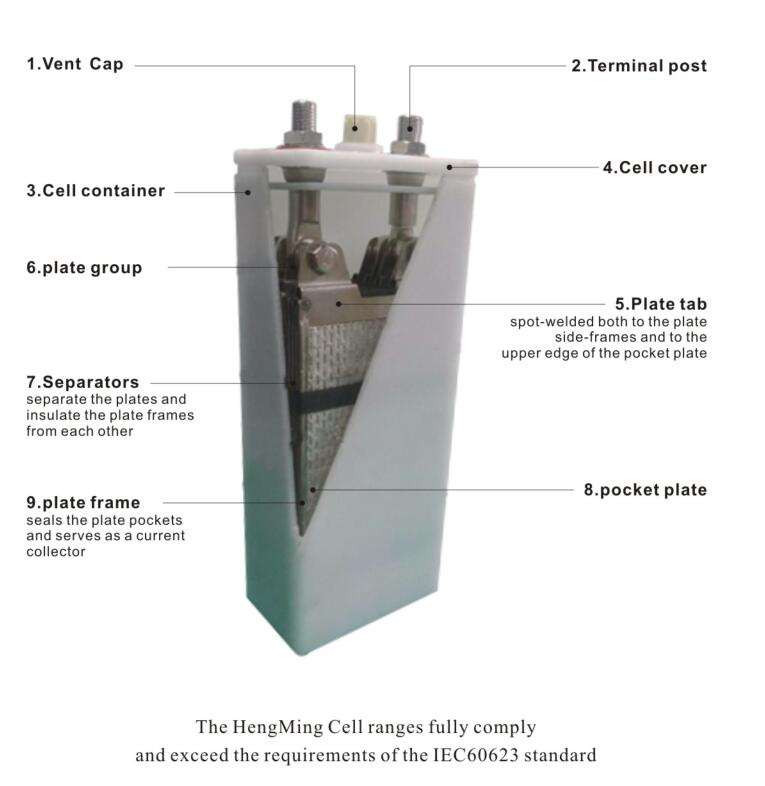

Cell construction

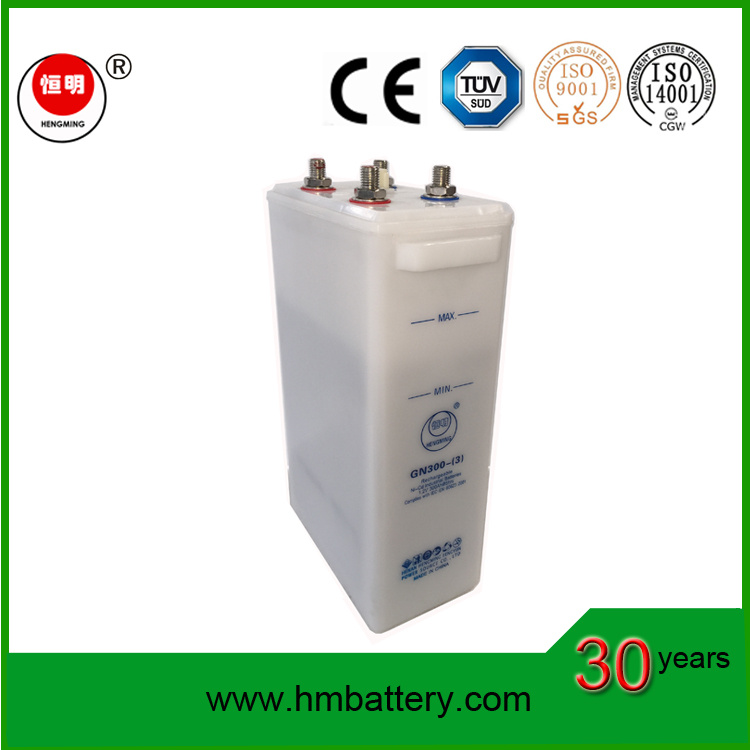

Description1.Cell type:GN300=KPL300 (low rate discharge nickel cadmium battery)
2.Rated capacity:300AH
3.Nominal voltage:1.2V
4.Container material :PP
5.Delivery with dry battery . electrolyte(KOH+LIOH+DISTILLED WATER)

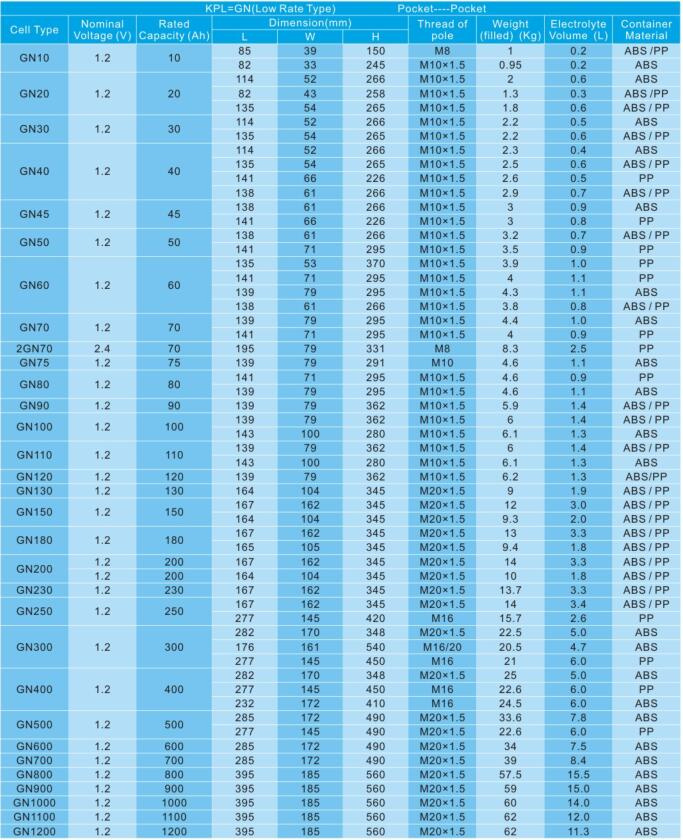

Type List
Cycle lifeOne cycle means a cell is fully charged and discharged. The cell's cycle life should not be less than 900 cycle. According to the applicable IEC standard,it shoud be 500 cycles at least. in case of float charge application,its cycl life may be longer.
Advantage of hmbattery1.Having packing room,welding room,assembling room,heating room,production room etc
2.Wide operating temperature range from -25 °C to 45°C
3.Long service life more than 20 years
4.Excellent charging efficiency and smooth discharge voltage
5.High resistance to mechanical and electrical abuse
6.Plastic maerial is produced by our own factory
7.Low maintenance cost and replacement cost.
8.Excellent sales man and engineers
9.Fastest delivery time
10.30 years Ni-Cd manufacture experience
12.Top three sales in China NiCd battery field
ApplicationNickel-cadmium pocket plate batteries are available in three different plate designs optiized with regard to the required discharge(back up ) time. these categories are:
High Rate(KPH) for discharge periods of less than 60 minutes
Medium Rate(KPM) for discharge periods of more than 60 minutes
Low Rate(KPL) for discharge periods of more than 120 minutes
These cell ranges do perfectly satisfy the requirements of a really wide variety of different applications.
1.High rate batteries Typical high rate applications are,among others:
Electro Magnets
Engine Starting
Switchgears
Uninterruptible power supply (UPS)
2. Medium rate batteries Typical medium rate applications are,among others:
Electric Train Control
Process Control
Turbine Starting
3.Low Rate Batteries Typical medium rate applications are,among others:
Alarms
Railway Signalling
Telecommunications
Company InformationHenan Hengming Fengyun Power Souce Co.,Ltd is professional ni-cd railway storage batteries manufacturer in China and have been in this line for 30 years.
our products have been exported to more than 20 countries, which performance is better and widely used for DC power, back-up power of railway, railway signaling, UPS, boat, Solar home application, boat, engine starting, etc
Hengming have attained the certificates of ISO9001 & ISO14001, and our products are accredited with TUV / CE/ IEC.

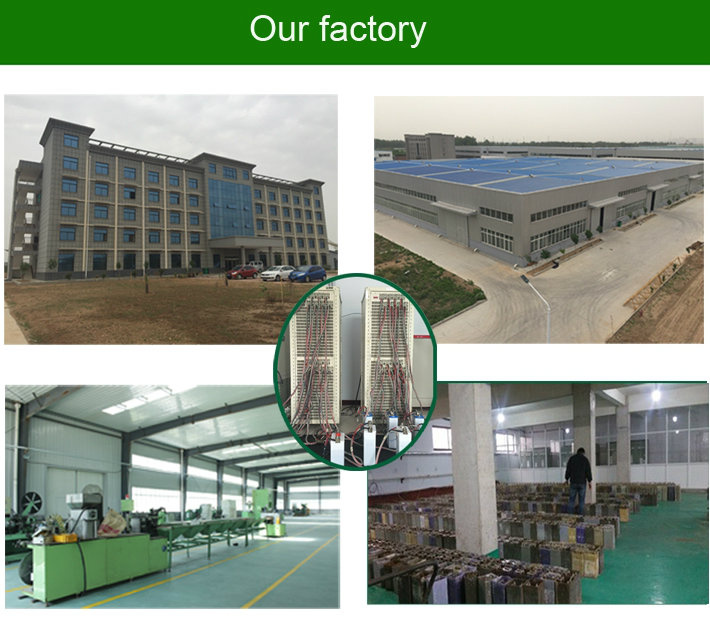

We built a new factory to expand our business.
Welcome to visit our new factory.

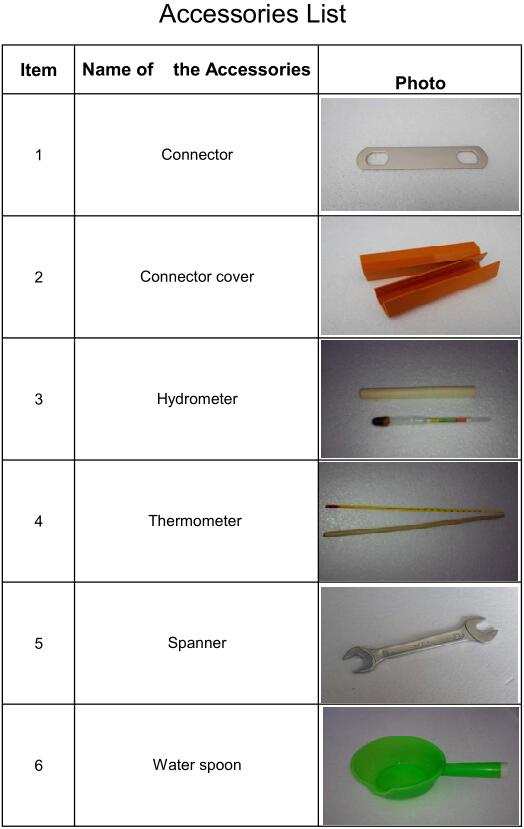

Packing and ShippingThe battery will be packed by polywood case. Electrolyte powder or wet electrolyte will be sent with accessories.
Certification
Contact us
HengMing Group is a high-tech company in Henan with more than $10 million in capital 30 years of experience. Our factory covers an area of 16, 000 square meters manned by 280 workers including 10 professional engineers. Hengming-branded products are popular in mainland China.
We offer Ni-CD batteries in KPL, KPM, KPH, KPX series. They are widely used in the Railway signaling, Alarms, Telecommunications, UPS, DC power sources, Power plant, Engine starting, Emergency back-up power, etc.
We offer Ni-Fe solar batteries in TN series. They are widely used for Solar energy, On-gird off-gird PV power system, specially suitable for solar photovoltaic applicationsrenewable energy storage applications.
We offer Ni-MH pocket type batteries, capacity range from 10Ah to 1200Ah.
HengMing's products have been exported to more than 20 countries and regions including Singapore, South Korea, Malaysia, the United States, Spain, Iran, Mexico, Pakistan, Bangladesh, Indonesia, Poland, Turkey, etc
