HengMing---Specialized in Ni-Cd Battery

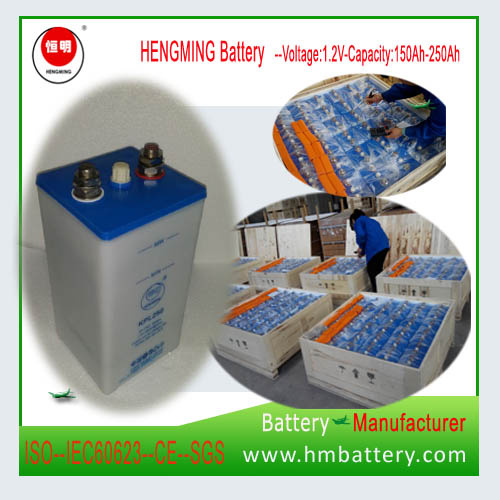

The data sheet of GN250 as follow:
1.cell type:GN250=KPL250 (Low rate dicharge battery with long discharge time)
2.rated capacity:250AH
3.nominal voltage:1.2V
4.container :ABS,PP
5.delivery with dry battery . electrolyte(KOH+LIOH+DISTILLED WATER)
Company Instruction
Henan Hengming Fengyun Power Source Co.,Ltd. is founded in 1996 and located in the middle of China transport central area,
Xinxiang city which is the first group developing industry city in New China. According the developing need our new
subsidiary company(Henan Hengming New Energy Co., Ltd.) is finished and had working in 2014.

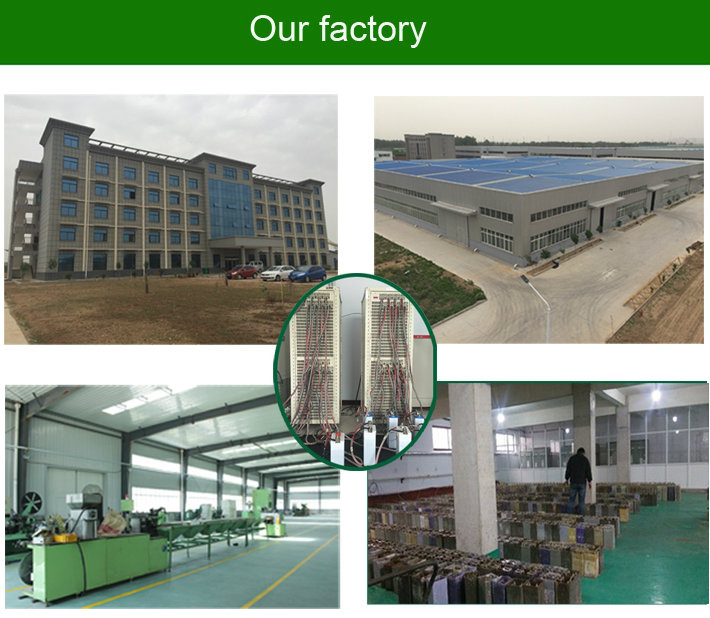

Factory Introduction:
Hengming factory total area is 44 thousands square meters. More than 300 staff is working here, among of which has over 40
senior and semi-senior engineering technicians specializing in researching chemical battery and its management system. Parts
of our engineers own more than 35years working experience in this battery field.
Main Products:
Hengming products can be divided three series: NI-CD(nickel cadmium) battery, NI-FE(nickel iron)battery,
NI-MH(nickel metal hydride)battery. From the performance by the useful wield can be divided four series: Ultra high rated,
High rated, Medium rated& Low rated.
Main Market:
South American, Europe, Asia(Mexico, Peru, Brazil, Canada, New Zealand, Australian, Indonesia, Malaysia, Singapore, Korea,
Vietnam, Burma, Thailand, Sudan, Iraq, Iran, Pakistan, Saudi Arabia, Kenya, Syria, Egypt, England, Spain, Poland,
Turkey… )
Production Ability:
Hengming annual output more than 50millions Ah to the world, and the highest production rate can meet 4.7millions Ah each
month. 10 production lines could be working in the same time.
Company Focus:
Hengming always focus on the alkaline battery production quality and innovation. The quality is Hengming's root, only the
root is strong enough, Hengming can be strong enough; Innovation is Hengming's sunlight, only the sunlight is more enough,
Hengming can be sunlight enough.
Products Application:
UPS(uninterrupted power supply)
Power system
Telecommunications system
Wind power plant/station
Petrochemical Industry
PV(photo voltaic) system
Mass transits system
Emergency lighting system
Railway signaling
Electrical power system
Fire& security system
Switch/process control system
Switch gears
Radio and radio stations, ect ...
Ni-Cd battery is the main product of Henan Hengming Fengyun Power Source Co., Ltd, which is sold to domestic and abroad. It has a bright future. There are low rate, medium rate, high rate and Ultra High rate.
The advantages of hengming ni-cd battery
1.low cost price with high quality
2.wide operating temperature range from -25 °C to 45°C
3.long service life more than 20 years
4.Excellent charging efficiency and smooth discharge voltage
5.high resistance to mechanical and electrical abuse
6.Low maintenance cost and replacement cost.
7.PP/ABS is produced by our own factory
8.30 years ni-cd battery manufacturer experiences
The HengMing cell range meet, exceed the requirement of IEC60623 standard, there are low, medium, high, ultra high rate discharge types.
KPL type (low discharge rate cell)
KPL series low rate nickel cadmium battery is made of pocket plates The battery is designed for general purpose and standby applications such as lighting on trains, operation of circuit breaker
KPM type (medium discharge rate cell)
KPM series medium rate nickel cadmium battery is made of pocket plates The battery is suitable for medium discharge rate applications (between 30 minutes to 5 hours) such as railroad DC power sources, UPS, gas turbine control
KPH type (high discharge rate cell)
KPH series high rate nickel cadmium battery is made of pocket plates It has the characteristics of thin plates, high porosity, and low internal resistance The battery is particularly suitable for high discharge rate applications such as UPS, switchgear tripping and closing
KPX type(uktra high rate cell)
KPX series ultra high rate nickel cadmium battery which made of sintered plate is characterized by compact construction, low internal resistance, high reliability, high capacity, long service life and excellent low temperature performance.
Ultra high rate cells for engine starting, emergency back-up power, civil aviation, etc.
Ni-Cd Battery Charging Method:
1.Constant current charge: 0.2C5A for 8 hours;
2.Floating charge: (1)Low rate:1.44-1.50V/pc; (2) Medium rate:1.42-1.45V/pc;
(3) High rate:1.40-1.43V/pc, (4) Ultra high rate:1.36-1.38V/pc,
3.Equilibrium charge 1.55-1.60V/pc for 12 hours Ni-Cd High Rate
Specification
| KPL=GN(Low Rate Type) Pocket----Pocket |
| Cell Type | Nominal
Voltage (V) | Rated Capacity (Ah) | Dimension(mm) | Thread of pole | Weight (filled) (Kg) | Electrolyte Volume (L) | Container Material |
| L | W | H |
| GN10 | 1.2 | 10 | 85 | 39 | 150 | M8 | 1 | 0.2 | ABS /PP |
| 82 | 33 | 245 | M10*1.5 | 0.95 | 0.2 | ABS |
| GN20 | 1.2 | 20 | 114 | 52 | 266 | M10*1.5 | 2 | 0.6 | ABS |
| 82 | 43 | 258 | M10*1.5 | 1.3 | 0.3 | ABS /PP |
| 135 | 54 | 265 | M10*1.5 | 1.8 | 0.6 | ABS / PP |
| GN30 | 1.2 | 30 | 114 | 52 | 266 | M10*1.5 | 2.2 | 0.5 | ABS |
| 135 | 54 | 265 | M10*1.5 | 2.2 | 0.6 | ABS / PP |
| GN40 | 1.2 | 40 | 114 | 52 | 266 | M10*1.5 | 2.3 | 0.4 | ABS |
| 135 | 54 | 265 | M10*1.5 | 2.5 | 0.6 | ABS / PP |
| 141 | 66 | 226 | M10*1.5 | 2.6 | 0.5 | PP |
| 138 | 61 | 266 | M10*1.5 | 2.9 | 0.7 | ABS / PP |
| GN45 | 1.2 | 45 | 138 | 61 | 266 | M10*1.5 | 3 | 0.9 | ABS |
| 141 | 66 | 226 | M10*1.5 | 3 | 0.8 | PP |
| GN50 | 1.2 | 50 | 138 | 61 | 266 | M10*1.5 | 3.2 | 0.7 | ABS / PP |
| 141 | 71 | 295 | M10*1.5 | 3.5 | 0.9 | PP |
| GN60 | 1.2 | 60 | 135 | 53 | 370 | M10*1.5 | 3.9 | 1.0 | PP |
| 141 | 71 | 295 | M10*1.5 | 4 | 1.1 | PP |
| 139 | 79 | 295 | M10*1.5 | 4.3 | 1.1 | ABS |
| 138 | 61 | 266 | M10*1.5 | 3.8 | 0.8 | ABS / PP |
| GN70 | 1.2 | 70 | 139 | 79 | 295 | M10*1.5 | 4.4 | 1.0 | ABS |
| 141 | 71 | 295 | M10*1.5 | 4 | 0.9 | PP |
| 2GN70 | 2.4 | 70 | 195 | 79 | 331 | M8 | 8.3 | 2.5 | PP |
| GN75 | 1.2 | 75 | 139 | 79 | 291 | M10 | 4.6 | 1.1 | ABS |
| GN80 | 1.2 | 80 | 141 | 71 | 295 | M10*1.5 | 4.6 | 0.9 | PP |
| 139 | 79 | 295 | M10*1.5 | 4.6 | 1.1 | ABS |
| GN90 | 1.2 | 90 | 139 | 79 | 362 | M10*1.5 | 5.9 | 1.4 | ABS / PP |
| GN100 | 1.2 | 100 | 139 | 79 | 362 | M10*1.5 | 6 | 1.4 | ABS / PP |
| 143 | 100 | 280 | M10*1.5 | 6.1 | 1.3 | ABS |
| GN110 | 1.2 | 110 | 139 | 79 | 362 | M10*1.5 | 6 | 1.4 | ABS / PP |
| 143 | 100 | 280 | M10*1.5 | 6.1 | 1.3 | ABS |
| GN120 | 1.2 | 120 | 139 | 79 | 362 | M10*1.5 | 6.2 | 1.3 | ABS/PP |
| GN130 | 1.2 | 130 | 164 | 104 | 345 | M20×1.5 | 9 | 1.9 | ABS / PP |
| GN150 | 1.2 | 150 | 167 | 162 | 345 | M20×1.5 | 12 | 3.0 | ABS / PP |
| 164 | 104 | 345 | M20×1.5 | 9.3 | 2.0 | ABS / PP |
| GN180 | 1.2 | 180 | 167 | 162 | 345 | M20×1.5 | 13 | 3.3 | ABS / PP |
| 165 | 105 | 345 | M20×1.5 | 9.4 | 1.8 | ABS / PP |
| GN200 | 1.2 | 200 | 167 | 162 | 345 | M20×1.5 | 14 | 3.3 | ABS / PP |
| 1.2 | 200 | 164 | 104 | 345 | M20×1.5 | 10 | 1.8 | ABS / PP |
| GN230 | 1.2 | 230 | 167 | 162 | 345 | M20×1.5 | 13.7 | 3.3 | ABS / PP |
| GN250 | 1.2 | 250 | 167 | 162 | 345 | M20×1.5 | 14 | 3.4 | ABS / PP |
| 277 | 145 | 420 | M16 | 15.7 | 2.6 | PP |
| GN300 | 1.2 | 300 | 282 | 170 | 348 | M20×1.5 | 22.5 | 5.0 | ABS |
| 176 | 161 | 540 | M16/20 | 20.5 | 4.7 | ABS |
| 277 | 145 | 450 | M16 | 21 | 6.0 | PP |
| GN400 | 1.2 | 400 | 282 | 170 | 348 | M20×1.5 | 25 | 5.0 | ABS |
| 277 | 145 | 450 | M16 | 22.6 | 6.0 | PP |
| 232 | 172 | 410 | M16 | 24.5 | 6.0 | ABS |
| GN500 | 1.2 | 500 | 285 | 172 | 490 | M20×1.5 | 33.6 | 7.8 | ABS |
| 277 | 145 | 490 | M20×1.5 | 22.6 | 6.0 | PP |
| GN600 | 1.2 | 600 | 285 | 172 | 490 | M20×1.5 | 34 | 7.5 | ABS |
| GN700 | 1.2 | 700 | 285 | 172 | 490 | M20×1.5 | 39 | 8.4 | ABS |
| GN800 | 1.2 | 800 | 395 | 185 | 560 | M20×1.5 | 57.5 | 15.5 | ABS |
| GN900 | 1.2 | 900 | 395 | 185 | 560 | M20×1.5 | 59 | 15.0 | ABS |
| GN1000 | 1.2 | 1000 | 395 | 185 | 560 | M20×1.5 | 60 | 14.0 | ABS |
| GN1100 | 1.2 | 1100 | 395 | 185 | 560 | M20×1.5 | 62 | 12.0 | ABS |
| GN1200 | 1.2 | 1100 | 395 | 185 | 560 | M20×1.5 | 62 | 11.3 | ABS |
Packing and Shipping

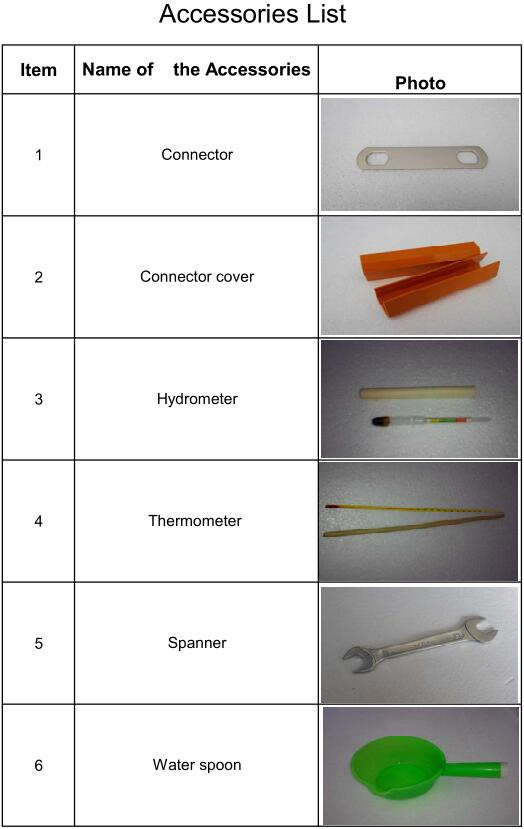

The battery will be packed by polywood case. Electrolyte powder or wet electrolyte will be sent with accessories.
Contact us
HengMing Group is a high-tech company in Henan with more than $10 million in capital 30 years of experience. Our factory covers an area of 16, 000 square meters manned by 280 workers including 10 professional engineers. Hengming-branded products are popular in mainland China.
We offer Ni-CD batteries in KPL, KPM, KPH, KPX series. They are widely used in the Railway signaling, Alarms, Telecommunications, UPS, DC power sources, Power plant, Engine starting, Emergency back-up power, etc.
We offer Ni-Fe solar batteries in TN series. They are widely used for Solar energy, On-gird off-gird PV power system, specially suitable for solar photovoltaic applicationsrenewable energy storage applications.
We offer Ni-MH pocket type batteries, capacity range from 10Ah to 1200Ah.
HengMing's products have been exported to more than 20 countries and regions including Singapore, South Korea, Malaysia, the United States, Spain, Iran, Mexico, Pakistan, Bangladesh, Indonesia, Poland, Turkey, etc
