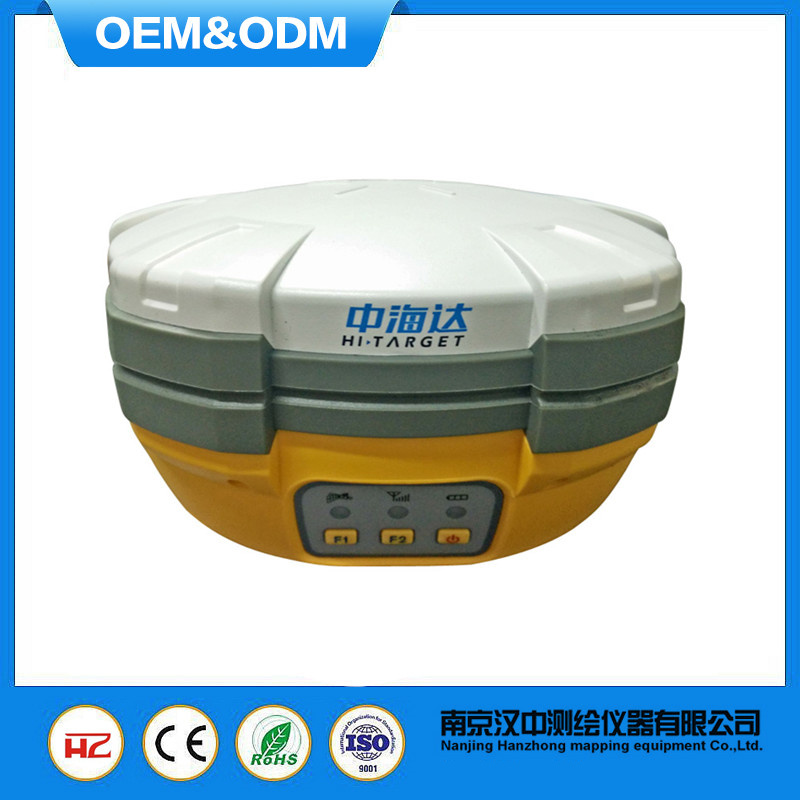

Gnss Rtk Base and Rover Hi-Target V30 GPS Gnss Rtk GPS Receiver

Product Description

V30 GNSS RTK system

Multi-constellation tracking

• 220 tracking channels.
• Supports GPS, GLONASS, GALILEO, BDS, SBAS.
• NGS approved GNSS antenna.

Intelligent operation

• Equipped with a smart speaker guiding the whole operation.
• Multi one-button functions make fieldwork easier, such as auto base setup by one button, the rover can get fix solution once it is turned on.

Diversify RTK application

Optional transceiver UHF radio

• The transceiver UHF radio enables the working mode to be switchable between base and rover.
• 2-watt HI-TARGET internal UHF radio and 2-watt Pacific Crest TrimTalk© internal UHF radio are optional. Pacific Crest TrimTalk© internal UHF radio is compatible with other radios.
  Removable internal UHF radio enables users to fix or exchange simply.

Seamless operation in CORS system

• Built-in GPRS/GSM/3G module ensures that the V30 works perfectly with network RTK positioning.

Long-life battery

• Powered by 5000mAh Li-ion battery.
• Static working time 13 - 15 hours.
• RTK Rover (UHF/GPRS/GSM) working time 10 - 12 hours.
• RTK Base working time 8 - 10 hours.

Rugged and unique design

• IP67 dust/water protection.
• Withstands 3-meter natural fall onto concrete.
• Rapid tracking and perfect avoidance or reduction of obstruction and multipath effect to ensure superior positioning capability.
• Technical parameters
• MEASUREMENTS
  ? 220 Channels
  ? Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology
  ? High precision multiple correlator for GNSS pseudo range measurements
  ? Unfiltered, unsmoothed pseudo range measurements data for low noise, low multipath error, low time domain correlation and high dynamic response
  ? Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth
  ? Signal-to-Noise ratios reported in dB-Hz
  ? Proven Pacific Crest low elevation tracking technology



  Satellite signals tracked simultaneously

  GPS: Simultaneous L1C/A, L2C, L2E, L5
  GLONASS: Simultaneous L1C/A, L1P, L2C/A (GLONASS M only), L2P
  SBAS: Simultaneous L1 C/A, L5
  Galileo: Simultaneous L1 BOC, E5A, E5B, E5AltBOC
  BDS: B1, B2
  QZSS: L1 C/A, L1 SAIF, L2C, L5

  POSITIONING PERFORMANCE

  Static and Fast Static GNSS surveying
  Horizontal: 2.5mm+0.5ppm RMS
  Vertical: 5mm+0.5ppm RMS

  Post Processing Kinematic
  (PPK / Stop & Go) GNSS surveying
  Horizontal: 1cm+1ppm RMS
  Vertical: 2.5cm+1ppm RMS
  Initialization time: typically 10 minutes for base while 5 minutes for rover
  Initialization reliability: typically > 99.9%

  RealtimeKinematic(RTK) surveying
  Horizontal: 8mm+1ppm RMS
  Vertical: 15mm+1ppm RMS
  Initialization time: typically < 8 seconds
  Initialization reliability: typically > 99.9%

  Code Differential GNSS positioning
  Horizontal: 25cm+1ppm RMS
  Vertical: 50cm+1ppm RMS
  SBAS[iv]: 0.50m Horizontal, 0.85m Vertical

  HARDWARE

  Physical
  Dimensions (W x H): 19.50cm x 10.40cm(7.68 in x 4.09 in)
  Weight: 1.3kg (2.86lb) with internal battery, internal radio, standard UHF antenna
  Operating temperature: -45ºCto +65ºC (-49ºF to +149ºF)
  Storage temperature: -55ºC to +85ºC (-67ºF to +185ºF)
  Humidity: 100%, considering
  Water/dustproof: IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft).
  Shock and Vibration: Designed to survive a 3m(9.84ft) natural fall onto concrete.

  Electrical
  Power 6V to 28V DC external power input
  Power consumption 2.5W
  Automatic Switching between internal power and external power
  Rechargeable, removable 7.4V, 5000mAh Lithium-Ion battery in internal battery compartment

  Internal battery life
  Static 13 - 15 hours
  RTK Rover (UHF/GPRS/3G) 10 - 12 hours
  RTK Base 8 - 10 hours

  I/O interface
  1 x Bluetooth
  1 x standard USB2.0 port
  2 x RS232 serial port
  2 x DC power input (8-pin & 5-pin)


  COMMUNICATION AND DATA STORAGE

  GPRS/GSM or 3G
  Fully integrated, fully sealed internal GPRS/GSM or 3G
  Network RTK (via CORS) range20-50km

  HI-TARGET internal UHF radio (standard)
  Frequency: 460 MHz with 116 channels
  Transmitting Power: 0.1W, 1W, 2W adjustable
  Transmitting Speed: Up to 19.2Kbps
  Working Range: 3~5Km typical, 8~10km optimal

  Pacific Crest XDL micro Internal UHF Radio
  Frequency: 403~473 MHz
  Transmitting Power: 0.5W, 1.0W, 2.0W adjustable
  Transmitting Speed: Up to 19.2Kbps
  Support most of radio communication protocol
  Working Range: 3~5km typical, 8~10km optimal

  HI-TARGET External UHF radio (standard)
  Frequency: 460 MHz with 116 channels
  Transmitting Power: 5W, 10W, 20W, 30W adjustable
  Transmitting Speed: Up to 19.2Kbps
  Working Range: 8~10Km typical, 15~20km optimal

  Pacific Crest ADL Vantage Pro External UHF radio
  Frequency: 390~430 MHz or 430~470 MHz
  Transmitting Power: 4W to 35W adjustable
  Transmitting Speed: Up to 19.2Kbps
  Support most of radio communication protocol
  Working Range: 8~10Km typical, 15~20km optimal

  Support other external communication device
  For example, external GSM modem.

  Data storage
  64MB internal memory

  Data formats
  (1Hz positioning output, up to 50 Hz - depends on installed option)
  CMR: sCMRx, CMR, CMR+input and output
  RTCM: RTCM 2.1, 2.2, 2.3, 3.0, 3.1 input and output
  Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS
  Navigation outputs Binary: GSOF
  1 Pulse Per Second Output
