Good Quality Sts-N65 Magnetic Contactor

Name: Good Quality Sts-N65 Magnetic Contactor
Brand: all-electronics-online.com
SKU: 826506435
Availability: InStock
Rating: 4.8 (66 reviews)

Price:	US $ 2.35-2.5/Piece
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

STS Series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-1.

SPECIFICATION

Model	Capacity of 2 phase sqirlel-								Rated heating current 1th(A)
	Rated power (KW)				Rated operate current(A)
	220V-240v	380-440v	550v	660v	220-240V	380V-440V	550v	660v
STS-10	2.5	4.0	4.0	4.0	11	9	7	5	20
STS-11	3.5	5.5	5.5	5.5	13	12	9	7	20
STS-12	3.5	5.5	5.5	5.5	13	12	9	7	20
STS-20	5.5	11	11	7.5	22	22	17	9	32
STS-25	8.5	14	14	14	30	30	12	12	40
STS-35	12	20	20	20	40	40	17	17	40

Shipping

Our Services:

Competitive price
Continuance Service and support
Good-after service
Quality Reliability and Long Product Life.

Company Information

YUEQING SHANTUO ELECTRICAL CO,LTD.
is one of manufactories that specialize in manufacturing AC CONTACTOR, Thermal Relay and Circuit Breaker, and is located in Liushi.Wenzhou.China

Contact us

Thanks for your reading.If any product meets your need.Welcome to send us an email.We are sure your any information can be attentioned without any delay.

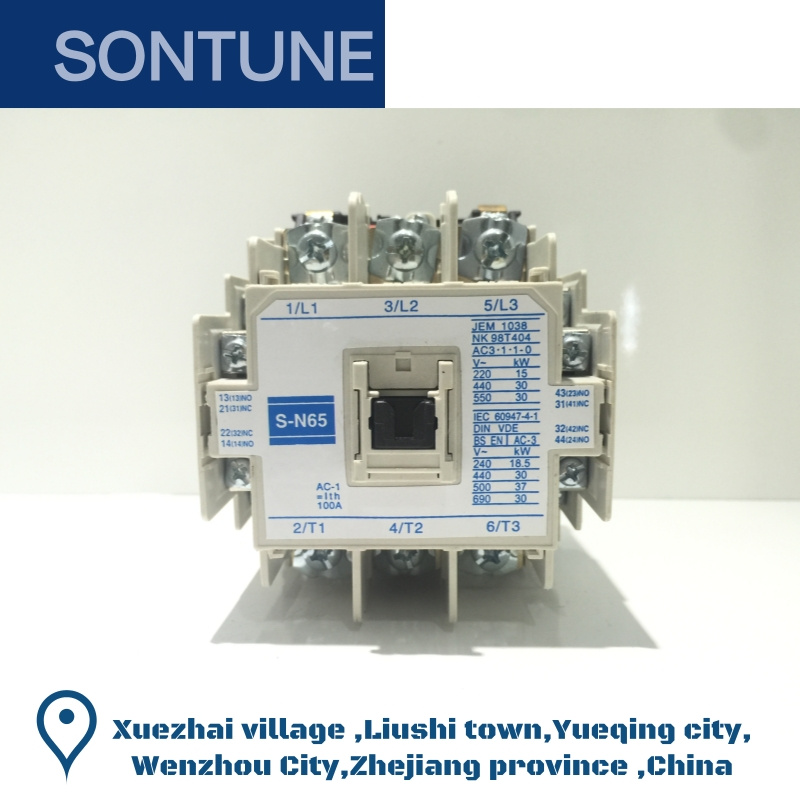

Prod Model:	S-N65
Frequency:	50Hz,60Hz,50Hz/60Hz
Rated Current:	9,12,18,25,32,40,50,65,80,95A
Coil Voltage:	24,48,110,220,230,240,380,415,440V
Standard:	IEC 60947-1

YUEQING SHANTUO ELECTRICAL Co., Ltd. is one of manufactories that specialize in manufacturing AC CONTACTOR, Therminal Relay and Circuit Breaker, and is located in Liushi, Wenzhou, China that called " the Capital of Low Voltage Electronic Products", enjoying convenient transportation access and a beautiful environment. The products have passed CE approvals and strictly comply with IEC standards. The company has advanced detection instruments and strong technical force with strong research and development capability, product constantly updated. The products export Europe, Asia, Southern Amercia, Middle East, Western Africa market. Our manufactory has produced AC contactor and relay about 10years, The products have passed CE certificate.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

On the base of guarrantee the quality, we will try our best to design new model with ourselves patents for the coming years.
