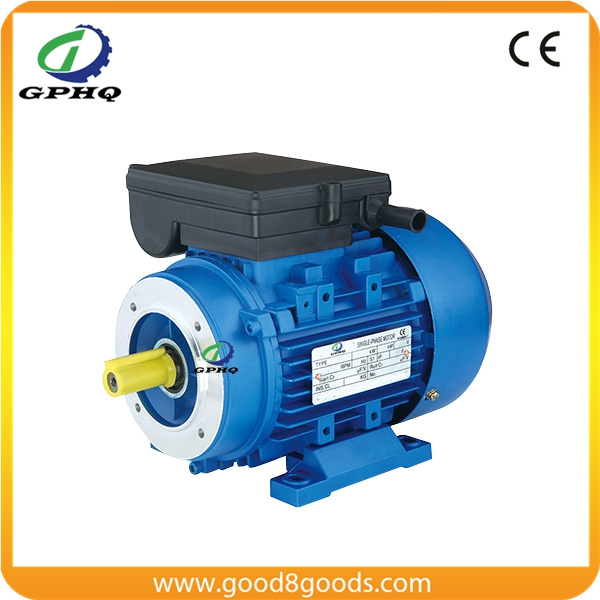

Gphq Ml 0.75kw Single Phase AC Electrical Motor
Price: |
US $ 5-100/Piece |
Min Order: |
5/Piece |
Pay Type: |
L/C,T/T,Western Union |
Motor Power: |
0.18kw-5.5kw |
Output Power: |
100% Output Power |
Voltage: |
220V/230V |
Enamelled Wire: |
Copper Wire ( Also Done Aluminum as Your Need) |
Frequency: |
50/60Hz |
Color: |
Done as Your Need (Connon Blue /Silver) |
Mouting Way: |
B3 /B5 Flange /B35 /B14/B34 |
Insulation Class: |
F |
Protection Grade: |
IP55 |
Number Of Stator: |
Single-Phase |
Number Of Poles: |
2p 4p |
Certification: |
Ce |
Brand: |
Gphq |
Product Description
ML single phase motor
ML series single phase aluminum frame AC motors which adopting the latest design and high quality material are conform to the IEC standard.The efficiency of motor meets EFF2 standard in Europe, and EFF1 standard if request.
The induction motor has a lot of advantages including high efficiency, energy saving, low noise, little vibration,, light weight, convenient operation and maintenance.
The middle speed 1500rpm motor with removable feet is made of aluminum-alloy die casting, user could various mounting mode available.The series motor are fit for the common sites and concise machines that has no special requirements including, air-compressor, pump, fan, medical apparatus and instruments, small machines, etc. Power: | 0.18kw-5.5kw | Voltage: | 220/230V( can can done as your need) |
Frequency: | 50/60hz | Enamelled Wire: | Copper Wire (Can Done Aluminum wire as Your Need) |
Insulation Class: | F | Mounting Way: | B3 Foot /B5 Flange /B35 Foot and Flange/B14 flange/B34 foot and flange |
Protection Grade: | IP55 | motor body : | aluminum |
Our electric motor Advantage
1. High efficiency, low noise ac motor
2. 100% copper wire & 100% output moteur electrique.
3. Nice painting after installing motor
4. Reasonable price with high quality and kind service .
5. Used for machinery without special requirements.
6.longer working life, easy construction,convenient installation and repairmen

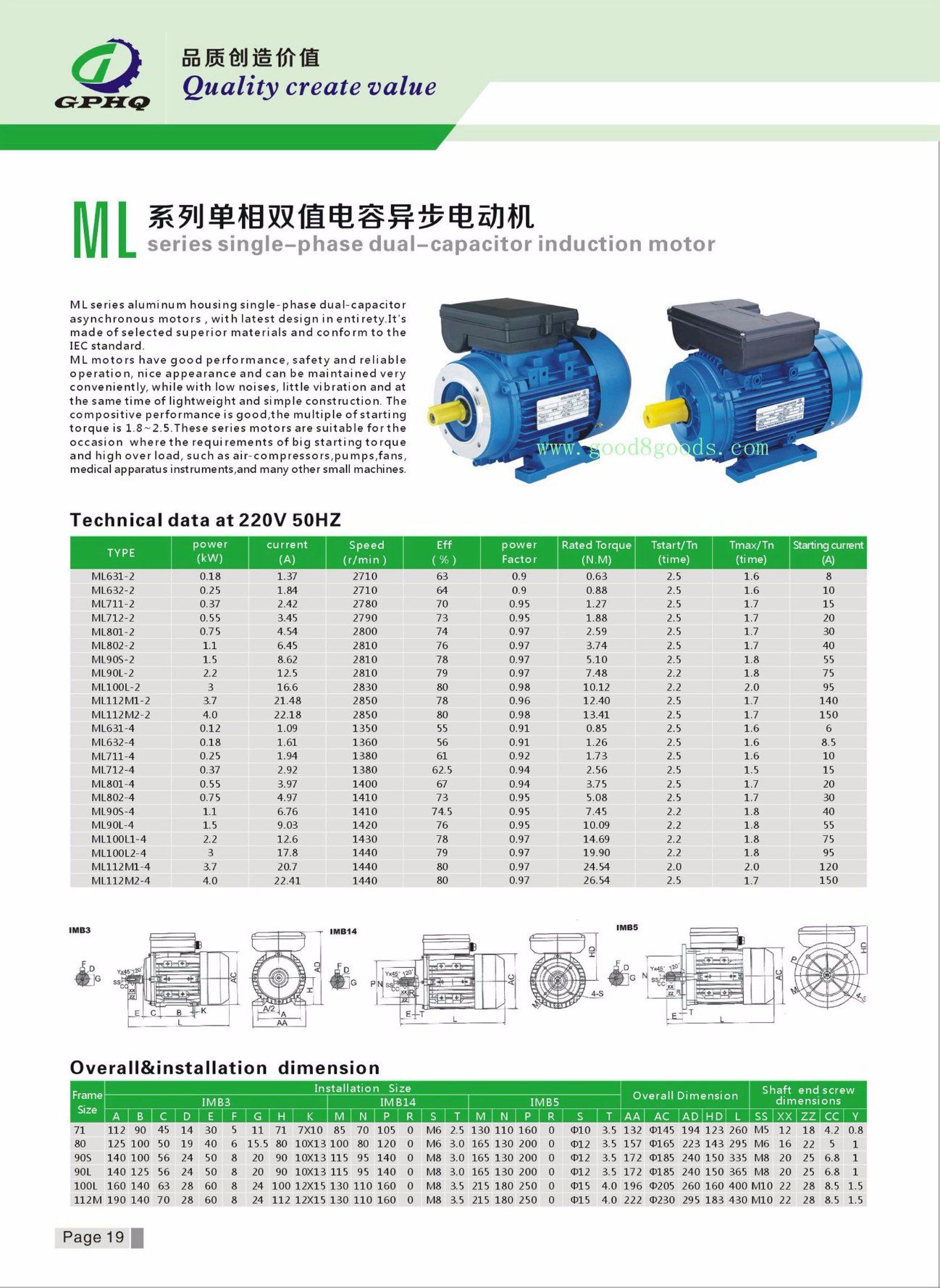

If there is any question, please don't hesitate to contact with me (EVA), U can send us your inquiry. And you will get response in 1 working day. MOTOR CATALOGUE :

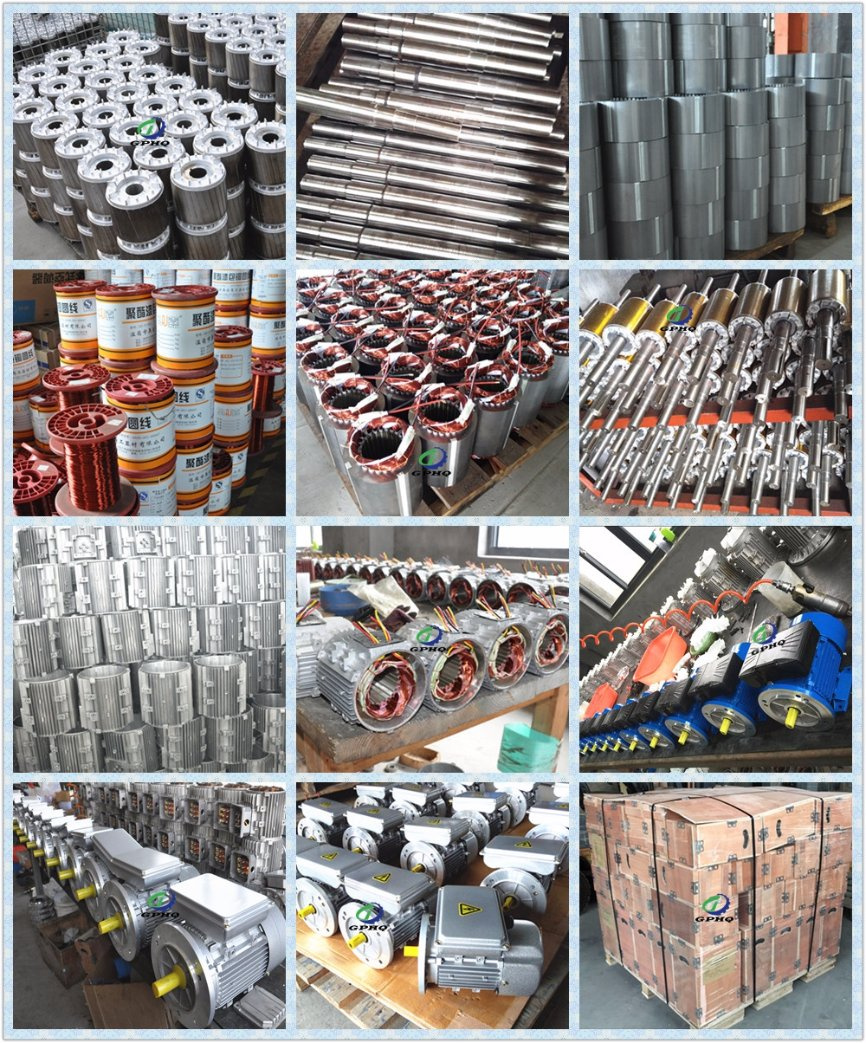

PRODUCING PROCESS:

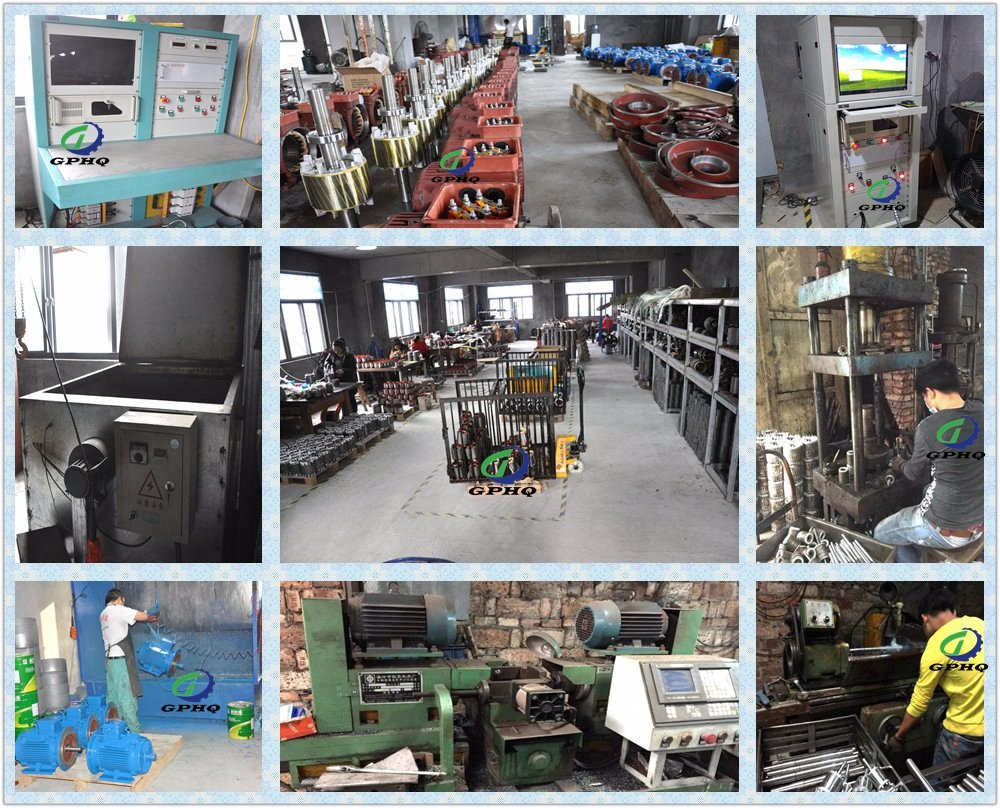

WORKSHOP EQUIPMENT:
CONTACT US :
FAQ
1, Q:what's your MOQ for ac synchronous motor ?
A: 5pc is ok for each type electric motor
2, Q: What about your warranty for your three phase motor?
A: one year ,but except man-made destroyed
3, Q: which payment way you can accept ?
A: TT, western union .
4, Q: how about your payment way ?
A: 100%payment in advanced less $5000 ,30% payment in advanced payment , 70% payment before sending over $5000.
5, Q: how about your packing of induction motor ?
A: carton or plywood case ,if less one container , we can pack all goods with pallet for small size motor
6, Q: What information should be given, if I buy electric ac motor from you ?
A: rated power, speed or pole ,type ,voltage , mounting way , quantity , if more is better ,
