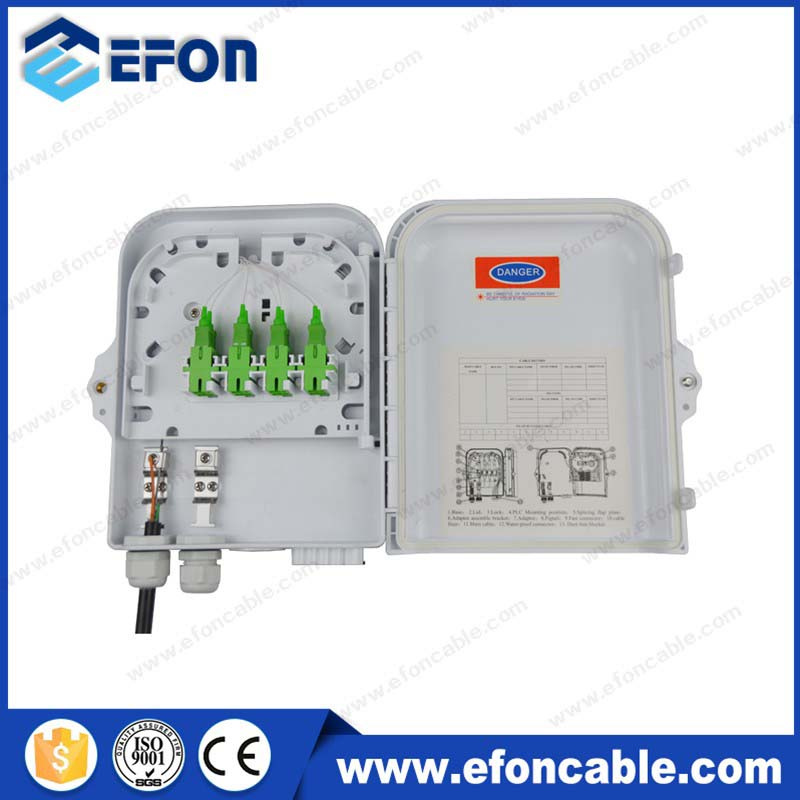

Gpon ONU Fiber Optical Splitter 10 Pair FTTH Terminal Box (FDB-08E)

Name: Gpon ONU Fiber Optical Splitter 10 Pair FTTH Terminal Box (FDB-08E)
Brand: all-electronics-online.com
SKU: 772088505
Availability: InStock
Rating: 4.8 (54 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

GPON ONU fiber optical splitter 10 pair ftth terminal box (FDB-08E)

ftth terminal box Product Description

Outdoor Fiber Optic Distribution Box is widely used as a termination point for feeder cable to connect with drop cable.
The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and menagemant for FTTX network.Can be used indoor or outdoor.

ftth terminal box

fiber optic distribution box

outdoor cable distribution box

fiber optic distribution box Features:

ABS material used ensures the body strong and light.
Water-proof design for outdoor uses.

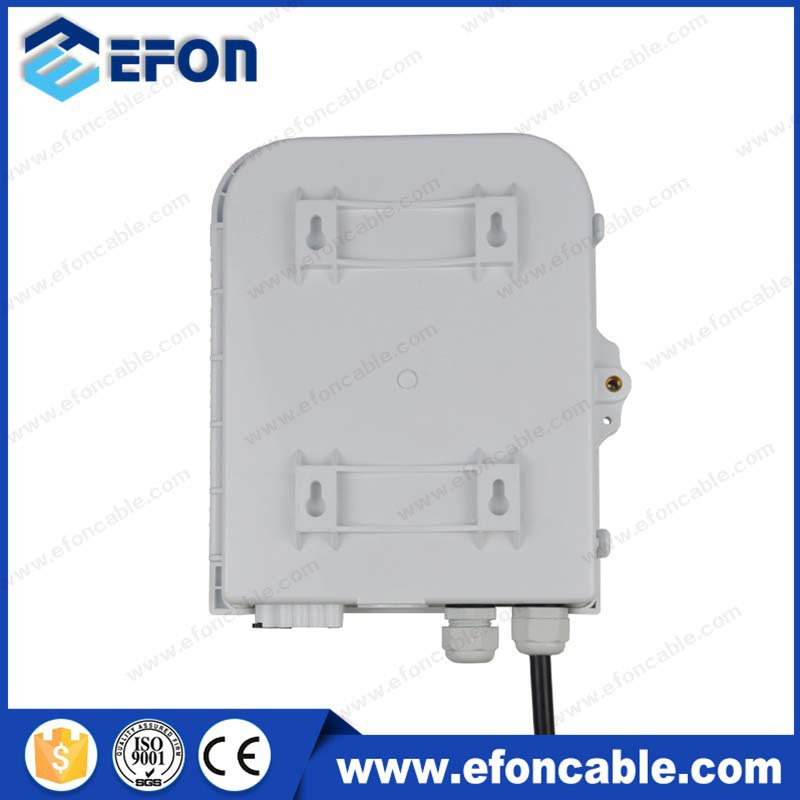

Easy installations: Ready for wall mount - installation kits provided.
Adapter slots used - No screws and tools needed for installing adapters.
Ready for splitters: designed space for adding splitters.
Space saving! Double-layer design for easier installation and maintenances:
Lower layer for splitters and over length fiber storage.
Upper layer for splicing, cross-connecting and fiber distribution.
Cable fixing units provided for fixing the outdoor optical cable.
Protection Level: IP65.
Accommodates both cable glands as well as tie-wraps
Lock provided for extra security

fiber optic distribution box Dimensions and Capability:

Dimensions: 230mm x 180mm x 55mm (W x H x D)
Weight: 0.56KG
Accommodates splitters and up to 8 SC simplex adapters
Max allowance for entry cables: max diameter 16mm, up to 2 cables
Max allowance for exit cables: up to 8 simplex cables

fiber optic distribution box Operation conditions:

Temperatures:-40ºC -- 60ºC
Humidity:93% at 40ºC
Air Pressure:62kPa - 101kPa

fiber optic distribution box Package includes:

Terminal box	1 unit
Keys for lock	2 keys
Wall mount installation accessories	1 set

fiber optic distribution box ftth terminal box

splitter box

ftth mini fiber optic terminal box

fiber optic distribution box We also supply following accessory:
LC/PC/APC Simplex Duplex
SC/PC/APC Simplex Duplex
FC ST LC SC Adapter

Any questions please contact me with no hesitate, I'm promise any of your inquiry will get our prompt attention & reply in 2 hours. Hope we will get an opportunity to serve your esteemed company.

FAQ

Payment

For large orders, T/T , L/C, and E-credit lines are all offered.

For small orders, credit-cards are accepted.

Shipping & Delivery

We will send the products within 10 days.

We ship small batched by air, or large orders by container.

Return and Warranty:

All products have been tested before ship out

All products have 5 years warranty. If there is no man-made problem ,we will replace or repair for you freely.

We own the best after-sale service. If any problems happen ,our team will do our best to solve for customers.

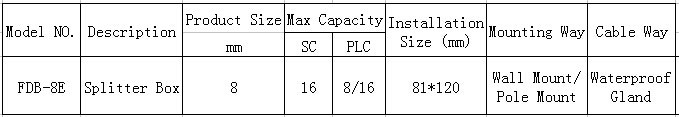

Prod Model:	FDB-08E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
10 Pair Terminal Box Dimension:	23018055(mm)
Weight:	3.22kg
Outer Package Size:	530410385(mm)
Installation Method:	Wall-Mounted or Pole Mount.
Capacity:	8 Port
Junciton Box Material:	PC, ABS Optical Splitter
Certification:	ISO9001:2000
Working Temperature:	-40+80ºC

We produce fiber optic cable, patch cord, pigtail, optical coupler, PLC splitter and other passive components for FTTX.

We offer products of a consistent quality. Our QC team monitors the manufacturing process and inspects all products before shipment.

We have a professional customer service team, which is always ready to consult you on all the issues related to our products.

Our Principles:
* Full customer satisfaction
* Commitment to high-quality service
* Relationships based on mutual trust and respect
* Long-term cooperation rather than one time profitable sale

EFON CABLE is your reliable partner in mainland China!

We were established in 2001 as a manufacturer of fiber optic cable. Since then we have been growing to become a leading Chinese manufacturer and exporter of fiber optic products around the globe.
