LSZH Jacket Self-Supporting Outdoor FTTH Cable 2 Core Optic Fiber Cable FTTH

Name: LSZH Jacket Self-Supporting Outdoor FTTH Cable 2 Core Optic Fiber Cable FTTH
Brand: all-electronics-online.com
SKU: 682621932
Availability: InStock
Rating: 4.6 (53 reviews)

Price:	US $ 50-100/Meter
Trade Terms:	FOB,CIF
Min Order:	2000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJYXFCH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Structure:	Tight Buffer Self-Support FTTH Cable
Applications:	Outdoor Aerial
Fiber Options:	G657A1, G657A2, G652D
Fiber Count:	1-4
Strength Member:	1.0mm Steel Wire or FRP
Installation Tensile:	600n
Material Of Jacket:	UV and Flame Resistant LSZH
Mesenger Member:	1.0/1.2 mm or 7*0.33 Steel Wire
Certifications:	ISO9001/Ce/RoHS
Warranty (Year):	2
Application:	Communication
Type:	Single-mode Fiber
Certification:	CCC
Connection Structure:	Other
Core:	2-24
Brand:	Efon
Sheath Material:	Lszh/PE Sheath/Flame Retardant Sheath/Anti-Rodent

Product Description

Description

Self-supported flat drop cable. The cable cross section is a fig.8 made a steel wire strength member.

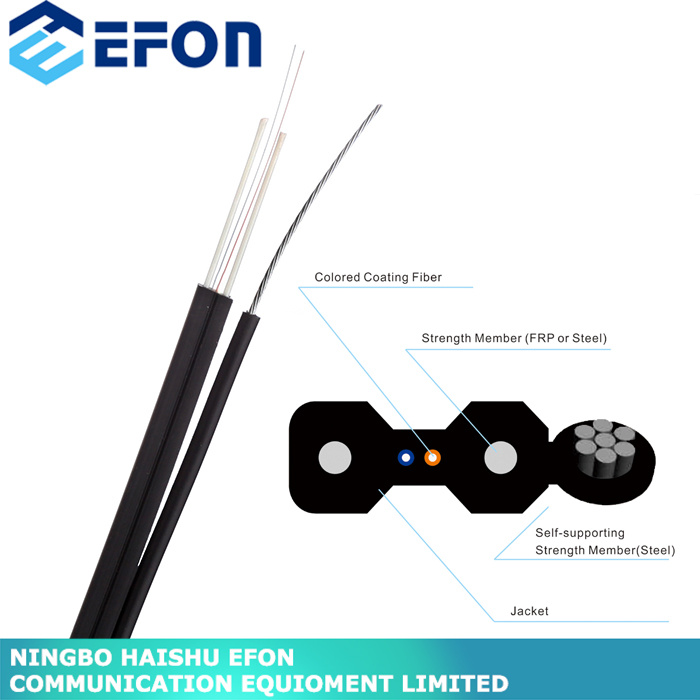

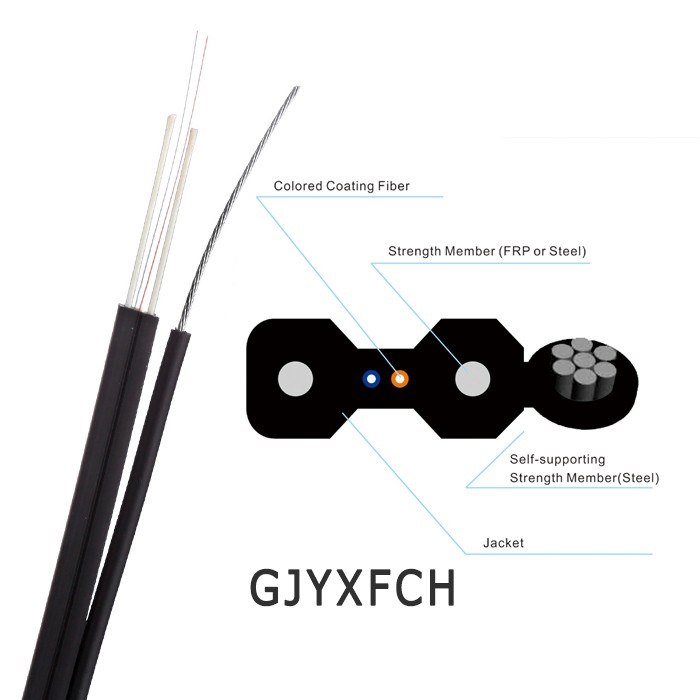

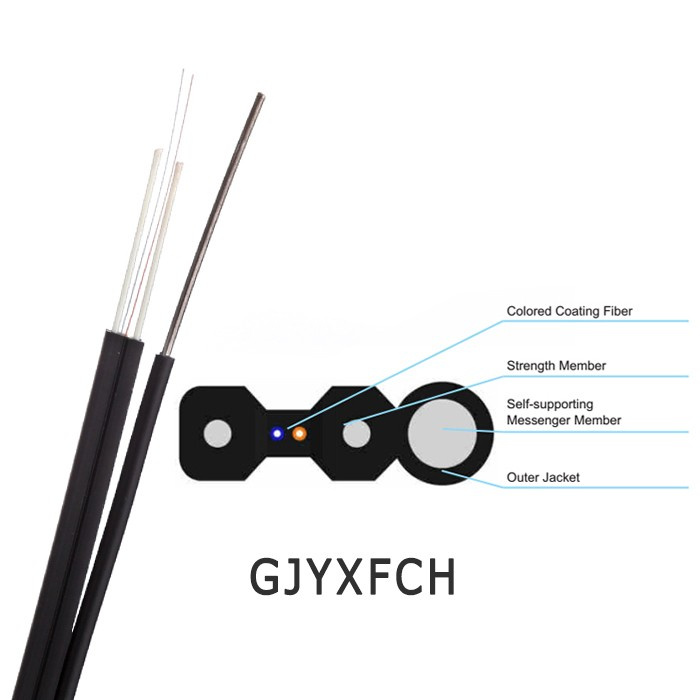

Cable Structure

Product Construction
Fiber:
250µm colorfiber
Fiberglass reinforced plastic (FRP) or Steel Wire.

Self-supported Member:
Steel Wire

Outer Jacket:
UV and Flame resistant LSZH

Features
Compact, soft, flexible, easyto install.

Applications

Used in access network oras access cable from outdoorto indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.

Optical Characteristics

Fiber Type	Attenuation		Overfilled launch Bandwidth	Effective Modal Bandwidth	10GB/S Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5
50/125		3.0/1.0	≥500/500			30
62.2/125		3.0/1.0	≥200/500			30
OM3		3.0/1.0	≥1500/500	≥2000	≥300	30
OM4		3.0/1.0	≥3500/500	≥4700	≥550	30
B1-OM3		3.0/1.0	≥1500/500	≥2000	≥300	7.5
B1-OM4		3.0/1.0	≥3500/500	≥4700	≥550	7.5

Structure and Technical Specifications

Fiber Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength (N/100mm)		Crush Resistance (N/100mm)
			Short Term	Long Term	Short Term	Long Term
1-4	5.2*2.0	18	600	300	2200	1000
6-12	3.0*9.0	27	1200	600	1100	500

Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for

more information.

2.The cable core use the colored coating fiber of 250μm.

3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used

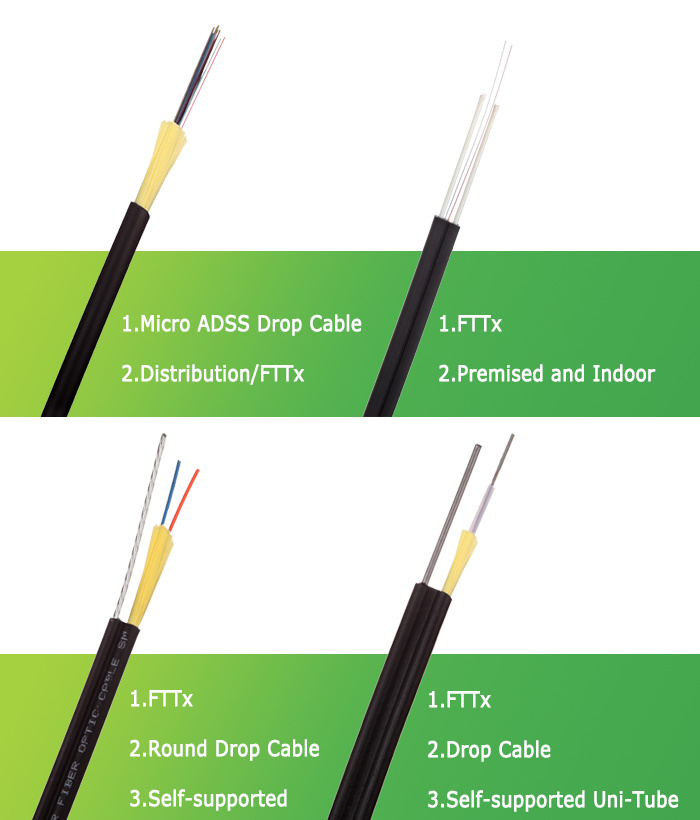

You May Like

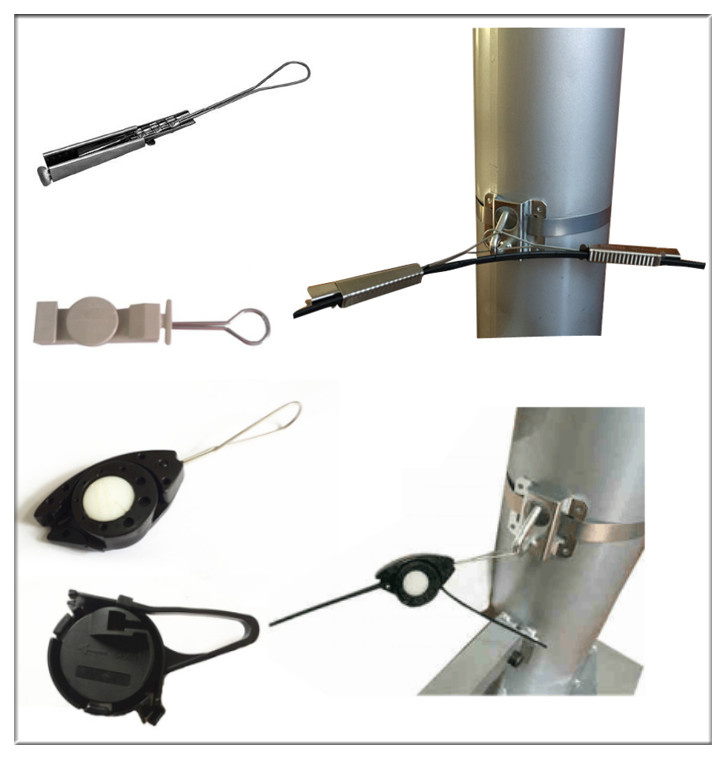

You May Need : Cable Fitting for FTTX Drop Cable
